Product Name:

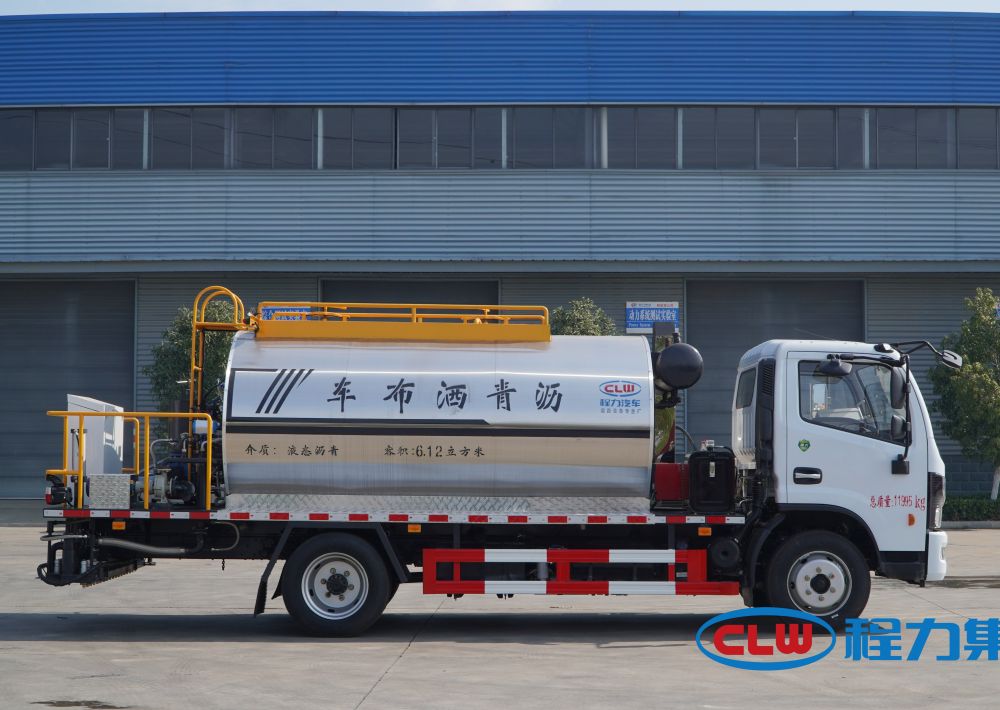

Chengli CL5120GLQ6LS asphalt distributor

Dimensions:

7320,7220×2350,2275×2900,3050(mm)

Emission standard:

National VI

Cargo box size:

××(mm)

Gross Vechile Weight (GVW):

11995(Kg)

Approach/departure angle:

21/8,21/6(°)

Rated Payload:

5315,5250,5885,5820(Kg)

Front/ rear overhang:

1130/2390,1180/2340,1130/2290,1180/2240(mm)

Curb weight:

6550,5980(Kg)

Maximum speed:

103(km/h)

Chassis Parameters

Fuel type:

Diese

Chassis model:

EQ1125SJ8CDC

Number of axles:

2

Front wheel tread:

1745,1802,1820,1842,1765,1890(mm)

Wheelbase:

3800,3950,4050,4100,4400,3600,4700(mm)

Rear wheel tread:

1630,1650,1800,1720(mm)

Number of passengers in the cab:

(people)

Number of springs:

8/10+7,12/12+9

Number of tires:

6(pcs)

Axle load:

4350/7645

Tire specifications:

245/70R19.5,8.25R20,245/70R19.5 16PR,8.25R20 16PR,8.25R20   14PR,255/70R22.5 16PR

Engine Parameters

Engine Model:

Engine Manufacturer

Displacement(ml)

Power(kw)/horsepower(PS):

YCY30165-60

Guangxi Yuchai Machinery Co., Ltd.

2970

121/164

Q28-130E60

Anhui Quanchai Power Co., Ltd.

2800

96/130

D30TCIF1

Kunming Yunnei Power Co., Ltd.

2977

125/170

CY4SK361

Dongfeng Chaoyang Chaochai Power Co., Ltd.

3856

125/170

NV30-C6D

Dongfeng Chaoyang Chaochai Power Co., Ltd.

2968

120/163

ZD30D16-6N

Dongfeng Light Engine Co., Ltd.

2953

120/163

D25TCIF1

Kunming Yunnei Power Co., Ltd.

2499

110/149

YCY24140-60

Guangxi Yuchai Machinery Co., Ltd.

2360

103/140

CY4SK161

Dongfeng Chaoyang Chaochai Power Co., Ltd.

3856

135/183

CY4SK261

Dongfeng Chaoyang Chaochai Power Co., Ltd.

3856

125/170

NV30-C6G

Dongfeng Chaoyang Chaochai Power Co., Ltd.

2968

115/156

D4.0NS6B185

Dongfeng Cummins Engine Co., Ltd.

4000

136/184

CA4DD2-18E6-30

China First Automobile Group Co., Ltd.

3230

132/179

YCS04190-68

Guangxi Yuchai Machinery Co., Ltd.

4156

140/190

D40TCIF1

Kunming Yunnei Power Co., Ltd.

4052

135/183

D4.0NS6B195

Dongfeng Cummins Engine Co., Ltd.

4000

143/194

D4.0NS6B170

Dongfeng Cummins Engine Co., Ltd.

4000

125/170

CY4BK261

Dongfeng Chaoyang Chaochai Power Co., Ltd.

3707

100/136

H30-165E60

Anhui Quanchai Power Co., Ltd.

3000

120/163

D4.0NS6B160

Dongfeng Cummins Engine Co., Ltd.

4000

118/160

NV30-C6C

Dongfeng Chaoyang Chaochai Power Co., Ltd.

3093

120/163

Q28-156E60

Anhui Quanchai Power Co., Ltd.

2800

115/156

CA4DB1-14E68

China First Automobile Group Co., Ltd.

2207

100/136

CA4DB2A16

China First Automobile Group Co., Ltd.

2440

118/160

Other:

1. Only the chassis with 3800mm wheelbase, 1130mm and 1180mm   front overhang is used; 2. The vehicle is widely used in the construction of   high-grade highway asphalt pavement spreading operations. The main special   equipment is asphalt tank, asphalt spraying system, total tank capacity: 6.12   cubic meters, effective volume: 5.83 cubic meters, tank size (length × long axis × short axis) (mm): 3400 × 2050 × 1580, tank insulation thickness is 70mm; when the square   tank appearance is selected, the tank size (length × width × height) (mm): 3500 × 2000 × 1450, tank insulation thickness is 50mm; medium: liquid   asphalt, density: 900 kg/cubic meter; 3. The side protection material is   Q235, welded connection; optional aluminum alloy side protection, bolted   connection; rear protection is replaced by a special device, the lower edge   is 320mm above the ground; 4. The cab is optional with the chassis, ABS   model: ABS/ASR-24V-4S/4M, ABS manufacturer: Xiangyang Dongfeng Longcheng   Machinery Co., Ltd. 5. Optional appearance structure, appearance length and   front/rear overhang (mm) correspondence: 7320/1130/2390, 7320/1180/2340,   7220/1130/2290, 7220/1180/2240; when the curb weight is 6550kg, the   corresponding load capacity is: 5315 (2 people), 5250 (3 people); when the   curb weight is 5980kg, the corresponding load capacity is: 5885 (2 people),   5820 (3 people). Optional step ladder style, optional curved fender.
