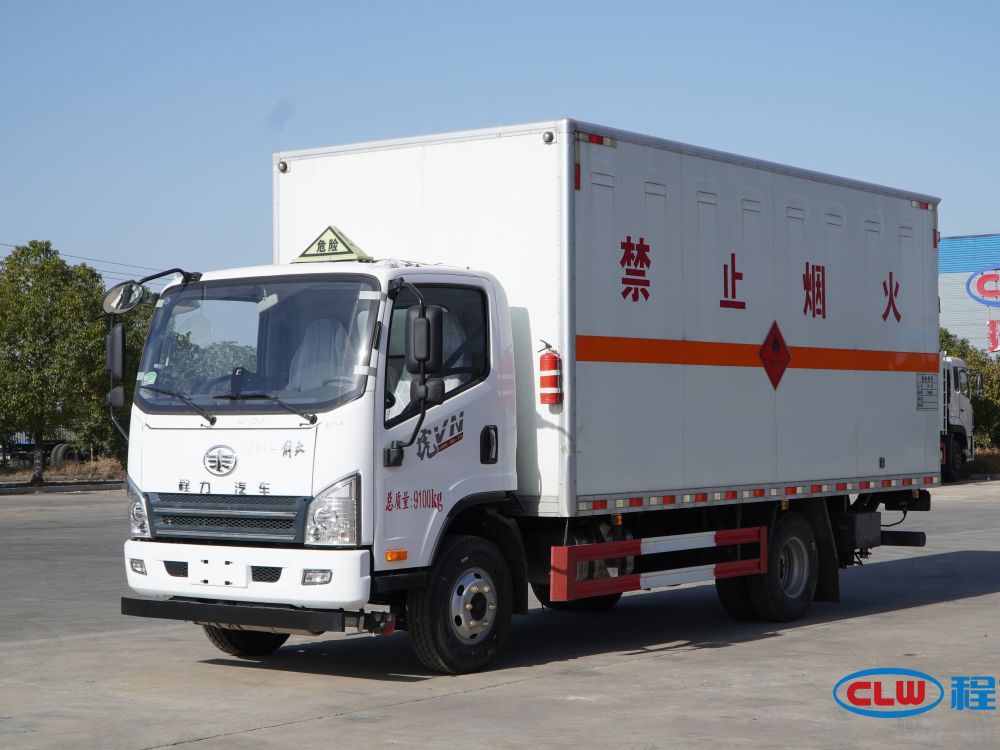

Main technical parameters of Chengli CL5091XRQ6BXW flammable gas van transporter | ||||||
Product Name: | Chengli CL5091XRQ6BXW flammable gas van transporter port vehicle | Dimensions: | 6995,6615,6315×2450,2400,2350,2300,2250,2200,2150,2100×3320,3180,3160,3080,3060,2980,2960,2930,2910(mm) | |||
Emission standard: | National VI | Cargo box size: | 5150,4800,4500×2300,2200,2100,2000×2200,2000,1900,1800,1750(mm) | |||
Gross Vechile Weight (GVW): | 9100(Kg) | Approach/departure angle: | 13/12,13/14,13/15(°) | |||
Rated Payload: | 4925,5055,5165(Kg) | Front/ rear overhang: | 1115/2280,1115/1900,1115/1600(mm) | |||
Curb weight: | 3980,3850,3740(Kg) | Maximum speed: | 79(km/h) | |||
Chassis Parameters | ||||||
Fuel type: | Diese | Chassis model: | CA1091P40K61L2BE6A84 | |||
Number of axles: | 3 | Front wheel tread: | 1580,1601,1649,1654,1664,1668,1704,1714,1761,1771(mm) | |||
Wheelbase: | 3600(mm) | Rear wheel tread: | 1480,1494,1525,1539,1565,1579,1590,1604,1740,1754,1640(mm) | |||
Number of passengers in the cab: | (people) | Number of springs: | 2/3,3/3+1,3/3+2,3/3+3,3/4+3,3/4+4,3/7+3,3/7+9,3/10+3,3/10+4,5/7+6,7/7+3,7/7+9,7/10+3,7/10+4,10/10+9 | |||
Number of tires: | 6(pcs) | Axle load: | 3300/5800 | |||
Tire specifications: | 7.50R16LT 16PR | |||||
Engine Parameters | ||||||
Engine Model: | Engine Manufacturer | Displacement(ml) | Power(kw)/horsepower(PS): | |||
CA4DB1-14E68 | China First Automobile Group Co., Ltd. | 2207 | 100/136 | |||
CA4DB1A14E68 | China First Automobile Group Co., Ltd. | 2207 | 100/136 | |||
Other: | ||||||
This vehicle is suitable for transporting dangerous goods. It is a dangerous goods transport vehicle. The top of the compartment is closed and cannot be opened. It only uses a chassis with radial tires and ABS. The front wheels of the vehicle are equipped with disc brakes, front exhaust pipes, and a speed limiter. The speed limit is 79km/h. A driving recorder with satellite positioning function is installed. The safety device is an electrostatic conductive belt to prevent static electricity. Protective material: Q235A carbon steel, connection method: the left and right sides and the rear lower protection are both welded, the rear protection section size (mm): 100×50, the rear protection height from the ground (mm): 420; transport flammable gases with independent container packaging, transport non-flammable and non-toxic gases with independent container packaging. Category number: 2.1, 2.2; when the medium transported by the vehicle is flammable gas of item 2.1, the vehicle uses a "flammable gas" sign, and when the medium transported is non-flammable and non-toxic gas of item 2.2, the vehicle uses a "non-flammable gas" sign. The steering wheel of the vehicle is equipped with a tire blowout emergency protection device. The fuel consumption values (L/100km) corresponding to the engine CA4DB1-14E68 and CA4DB1A14E68 are: 16.42 and 16.68 respectively. ABS anti-lock braking system manufacturer/model: 1. Guangzhou Ruili Kemi Automotive Electronics Co., Ltd./CM4XL-4S/4M; 2. Zhejiang Wanan Technology Co., Ltd./VIE ABS-II, the vehicle can be equipped with a direct power supply ETC on-board device. When the tailgate is selected, the rear lower protection material: Q235B carbon steel, connection method: welding and bolt connection, rear lower protection section size (diameter): Φ120 (mm), ground clearance: 450mm; tailgate: The horizontal length of the stowed state is 280mm, and the weight of the tailgate is 450kg. The side of the compartment is optional for the door type and position, optional without side door, optional corrugated board structure, and the position and type of the shutters on the compartment. The appearance of the cab and the gas cylinders, fuel tanks, batteries and urea tanks on both sides of the vehicle body can be selected according to the chassis.
