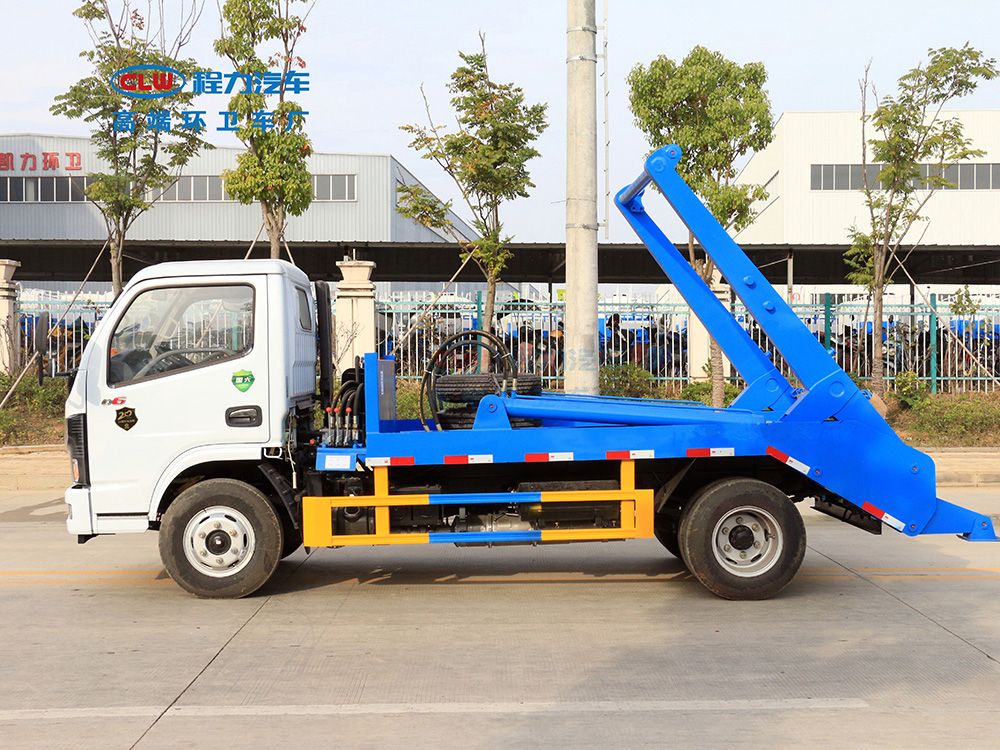

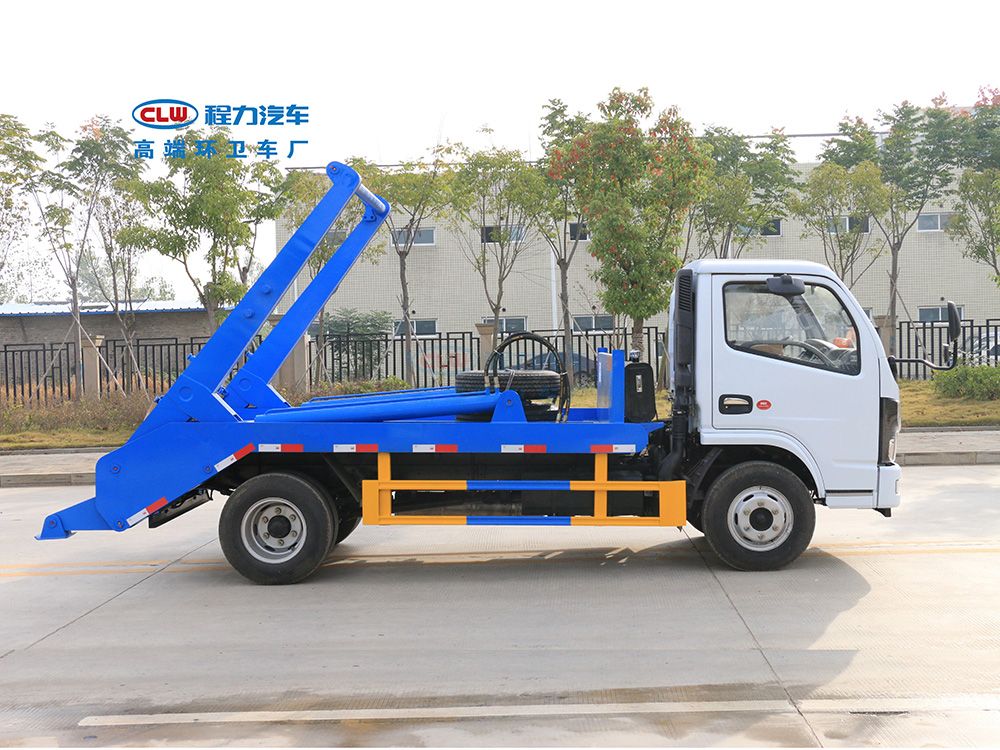

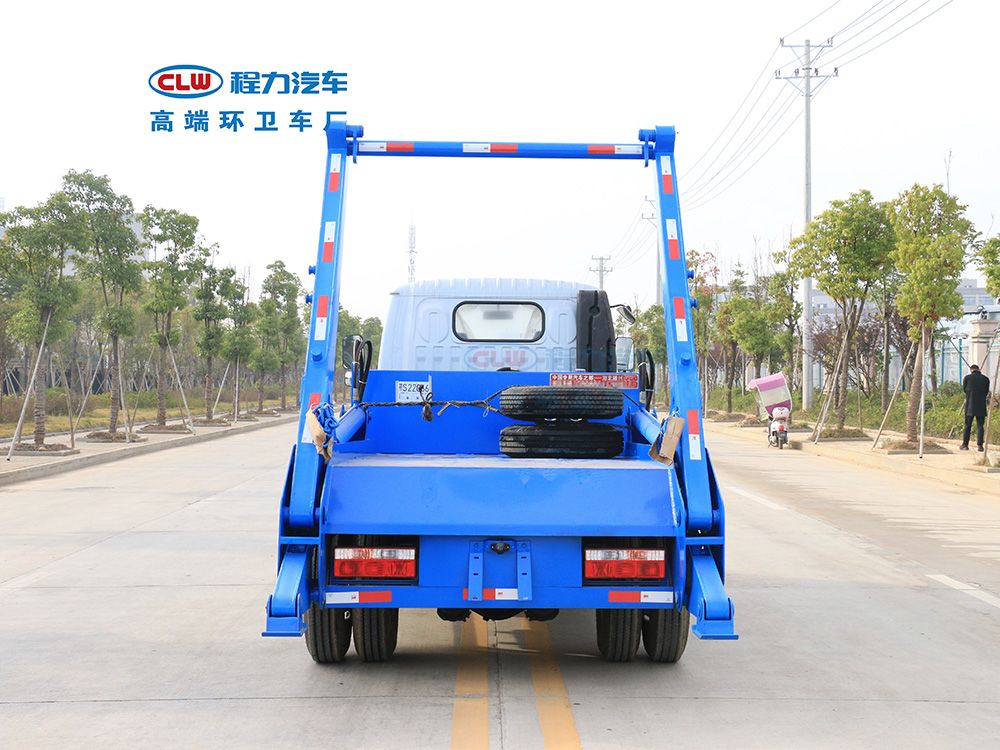

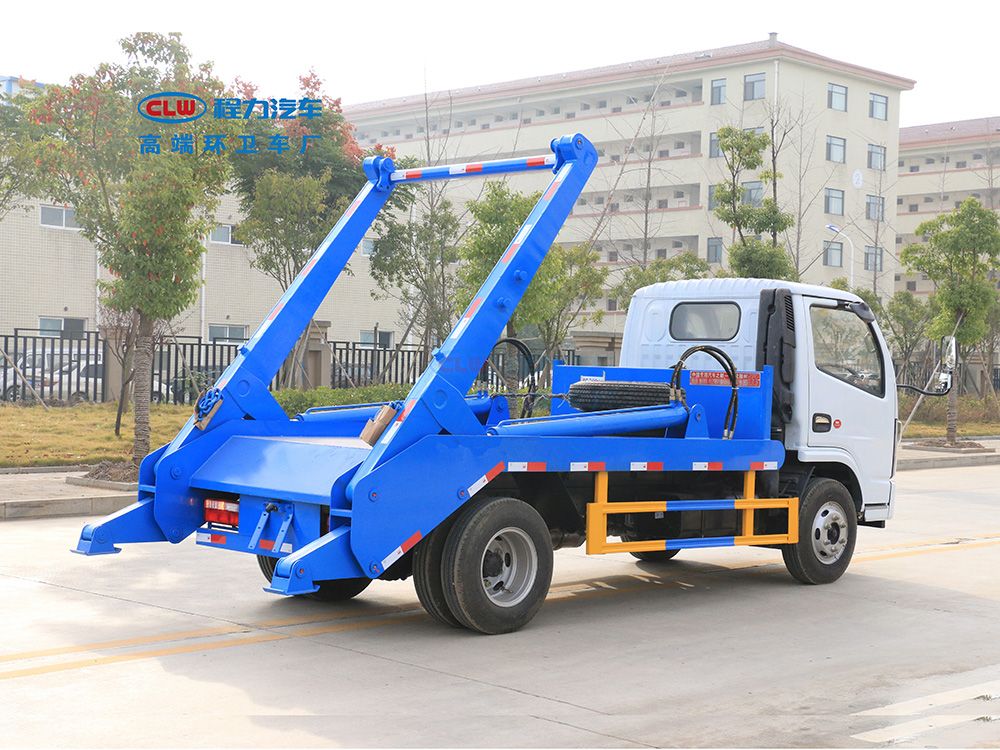

| Product Name | Brand Chengliwei Skip Loader Garbage Truck CLW5070ZBS6 |
| Total mass (kg) | 7360 | Tank volume (m3) |
|
| Rated mass (kg) | 3,280 | Dimensions (mm) | 5995×2000×2910 |
| Curb weight (kg) | 3,950 | Cargo size (mm) | XX |
| Number of passengers(person) | 2 | Maximum load of saddle (kg) |
|
| Approach/Departure Angle (°) | 27.7/13 | Front /rear suspension(mm) | 1055/1632 |
| Axle load(kg) | 2640/4720 | Maximum speed (km/h) | 110 |
| 【CHASSIS TECHNICAL PARAMETERS】 |
| Chassis model | EQ1075SJ3CDF | Chassis Name | Class II cargo chassis |
| Chassis Brand | Dongfeng | Manufacturer | Dongfeng Motor Co., Ltd. |
| Number of Axles | 2 | Number of tires | 6 |
| Wheelbase(mm) | 3308 | Tire specifications | 7.00R16,7.50R16 |
| Number of leaf springs | 6/6+5,3/3+3,5/4+3,6/4+3,6/5+2,6/3+3,3/6+5,3/3+2,2/2 | Front track(mm) | 1525, 1519, 1503, 1613 |
| Fuel type | Diesel Oil | Rear Track(mm) | 1498, 1516, 1586, 1670, 1650, 1800 |
| Emissions according to standards | GB3847-2005,GB17691-2018; Euro Ⅵ |
| Engine Model | Engine Manufacturer | Engine Displacement（ml) | Engine Power (kw/ps) |
| CY4BK461 | Dongfeng Chaoyang Chaochai Power Co., Ltd. | 3707 | 95/129 |
| CA4DB1-11E6 | China FAW Group Co., Ltd. | 2207 | 81/110 |
| D20TCIF1 | Kunming Yunnei Power Co., Ltd. | 1999 | 93/126 |
| Q28-130E60 | Anhui Quanchai Power Co., Ltd. | 2800 | 96/130 |
| H20-120E60 | Anhui Quanchai Power Co., Ltd. | 2000 | 90/122 |
| CA4DB1-13E6 | China FAW Group Co., Ltd. | 2207 | 95/129 |
| YCY24140-60 | Guangxi Yuchai Machinery Co., Ltd. | 2360 | 103/140 |
| Q23-115E60 | Anhui Quanchai Power Co., Ltd. | 2300 | 85/115 |
