Drive Type

4 X 2 (RHD)

WEIGHT

Payload

kg

3000

Complete Kerb Mass

kg

4000

Gross Vehicle Weight

kg

7000

DIMENSIONS

Overall Length

mm

5800

Overall Width

mm

2150

Overall Height

mm

2550

Wheel Base

mm

2800

Max. Speed

km/h

90

Ground Clearance

mm

180

Grade-Ability

%

30

Turning Radius

m

5.3

ENGINE

Brand

YUNNEI

Model

4100QB-2

Country Of Origin

CHINA

 Manufacturer

KUNMING YUNNEI POWER CO., LTD

Engine Type

Four-cylinder in-line, four-stroke, water-cooled, naturally aspirated direct injection diesel engine.

Power

kW

66@3000 rpm

Torque

Nm

230@2200 rpm

Displacement

cc

3300

Fuel Type

Diesel

Fuel tank capacity

L

80

Emission Standard

Euro - II

CHASSIS

Feature

Constructed with a robust, rigid ladder frame, the chassis utilizes longitudinal and cross members to effectively resist twisting.

Chassis Model

CL10602R

Chassis Brand

CHENGLI WEI

 Manufacturer

CHENGLI SPECIAL AUTOMOBILE CO., LTD

Country Of Origin

China

TRANSMISSION

Control Type

Manually operated

Gear Shift

5 (Five) Forward and 1 (One) reverse

CLUTCH SYSTEM

Type

Hydraulically operated, Single Dry plate

Diameter

mm

255

BRAKING SYSTEM

Braking Mode

Double circuit air brake system

Adjustment Arm Type

Manual adjustment arm

Front Brake

Drum

Rear Brake

Drum

Parking Brake

Transmission mounted, Cable operated, mechanical linkage

SUSPENSIONS

Front Suspension

Pcs

8

Rear Suspension

pcs

9+5

Functioning

Semi-elliptical alloy steel leaf springs, hydraulic double acting telescopic shock absorbers

STEERING

Steering Type

Right hand drive (RHD), Power Steering

AXLES

Front Axle

I-section beam Axle, Rated payload: 2.0T

Rear Axle

Full-floating axle, Rated Payload: 4.0T

Rear Axle Ratio

6.166

Tyre (Standard)

6 +1 (Spare) tires; 7.00R16

TANK CAPACITY

Garbage Tank Capacity

(M³)

2

Garbage Tank Material

Carbon Steel

Water Tank Capacity

(M³)

1

Water Tank Material

Carbon Steel

DUST TANK

Capacity

M³

2

Material

Carbon steel

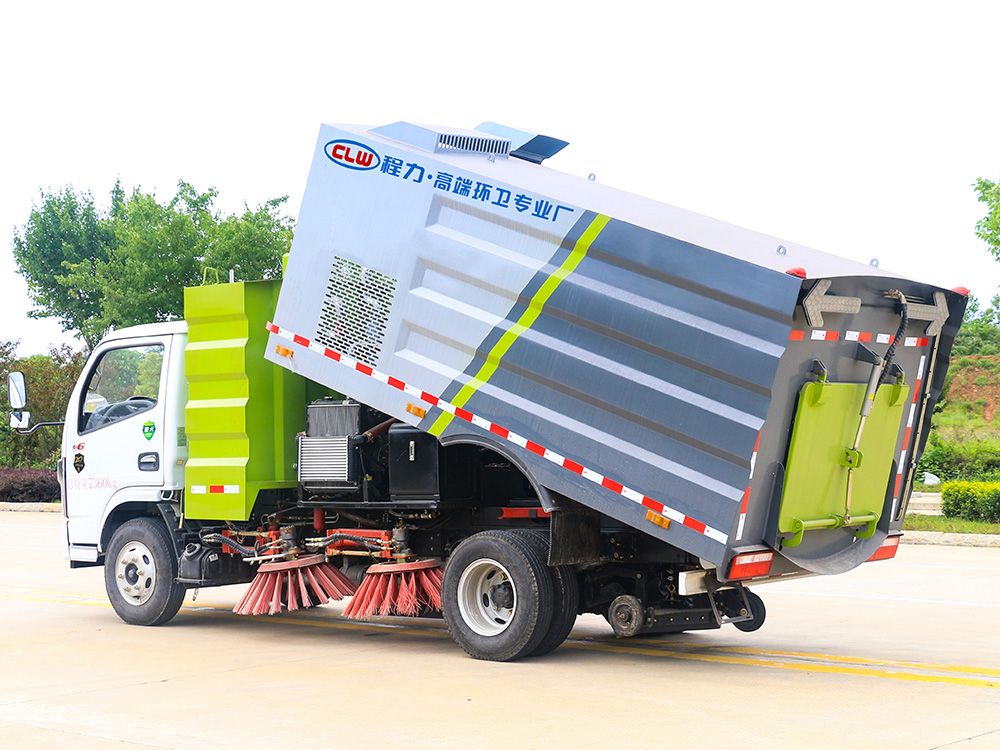

Dumping Angle

Degree

45

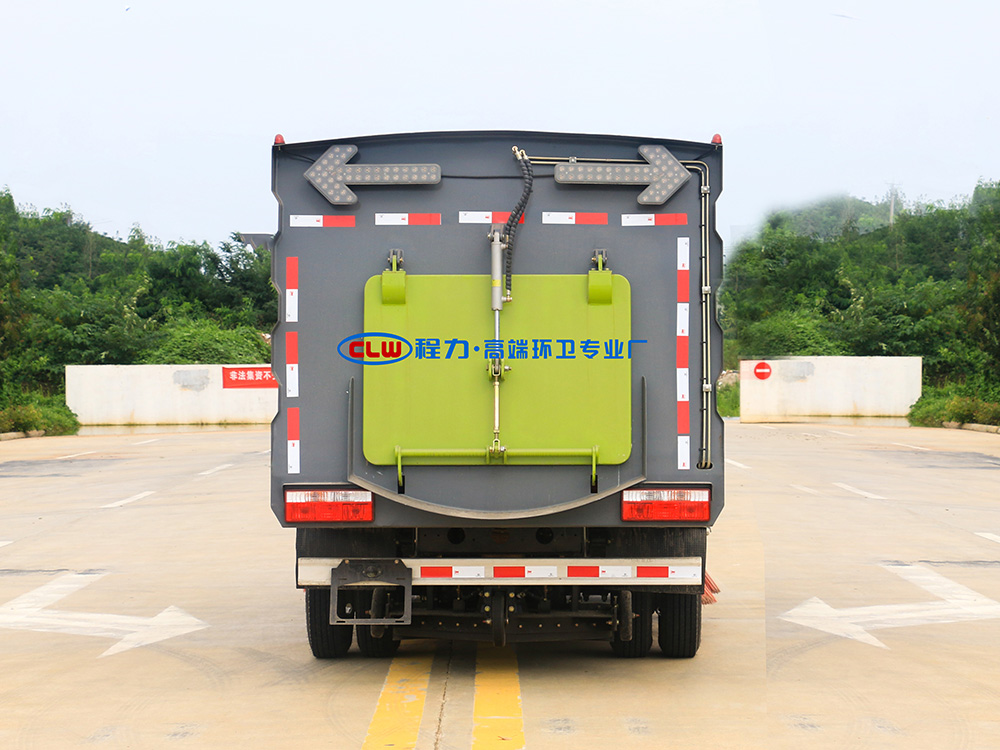

Rear Door Opening Angle

Degree

80

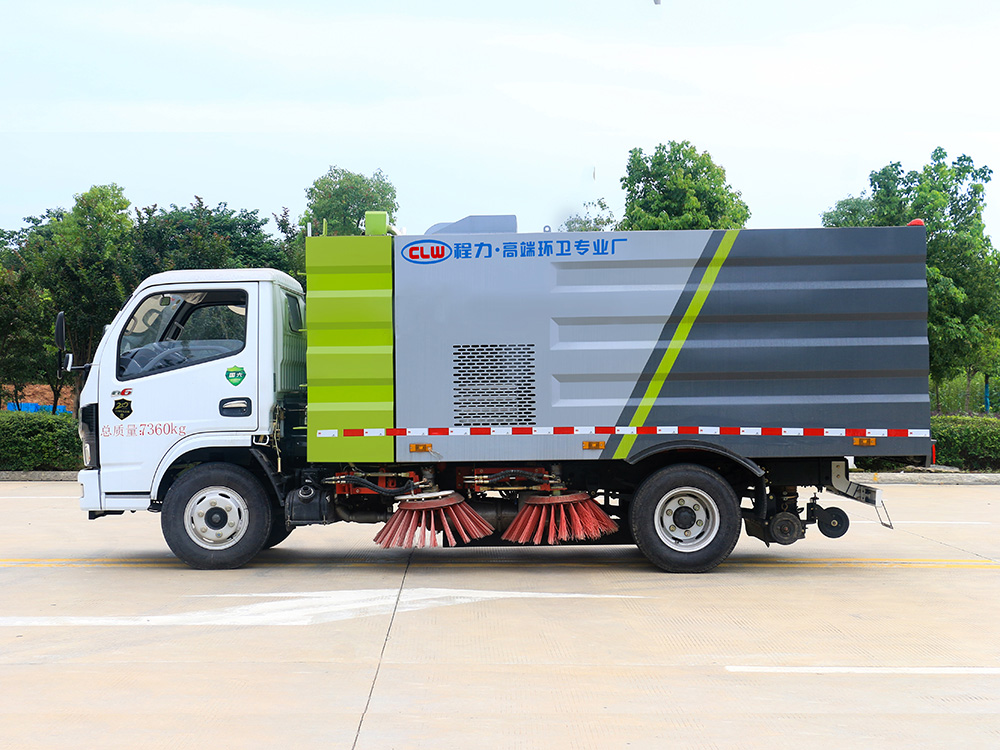

SWEEP SYSTEM

Number Of Brushes

pcs

4

Brush Opening Diameter

(mm)

Φ800

Layout

V-Shaped

Cleaning Width

M

2-2.4

Cleaning Capacity

M²/h

40,000

Sweep Disc

Title angle Adjustment

Front Sweep Disc

Degree

Forward tilt 5-15 outward

Rear Sweep Disc

Degree

Forward tilt 5-10 inward

Sweeping Speed

Km/h

5-20

Sweeping Speed

Km/h

15-20

Cleaning Component

sweeping disc bracket, sweeping disc, oil cylinder, oil pipe, connecting rod, adjusting rod, hydraulic motor, etc.

Cleaning efficiency

≥96%

SUCTION SYSTEM

Type

The rear suction cup features a built-in spray dust reduction bracket, a single suction port, hydraulic control, and spring suspension

Suction Particle Size

mm

120

Ground Clearance

mm

The suction nozzle maintains a ground clearance of 5-8

Cab Control System

All vehicle operations are controlled from the driver's cab

Power Take-Off

PTO

Factory Standard PTO

AUXILIARY ENGINE

Engine Output

kW

75

Brand

YUCHAI

Fuel Type

Diesel, shares diesel tank with chassis
