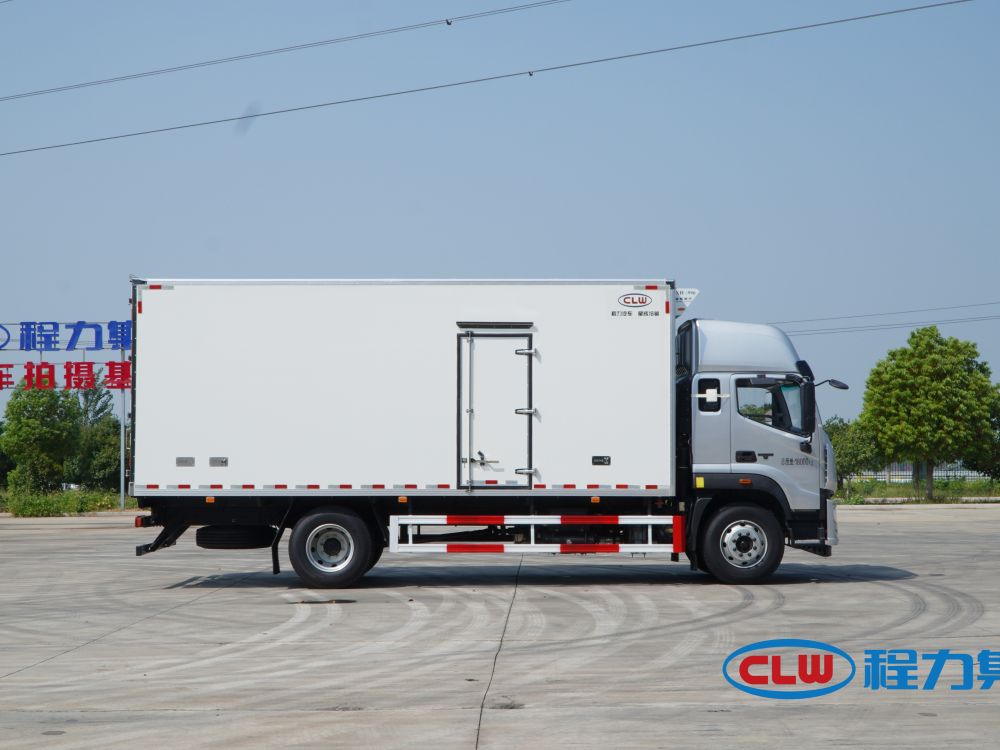

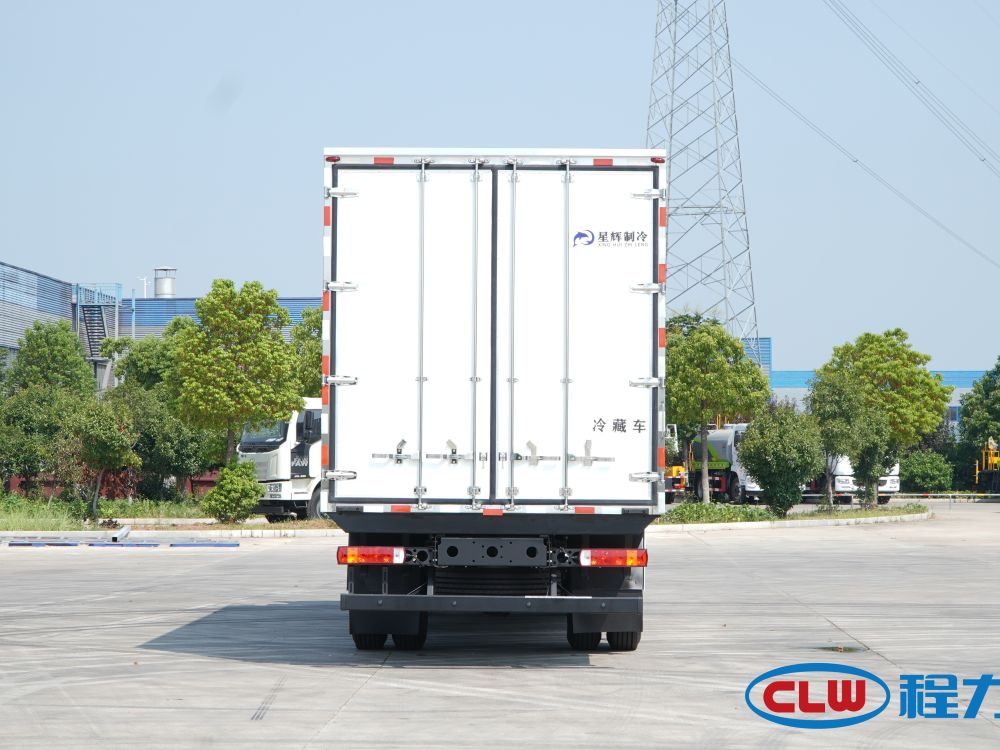

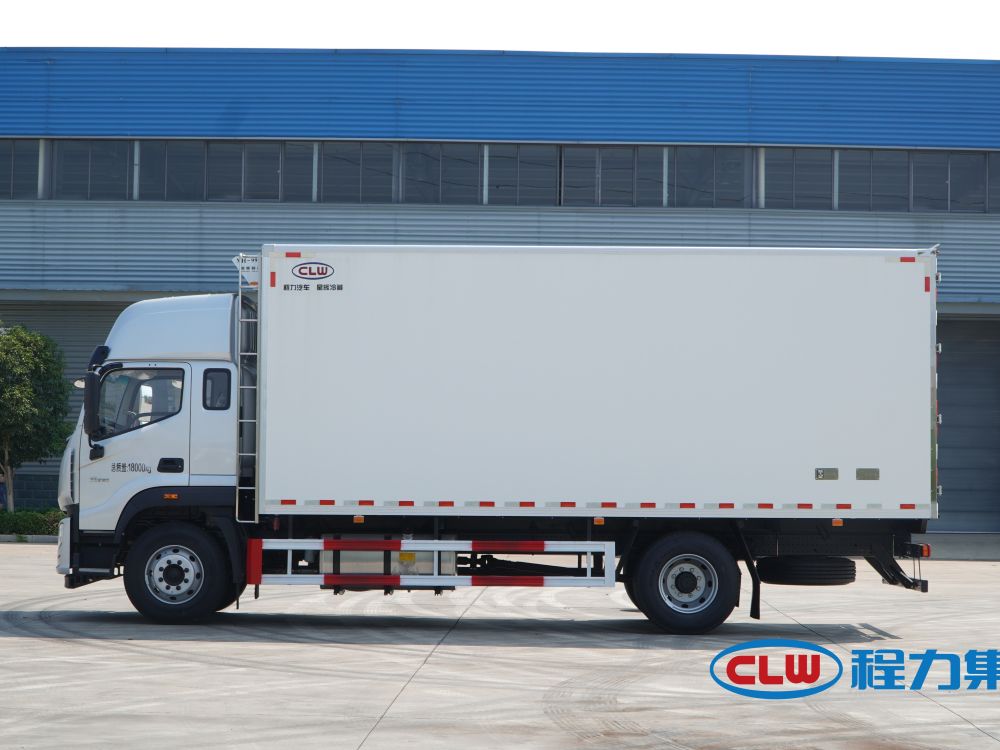

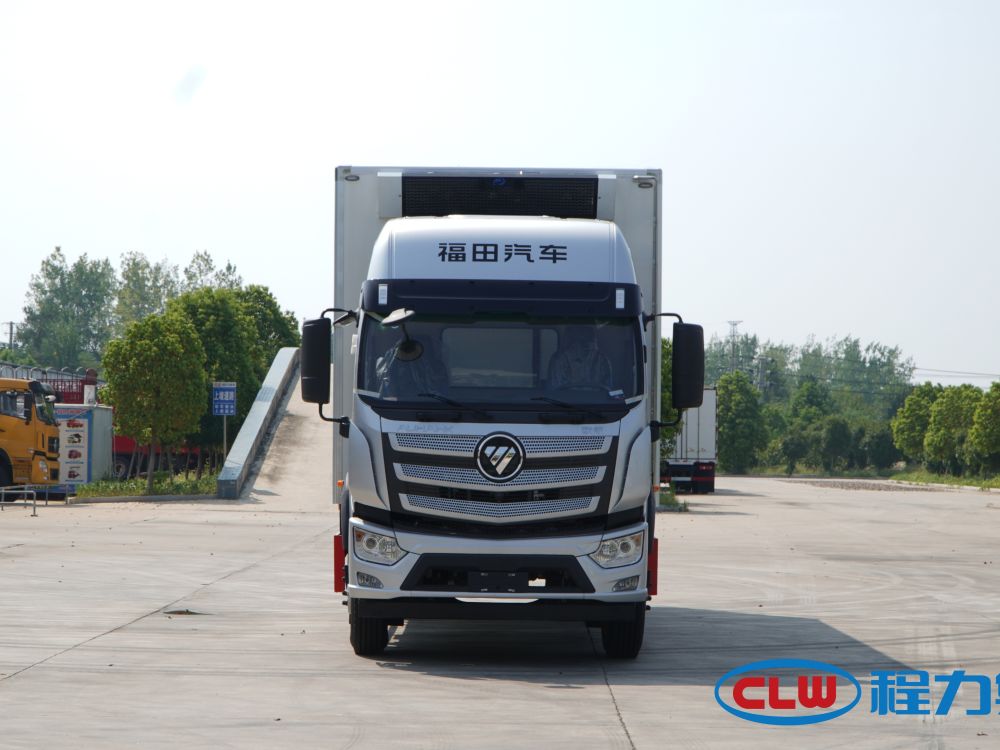

| Product Name: | Cheng Liwei brand CLW5181XLCB6 refrigerated truck | Dimensions: | 9250,8200×2600×3950(mm) |
| Emission standard: | National VI | Cargo box size: | 6800,5900×2400×2500(mm) |
| Gross Vechile Weight (GVW): | 18000(Kg) | Approach/departure angle: | 18/10,18/8(°) |
| Rated Payload: | 11260,11195(Kg) | Front/ rear overhang: | 1270/2830,1270/2130(mm) |
| Curb weight: | 6610(Kg) | Maximum speed: | 100,89(km/h) |
| Chassis Parameters | |||
| Fuel type: | Diesel | Chassis model: | BJ1186VKPFK-1M |
| Number of axles: | 2 | Front wheel tread: | 1922,1970,2020,1960,1945,1955(mm) |
| Wheelbase: | 4800,5150(mm) | Rear wheel tread: | 1800,1830,1860(mm) |
| Number of passengers in the cab: | (people) | Number of springs: | 10/10+8,3/4+3,10/8+8,9/10+8,3/5+3,9/8+6,2/2+3,9/9+6 |
| Number of tires: | 6(pcs) | Axle load: | 6500/11500 |
| Tire specifications: | 10.00R20 18PR,11R22.5 18PR,275/80R22.5 18PR,295/60R22.5 18PR | ||
| Engine Parameters | |||
| Engine Model: | Engine Manufacturer | Displacement(ml) | Power(kw)/horsepower(PS): |
| B6.2NS6B230 | Dongfeng Cummins Engine Co., Ltd. | 6200 | 169/229 |
| F4.5NS6B190 | Beijing Futian Cummins Engine Co., Ltd. | 4500 | 140/190 |
| F4.5NS6B220 | Beijing Futian Cummins Engine Co., Ltd. | 4500 | 162/220 |
| B6.2NS6B245 | Dongfeng Cummins Engine Co., Ltd. | 6200 | 180/244 |
| B6.2NS6B260 | Dongfeng Cummins Engine Co., Ltd. | 6200 | 191/259 |
| F4.5NS6B240 | Beijing Futian Cummins Engine Co., Ltd. | 4500 | 176/239 |
| YCS04200-68 | Guangxi yuchai machine joint stock company | 4156 | 147/199 |
| YCS06270-60 | Guangxi yuchai machine joint stock company | 6234 | 199/270 |
| YCK05240-60 | Guangxi yuchai machine joint stock company | 5132 | 176/239 |
| YCS06270-61 | Guangxi yuchai machine joint stock company | 6234 | 199/270 |
| F4.5NS6B235A | Beijing Futian Cummins Engine Co., Ltd. | 4500 | 173/235 |
| F4.5NS6B240A | Beijing Futian Cummins Engine Co., Ltd. | 4500 | 176/239 |
| F4.5NS6B260 | Beijing Futian Cummins Engine Co., Ltd. | 4500 | 181/246 |
| YCS04220-61A | Guangxi yuchai machine joint stock company | 4295 | 162/220 |
| Other: | |||
| The top of the carriage is closed and cannot be opened. The corresponding relationship between the whole vehicle length/wheelbase/front suspension/rear suspension is: 9250/5150/1270/2830, 8200/4800/1270/2130. Side protection material: Q235A carbon steel, connection method: left and right side protection are welded. Rear protection device material: Q235A carbon steel, connection method: welded connection. Rear protection section size (mm): 120 × 60, rear protection ground height (mm): 480. Engine/fuel consumption value (L/100km) The corresponding relationship is: F4.5NS6B220/24.4, B6.2NS6B230/23.6, F4.5NS6B190/24.4. ABS system model/manufacturer correspondence: ABS-E/WABCO Automotive Control System (China) Co., Ltd., CM4XL-4S/4M/Guangzhou Ruili Kermit Automotive Electronics joint stock company, 3550D-1010/Dongke Knorr Commercial Vehicle Brake System (Shiyan) Co., Ltd. Install a driving recorder with satellite positioning function. Optional cab with chassis. Optional guide cover. Optional refrigeration units of other manufacturers with similar power. Optional ETC vehicle-mounted device with direct power supply. Optional speed limiting device, speed limit 89km/h. Optional right side door style | |||
