Multi-Purpose Vehicle
CL5037XQY6BXW
  • Dimensions:
    5560×1985×2100(mm)
  • Engine:
    JX4D23A6L/130KW
  • Loading Capacity:
CL5037XQY6BXW
  • Product FEATURE
  • PARAMETERS
  • CONSTRUCTION CASES
PRODUCT FEATURE
PARAMETERS

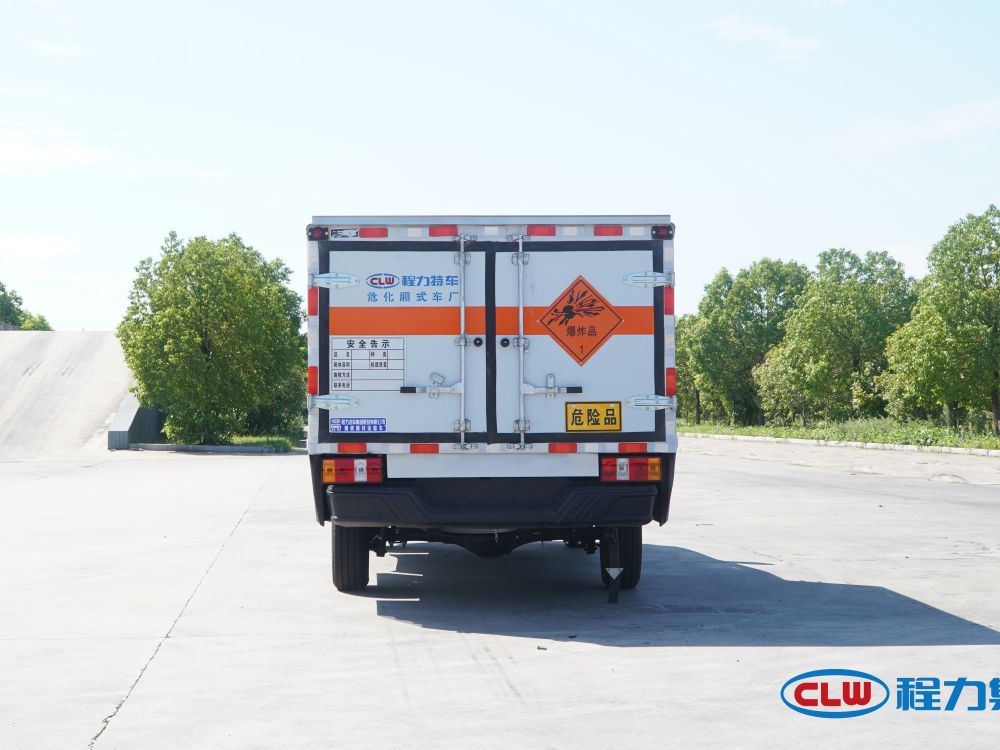

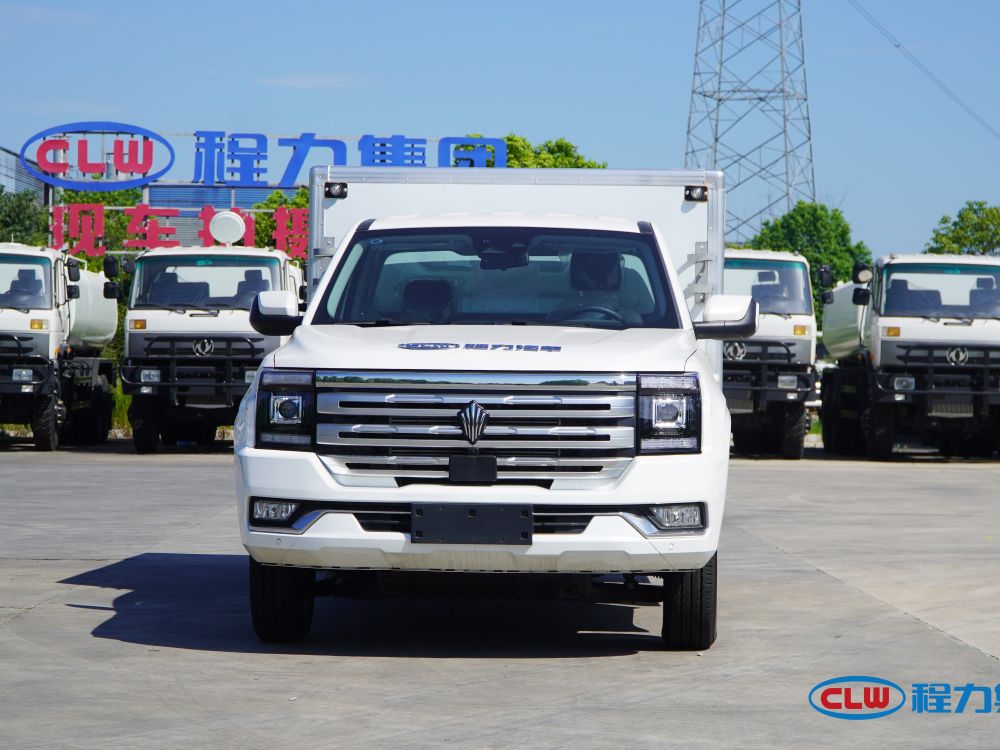

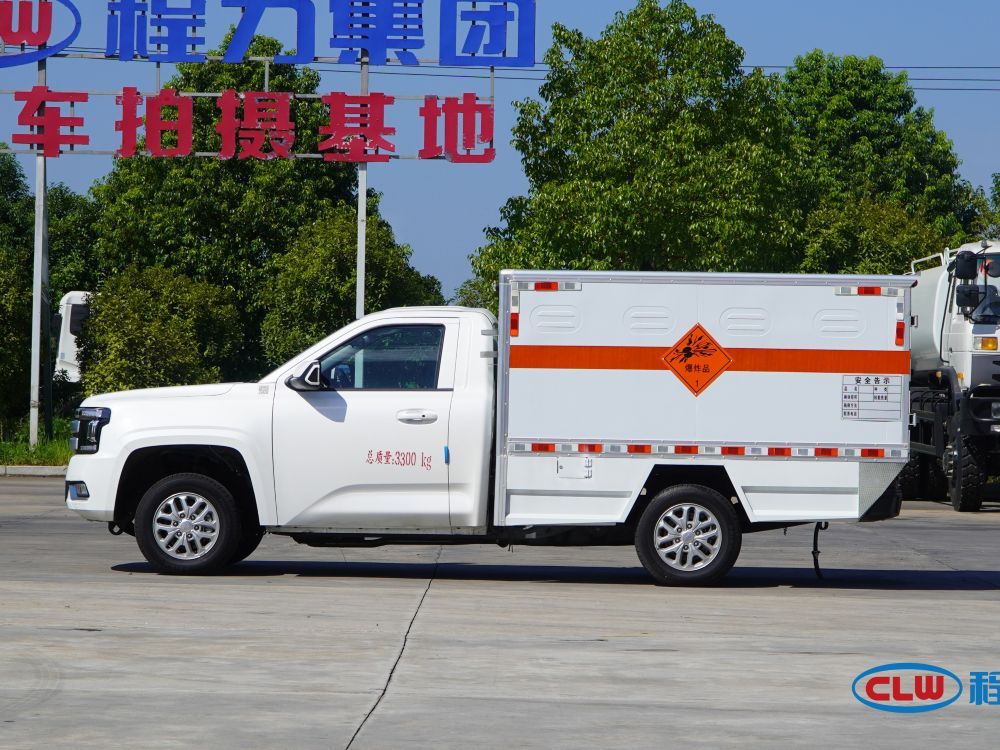

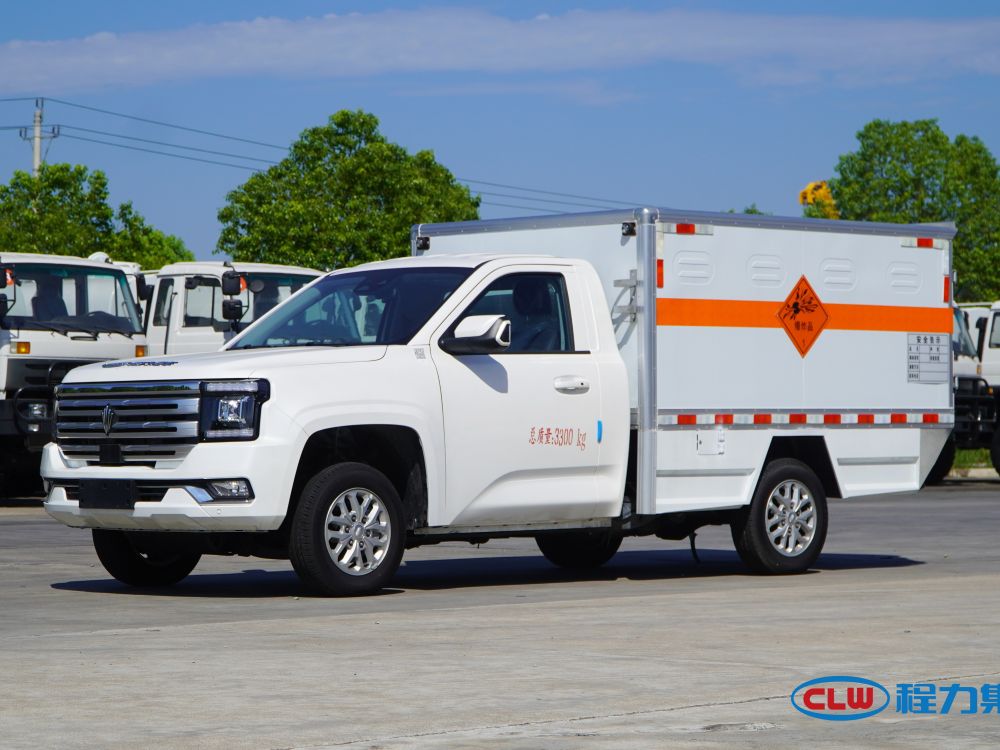

Main technical parameters of Chengli CL5037XQY6BXW blasting equipment transport vehicle
Product Name:Chengli CL5037XQY6BXW blasting equipment transport vehicleDimensions:5560×1935,1985×2100(mm)
Emission standard:National VICargo box size:2560×1830×1050(mm)
Gross Vechile Weight (GVW):3300(Kg)Approach/departure angle:27/24(°)
Rated Payload:750(Kg)Front/ rear overhang:905/1385(mm)
Curb weight:2420(Kg)Maximum speed:80(km/h)
Chassis Parameters
Fuel type:Diesel Chassis model:JX1037TFA6
Number of axles:2Front wheel tread:1620(mm)
Wheelbase:3270(mm)Rear wheel tread:1620(mm)
Number of passengers in the cab:(people)Number of springs:-/5
Number of tires:4(pcs)Axle load:1240/2060
Tire specifications:195/75R16LT
Engine Parameters
Engine Model:Engine ManufacturerDisplacement(ml)Power(kw)/horsepower(PS):
JX4D23A6LJiangling Motors Co., Ltd.2296130/176
Other:
This vehicle is a dangerous goods transport vehicle, the top of the vehicle compartment is closed and cannot be opened; it transports goods packaged in independent containers (bottles); dangerous goods vehicle type: EX/Ⅱ type vehicle; dangerous goods category number: 1.1B, 1.1G, 1.1D, 1.2D, 1.3C, 1.1C, 1.4G; ABS system model/manufacturer: APG3550500G/Zhejiang Asia Pacific Electromechanical Co., Ltd.; installed with a speed limiter; speed limiter speed limit (km/h): 80; installed with a driving recorder with satellite positioning function; only chassis radial tires are used, the front wheels of the vehicle are equipped with disc brakes, front exhaust pipes, and the safety device is an electrostatic conductive belt to prevent static electricity. Accessories corresponding to the curb weight: including standard accessories, spare tires, and fire extinguishers. The weight of the cargo compartment (including the lower panel) is 635kg. Optional ETC vehicle-mounted device with direct power supply. The chassis is equipped with optional front guard lower air dam, optional wheels of different styles, optional square door handles, and optional LED headlights; the corresponding fuel consumption value (L/100km) of the engine JX4D23A6L is 8.2. The optional side of the box does not open the door. Box material/thickness: composite board structure box: the bottom plate material is Q235, the thickness is 3mm, the side plate is Q235 outside + middle flame retardant foam + inner pure aluminum plate, the thickness is 42mm.
Announcement on road transport vehicle compliance
Batch: Batch 65
Product ModelQualified vehicle numberProduct NameCompany Name
CL5037XQY6BXW
Explosive material transport vehicleChengli Automobile Group Co., Ltd.
