Product Name:

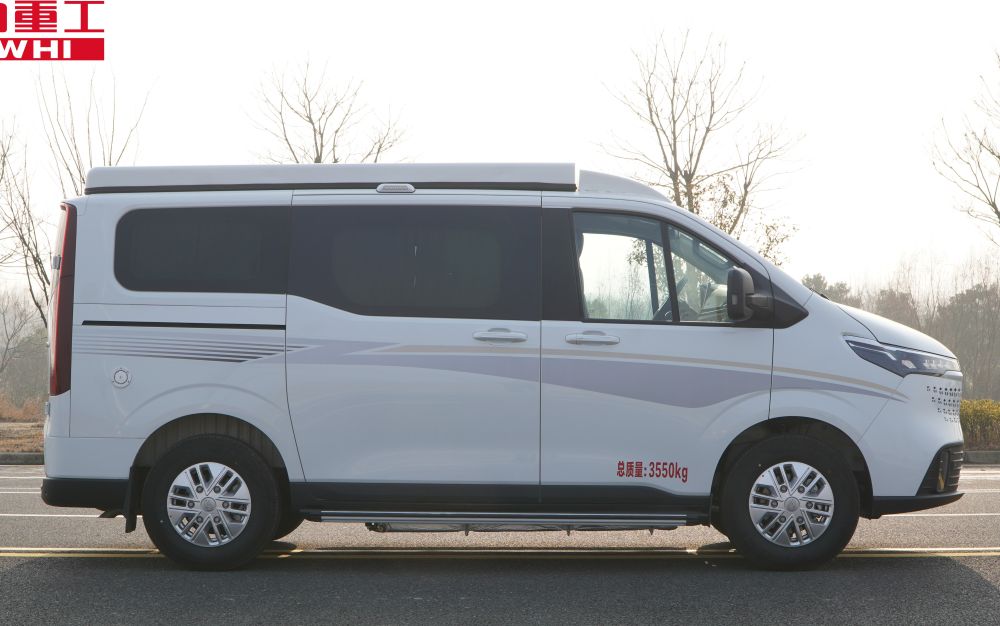

Chengli Heavy Industry CLH5040TSYNA camper

Dimensions:

4998×2100×2140(mm)

Emission standard:

National VI

Cargo box size:

××(mm)

Gross Vechile Weight (GVW):

3550(Kg)

Approach/departure angle:

19/22(°)

Rated Payload:

(Kg)

Front/ rear overhang:

1010/988(mm)

Curb weight:

2740,2800(Kg)

Maximum speed:

156,160,100(km/h)

Chassis Parameters

Fuel type:

Diese

Chassis model:

NJ6506FDC5C-DT

Number of axles:

2

Front wheel tread:

1734(mm)

Wheelbase:

3000(mm)

Rear wheel tread:

1756(mm)

Number of passengers in the cab:

2,3,4,5,6(people)

Number of springs:

-/2

Number of tires:

4(pcs)

Axle load:

1600/1950

Tire specifications:

215/65R16LT,215/75R16LT,235/60R17LT

Engine Parameters

Engine Model:

Engine Manufacturer

Displacement(ml)

Power(kw)/horsepower(PS):

SC20M125.1Q6

Shanghai New   Power Automobile Technology Co., Ltd.

1996

93/126

SC20M150Q6D

Shanghai New   Power Automobile Technology Co., Ltd.

1996

110/149

Other:

The vehicle is   equipped with special devices such as bedding, seats, and kitchen utensils   for outdoor camping. ABS manufacturer: Bosch Automotive Components (Suzhou)   Co., Ltd., ABS model: ESP9, when the engine is SC20M125.1Q6, the maximum   speed is 156km/h, when the engine is SC20M150Q6D, the maximum speed is   160km/h. Optional speed limiter, engine ECU speed limit, speed limit 100km/h.   This model can be equipped with ETC on-board device. The vehicle is equipped   with an automobile event data recording system (EDR). The top of the vehicle   is a lifting roof structure with a height of 2140mm. The top of the vehicle   shall not be opened or raised while the vehicle is driving. Optional   interior.
