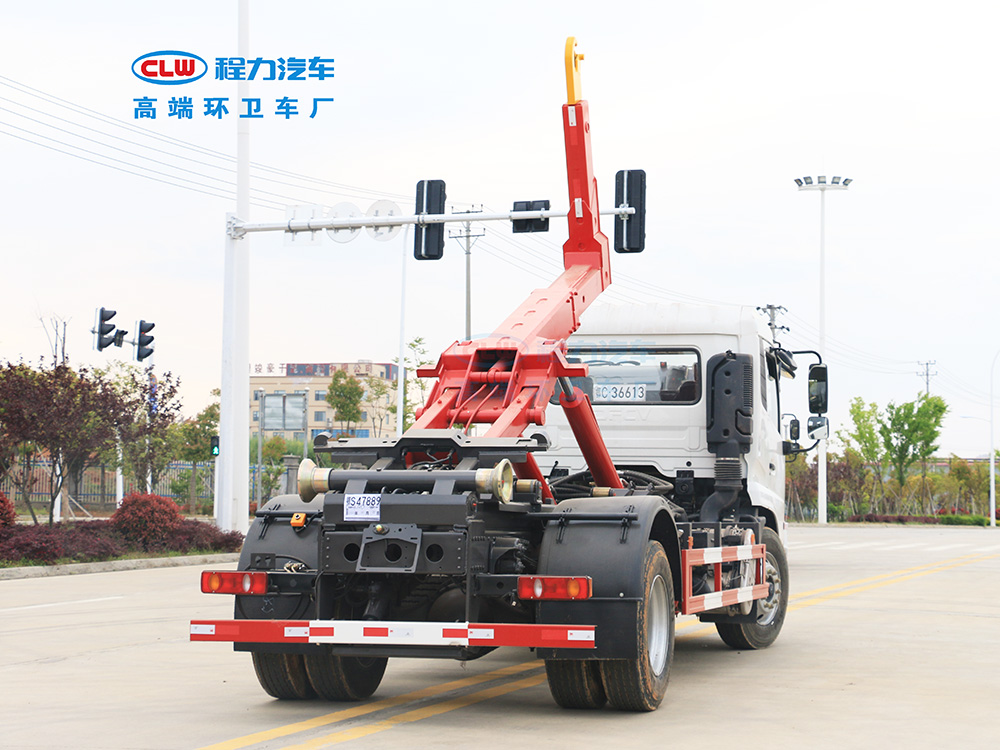

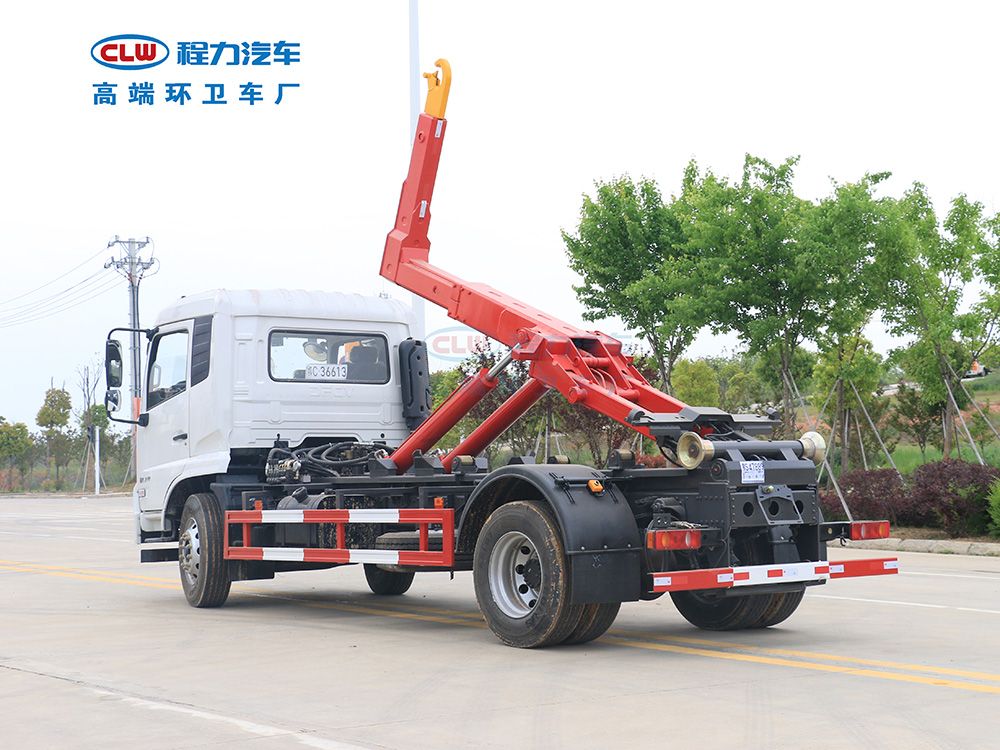

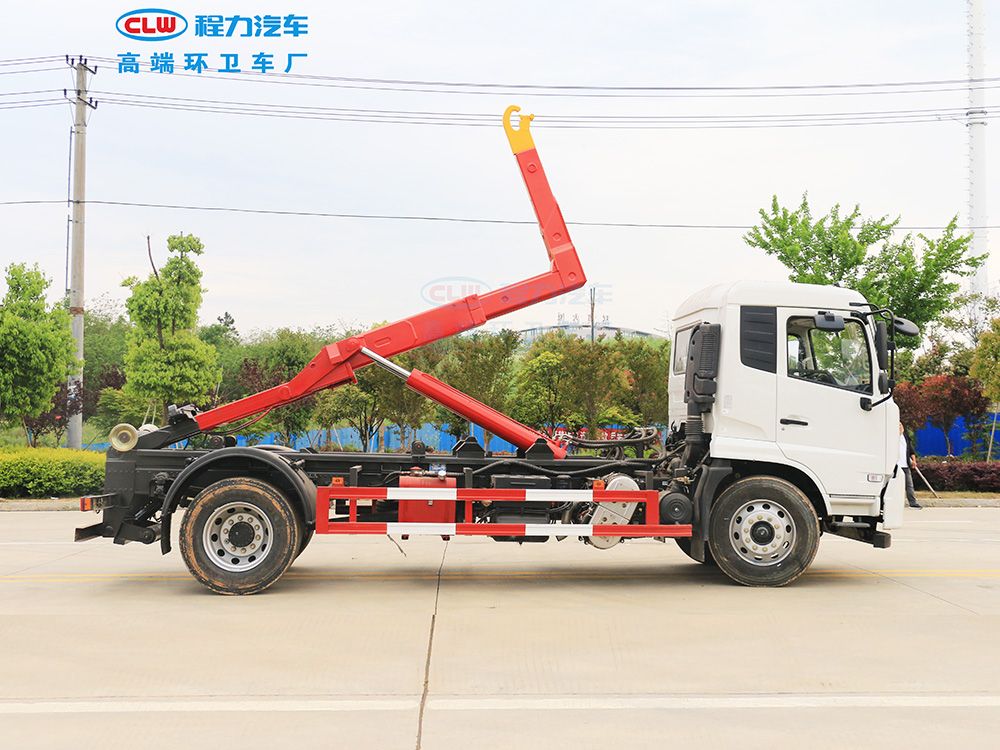

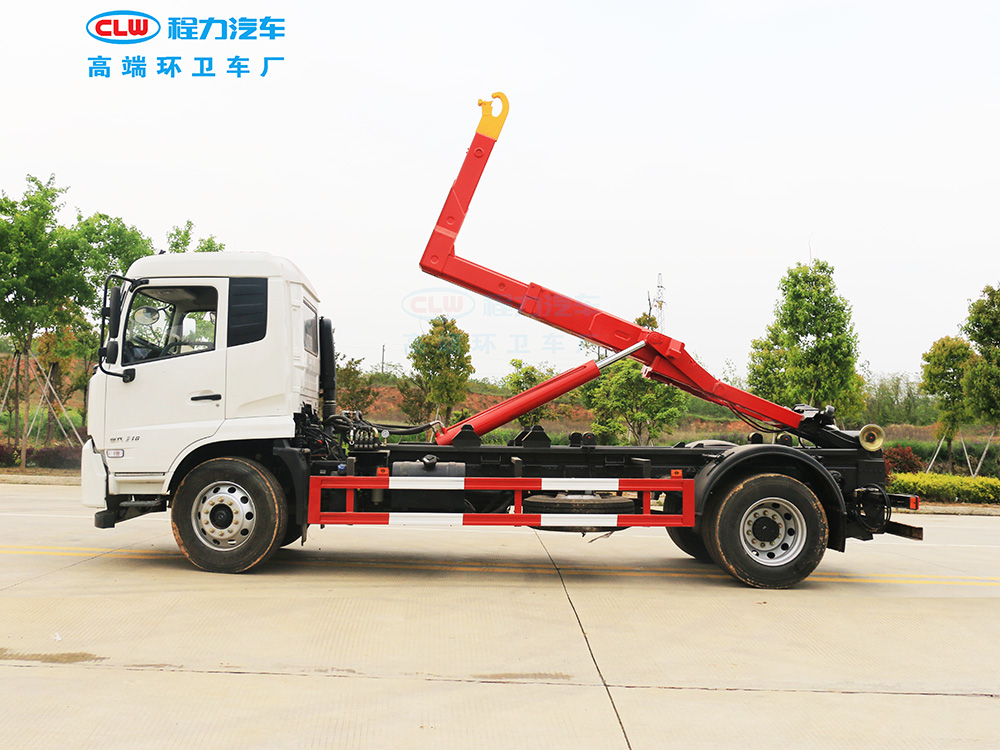

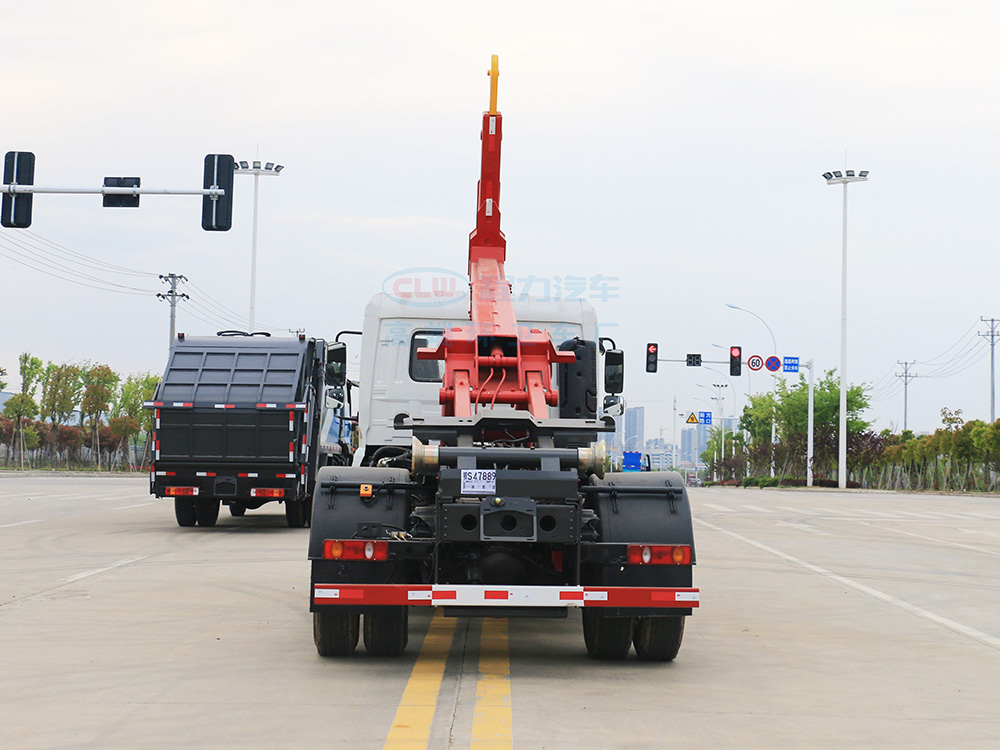

| Product Name | Brand Chengliwei Hook Loader Garbage Truck CLW5180ZXXD6 |
| Total mass (kg) | 18000 | Tank volume (m3) |
|
| Rated mass (kg) | 10380, 10315, 10290, 10225 | Dimensions (mm) | 7300,7500×2470×3150,3080 |
| Curb weight (kg) | 7490, 7580 | Cargo size (mm) | XX |
| Number of passengers(person) | 2 | Maximum load of saddle (kg) |
|
| Approach/Departure Angle (°) | 17/18,17/16 | Front /rear suspension(mm) | 1400/1400,1430/1370 |
| Axle load(kg) | 6500/11500 | Maximum speed (km/h) | 89 |
| 【CHASSIS TECHNICAL PARAMETERS】 |
| Chassis model | DFH1180EX8 | Chassis Name | Class II truck chassis |
| Chassis Brand | Dongfeng | Manufacturer | Dongfeng Commercial Vehicle Co., Ltd. |
| Number of Axles | 2 | Number of tires | 6 |
| Wheelbase(mm) | 4500,4700 | Tire specifications | 10.00R20 18PR,275/80R22.5 18PR |
| Number of leaf springs | 7/9+6,8/10+8,8/9+6,11/10+8,3/10+8 | Front track(mm) | 1876, 1896, 1920, 1950, 1914, 1934, 1980, 2000, 1815, 1860 |
| Fuel type | Diesel Oil | Rear Track(mm) | 1820, 1860, 1800, 1840 |
| Emissions according to standards | GB17691-2018; Euro Ⅵ |
| Engine Model | Engine Manufacturer | Engine Displacement（ml) | Engine Power (kw/ps) |
| B6.2NS6B210 | Dongfeng Cummins Engine Co., Ltd. | 6200 | 154/209 |
| B6.2NS6B230 | Dongfeng Cummins Engine Co., Ltd. | 6200 | 169/229 |
