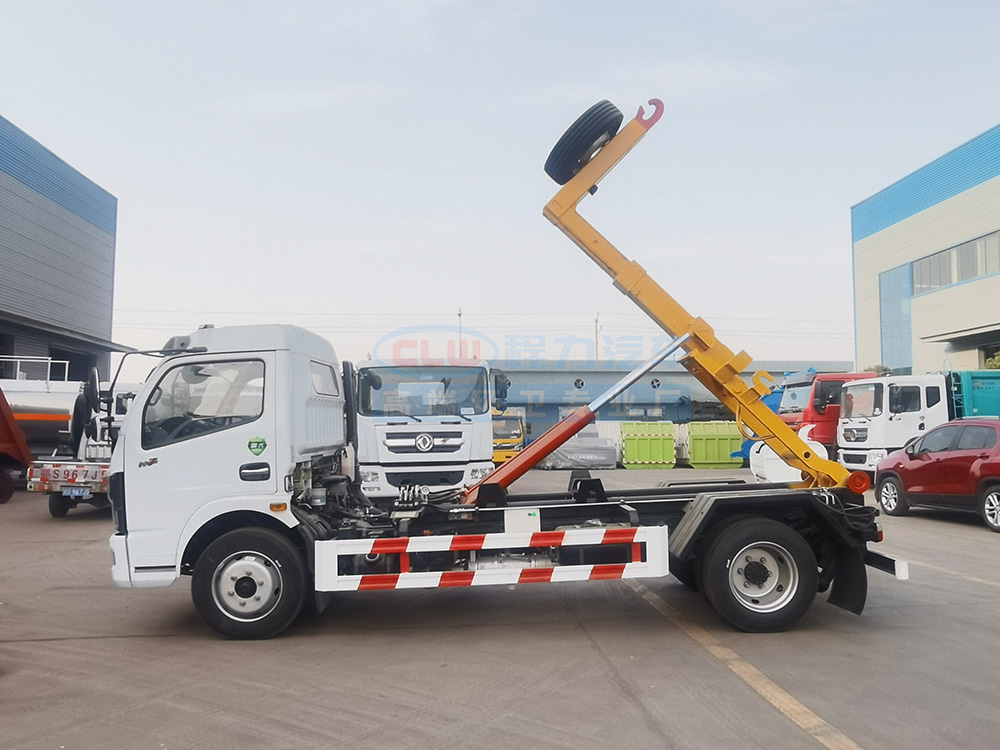

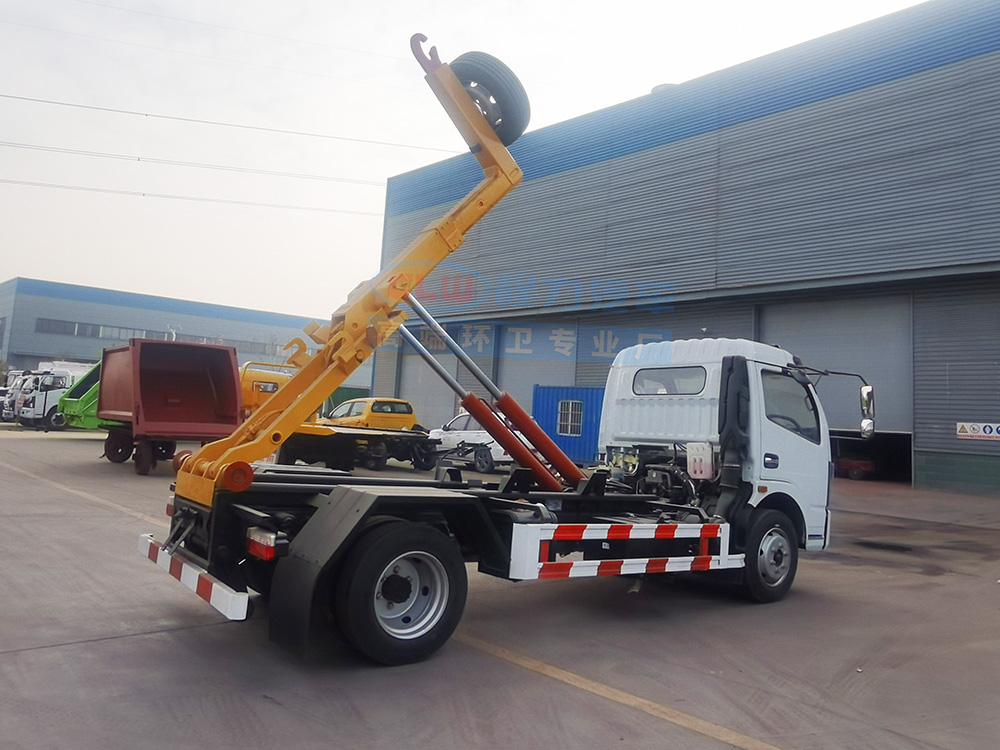

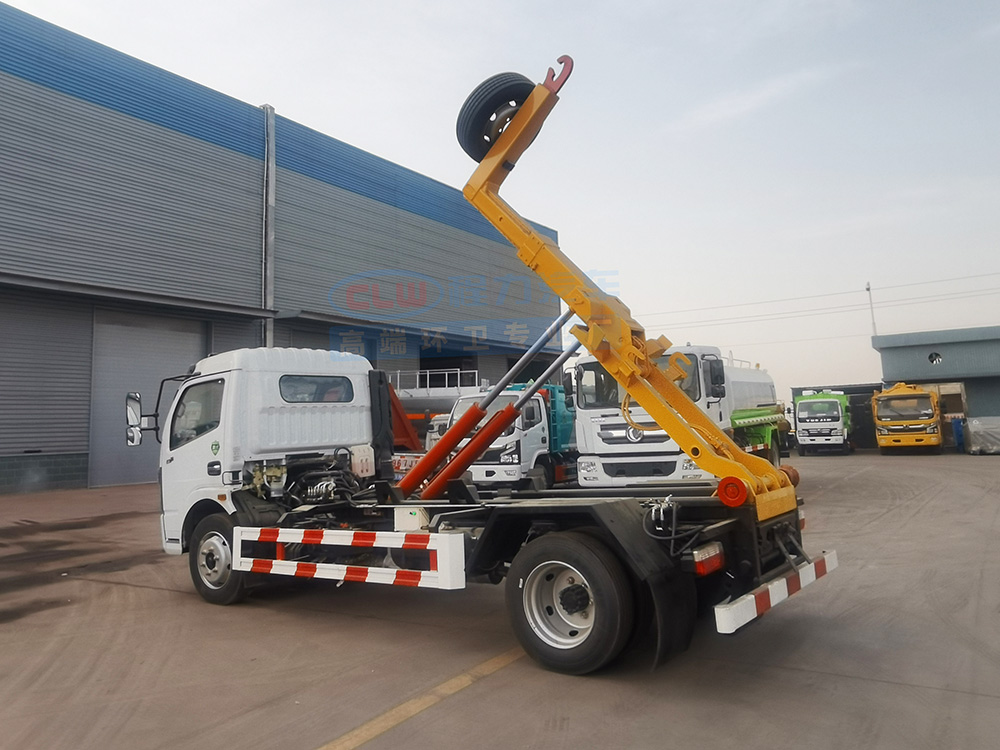

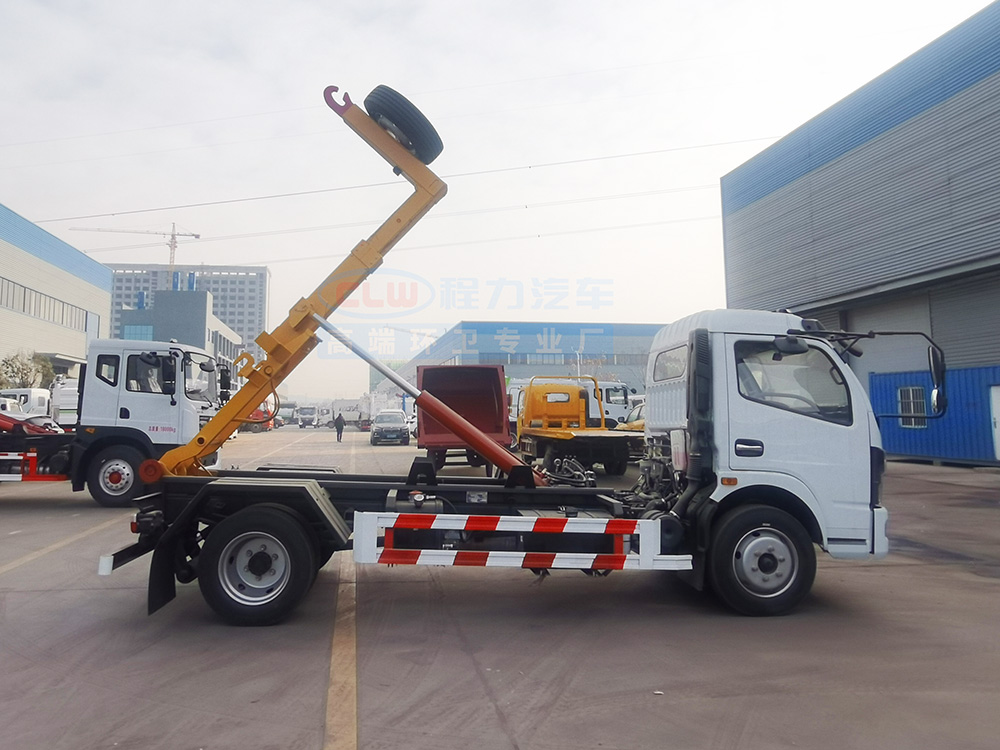

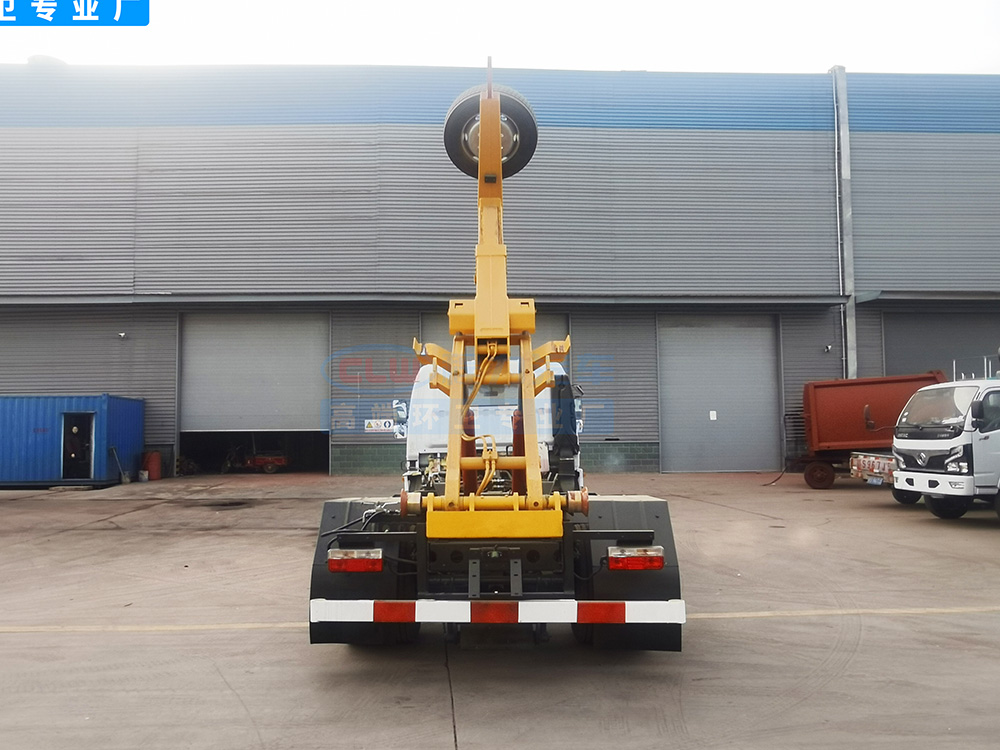

| Product Name | Brand Chengliwei Hook Loader Garbage Truck CL5120ZXX6GH |
| Total mass (kg) | 11995 | Tank volume (m3) |
|
| Rated mass (kg) | 7415, 7350 | Dimensions (mm) | 5950×2200×2410 |
| Curb weight (kg) | 4,450 | Cargo size (mm) | XX |
| Number of passengers(person) | 2 | Maximum load of saddle (kg) |
|
| Approach/Departure Angle (°) | 21/23 | Front /rear suspension(mm) | 1130/1020 |
| Axle load(kg) | 4350/7645 | Maximum speed (km/h) | 103 |
| 【CHASSIS TECHNICAL PARAMETERS】 |
| Chassis model | EQ1125SJ8CDC | Chassis Name | Class II truck chassis |
| Chassis Brand | Dongfeng | Manufacturer | Dongfeng Motor Co., Ltd. |
| Number of Axles | 2 | Number of tires | 6 |
| Wheelbase(mm) | 3800 | Tire specifications | 245/70R19.5,8.25R20 |
| Number of leaf springs | 8/10+7,12/12+9 | Front track(mm) | 1745, 1802, 1820, 1842, 1765, 1890 |
| Fuel type | Diesel Oil | Rear Track(mm) | 1630, 1650, 1800, 1720 |
| Emissions according to standards | GB17691-2018; Euro Ⅵ |
| Engine Model | Engine Manufacturer | Engine Displacement（ml) | Engine Power (kw/ps) |
| YCY30165-60 | Guangxi Yuchai Machinery Co., Ltd. | 2970 | 121/164 |
| Q28-130E60 | Anhui Quanchai Power Co., Ltd. | 2800 | 96/130 |
| D30TCIF1 | Kunming Yunnei Power Co., Ltd. | 2977 | 125/170 |
| CY4SK361 | Dongfeng Chaoyang Chaochai Power Co., Ltd. | 3856 | 125/170 |
| NV30-C6D | Dongfeng Chaoyang Chaochai Power Co., Ltd. | 2968 | 120/163 |
| ZD30D16-6N | Dongfeng Light Engine Co., Ltd. | 2953 | 120/163 |
| D25TCIF1 | Kunming Yunnei Power Co., Ltd. | 2499 | 110/149 |
| YCY24140-60 | Guangxi Yuchai Machinery Co., Ltd. | 2360 | 103/140 |
