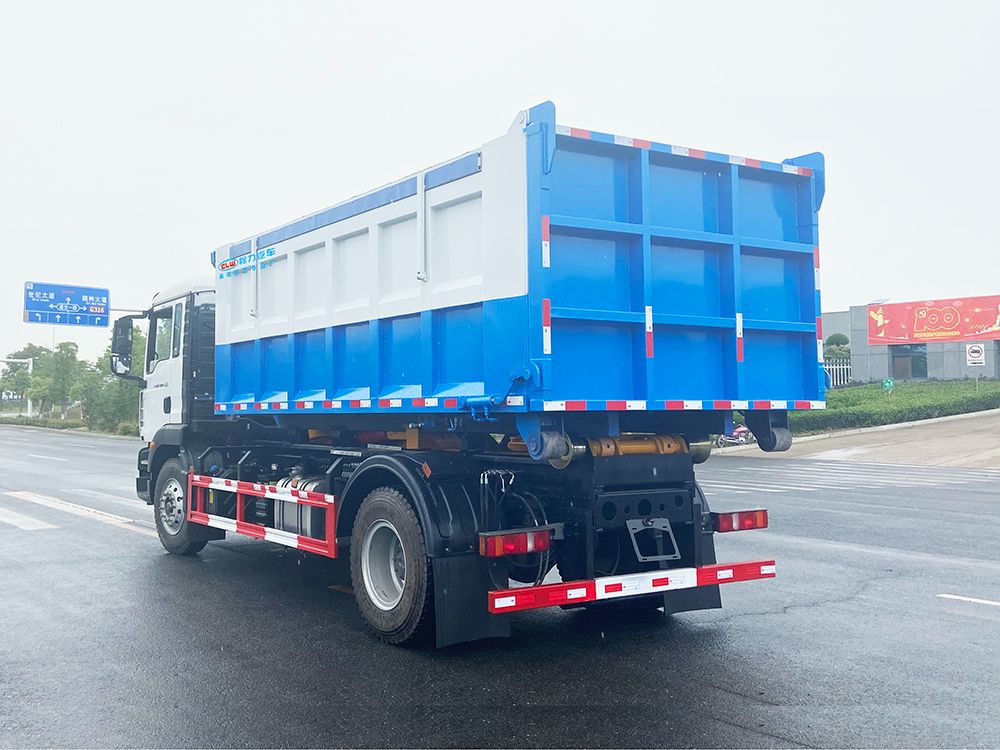

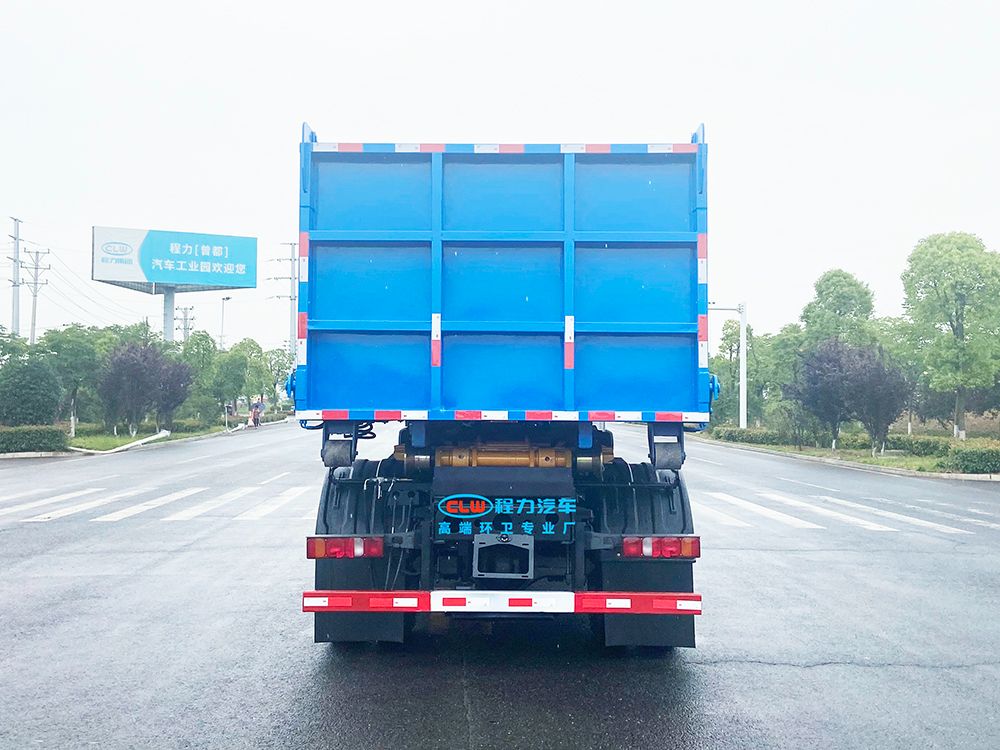

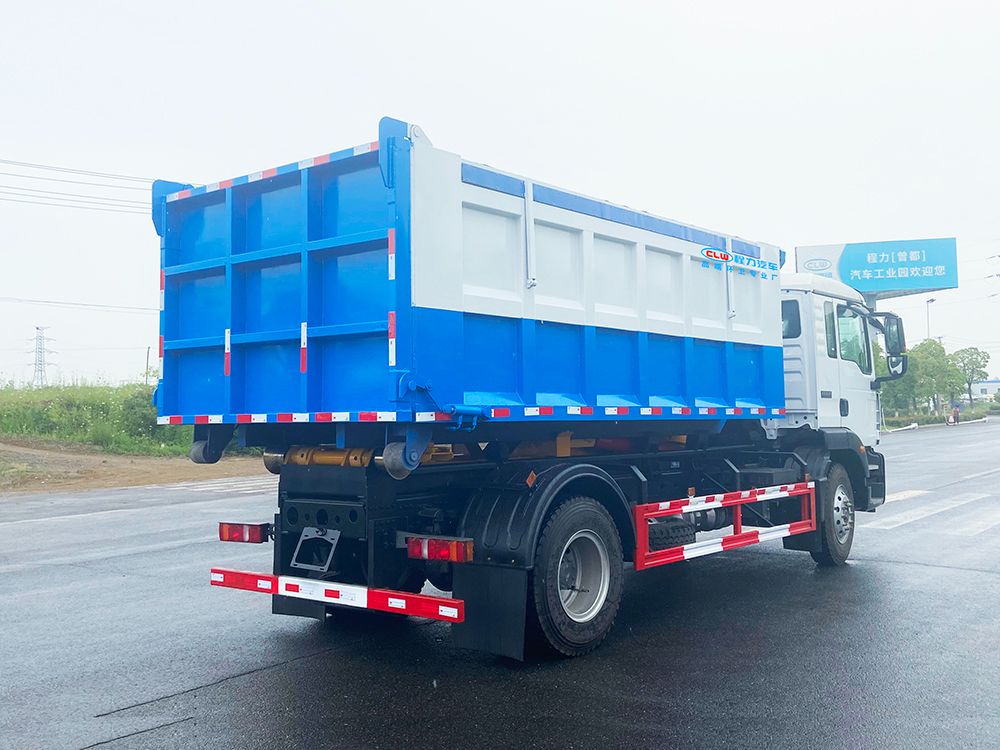

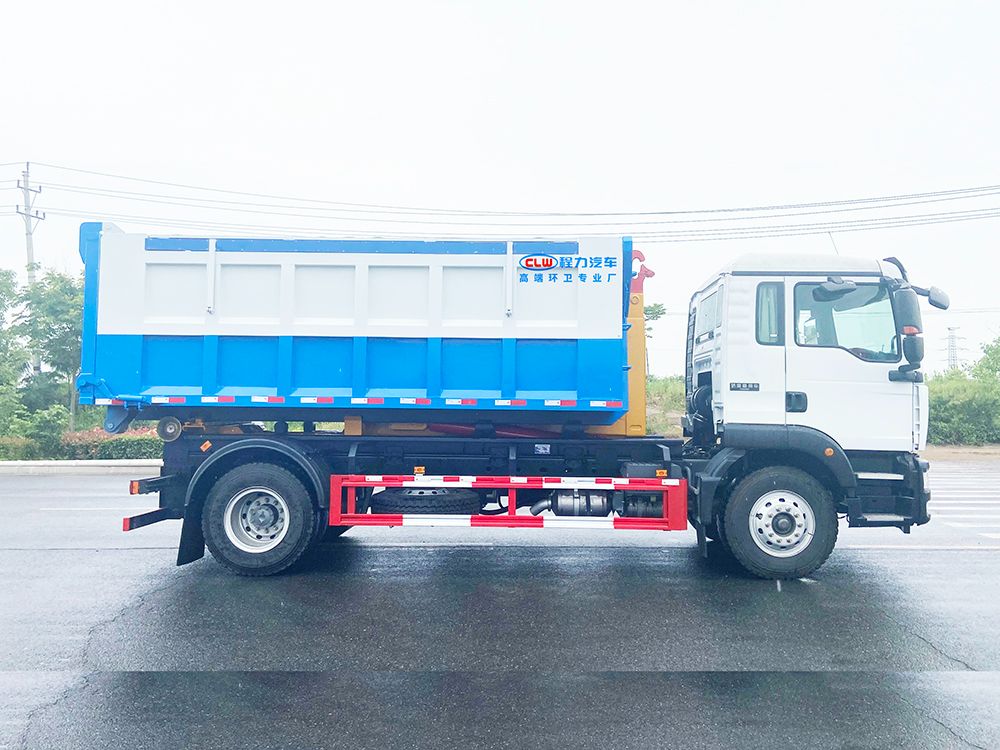

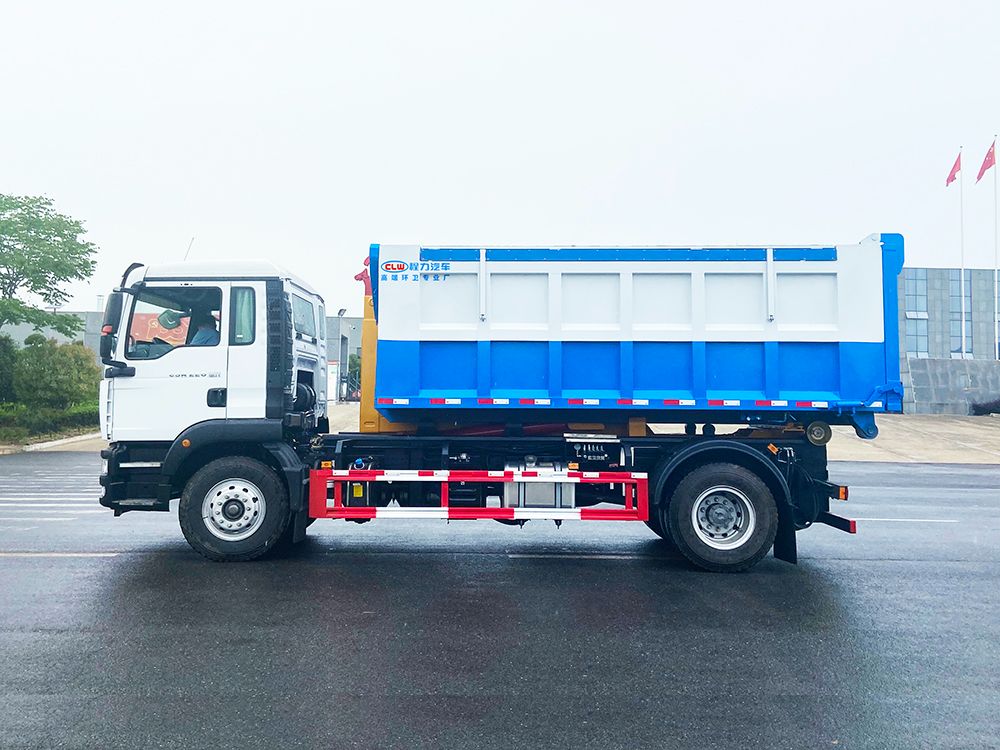

| Product Name | Brand Chengliwei Hook Loader Garbage Truck CLW5180ZXXZ6 |
| Total mass (kg) | 18000 | Tank volume (m3) |
|
| Rated mass (kg) | 9980, 9915 | Dimensions (mm) | 6310,6510,6910,7190,7380×2530×3100 |
| Curb weight (kg) | 7,890 | Cargo size (mm) | XX |
| Number of passengers(person) | 3 | Maximum load of saddle (kg) |
|
| Approach/Departure Angle (°) | 16/19,16/18 | Front /rear suspension(mm) | 1450/1230,1450/1240,1450/1260 |
| Axle load(kg) | 6500/11500 | Maximum speed (km/h) | 89 |
| 【CHASSIS TECHNICAL PARAMETERS】 |
| Chassis model | ZZ5186XXYK501GF1 | Chassis Name | Class II truck chassis |
| Chassis Brand | SITRAK | Manufacturer | China National Heavy Duty Truck Group Jinan Commercial Vehicle Co., Ltd. |
| Number of Axles | 2 | Number of tires | 6 |
| Wheelbase(mm) | 3600,3800,4200,4500,4700 | Tire specifications | 295/80R22.5,12R22.5,11.00R20 ,10.00R20, 275/80R22.5,295/60R22.5 ,315/60R22.5 |
| Number of leaf springs | 3/4,2/3+2,3/3+2,3/9+8,3/7+3,3/7+6,7/7+3,7/7+6,11/9+8,3/-,3/2+-,2/2+-,2/- | Front track(mm) | 1900, 1950, 1998, 2015, 2035, 2065, 2075 |
| Fuel type | Diesel Oil | Rear Track(mm) | 1850 |
| Emissions according to standards | GB17691-2018; Euro Ⅵ |
| Engine Model | Engine Manufacturer | Engine Displacement（ml) | Engine Power (kw/ps) |
| WP7.300E61 | Weichai Power Co., Ltd. | 7470 | 220/299 |
| WP6H270E61 | Weichai Power Co., Ltd. | 6220 | 199/270 |
| WP6H245E61 | Weichai Power Co., Ltd. | 6220 | 180/24 |
| MC07.29-60 | China National Heavy Duty Truck Group Co., Ltd. | 6870 | 213/289 |
| MC07.27-60 | China National Heavy Duty Truck Group Co., Ltd. | 6870 | 202/274 |
| MC07.25-60 | China National Heavy Duty Truck Group Co., Ltd. | 6870 | 188/255 |
| MC05H.25-60 | China National Heavy Duty Truck Group Co., Ltd. | 4910 | 180/244 |
| MC05H.23-60 | China National Heavy Duty Truck Group Co., Ltd. | 4910 | 166/225 |
| MC05H.20-60 | China National Heavy Duty Truck Group Co., Ltd. | 4910 | 147/199 |
| MC07H.29-60 | China National Heavy Duty Truck Group Co., Ltd. | 7360 | 213/289 |
| WP7.270E61 | Weichai Power Co., Ltd. | 7470 | 199/270 |
