Product Name:

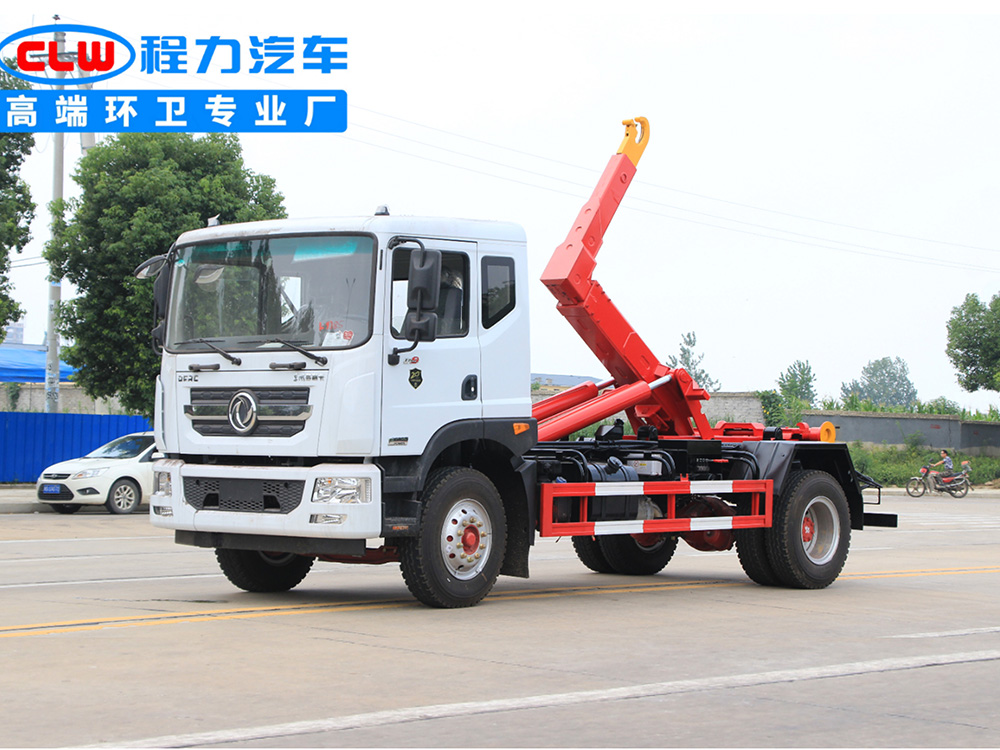

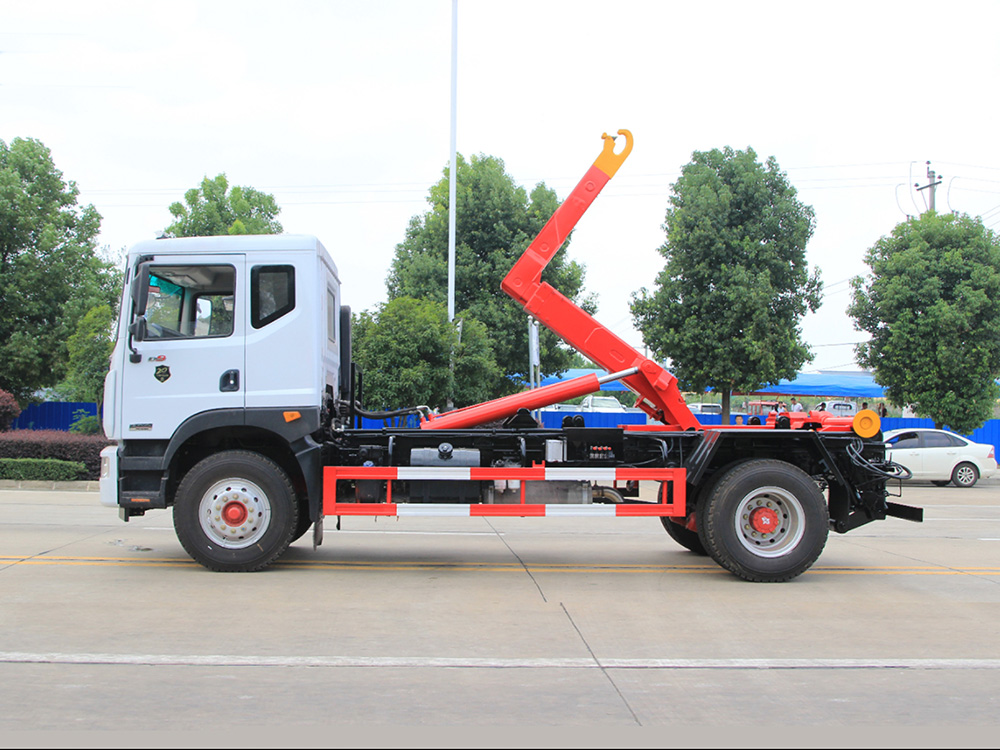

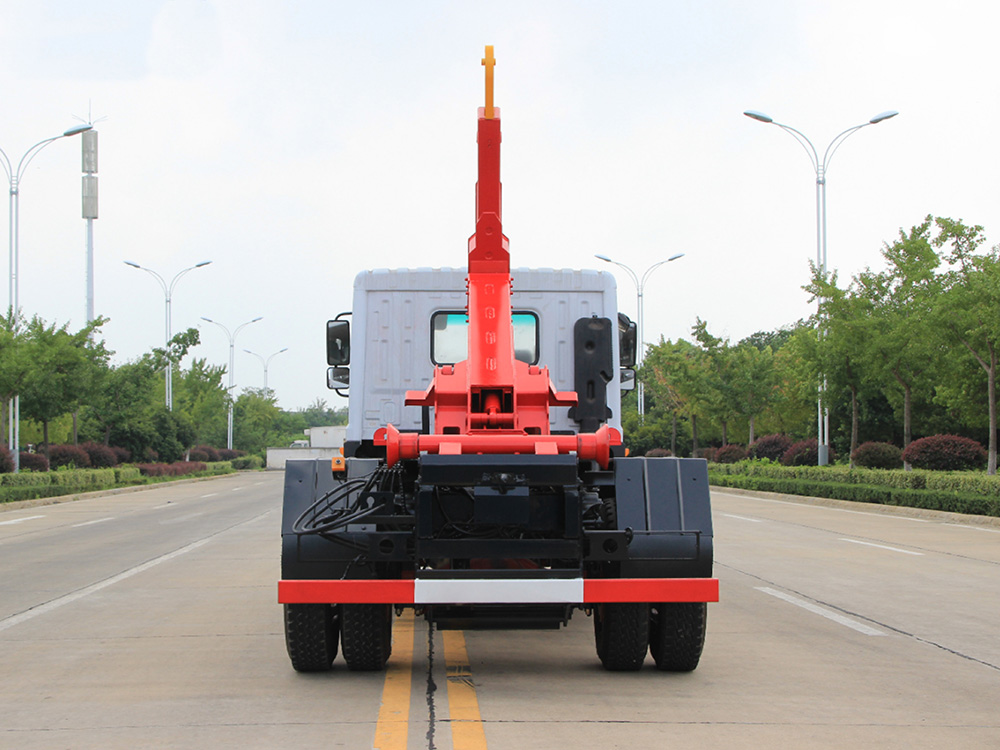

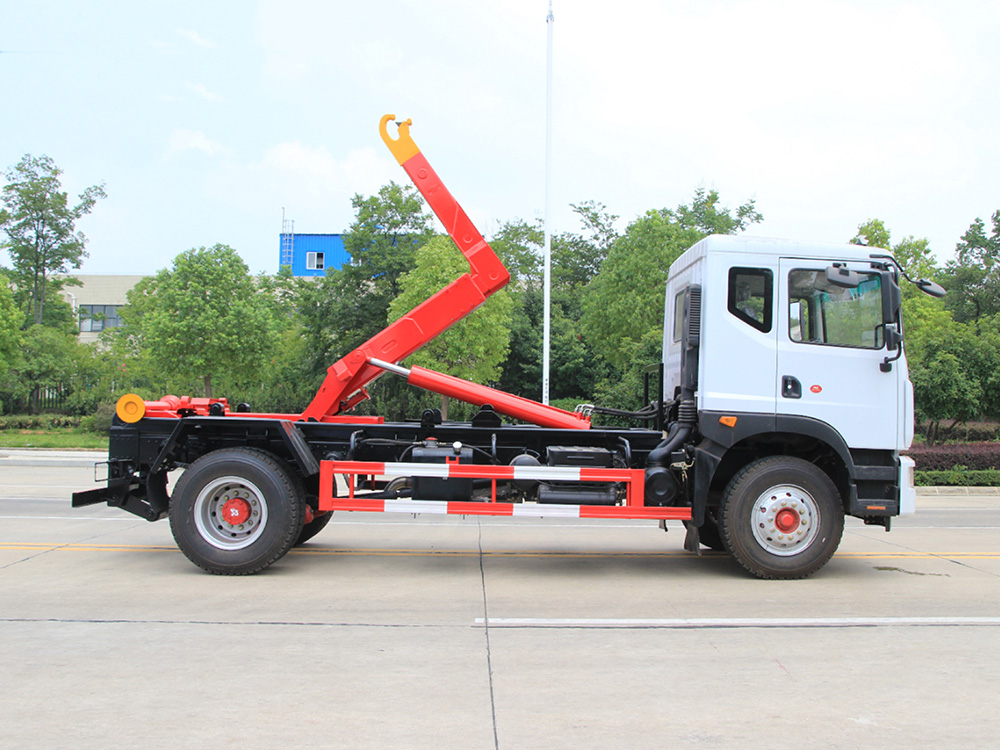

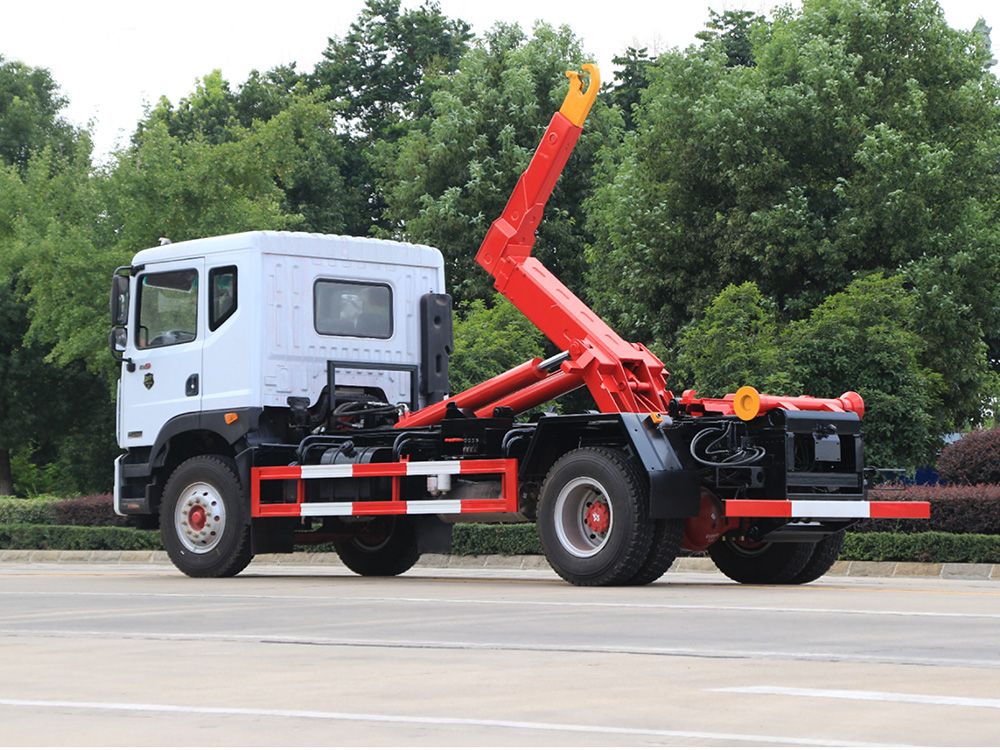

Chengliwei   CLW5180ZXXE6 dump truck

Dimensions:

7650,7350,7050,6500×2500×3100,3150,3225(mm)

Emission standard:

National VI

Cargo box size:

××(mm)

Gross Vechile Weight (GVW):

18000(Kg)

Approach/departure angle:

19/21,19/21,19/21,19/20,19/20(°)

Rated Payload:

10290,10225,10790,10725(Kg)

Front/ rear overhang:

1260/1090,1260/1090,1260/1090,1260/1290,1260/1290(mm)

Curb weight:

7580,7080(Kg)

Maximum speed:

105(km/h)

Chassis Parameters

    Fuel type:

Diesel

Chassis model:

EQ1185LJ9CDE

Number of axles:

2

Front wheel tread:

1862,1933,1949,1904,1960(mm)

Wheelbase:

3600,3950,4500,4700,5000,5300,5600(mm)

Rear wheel tread:

1806,1865(mm)

Number of passengers   in the cab:

(people)

Number of springs:

8/10+7,8/-,7/7+3,6/7+3

Number of tires:

6(pcs)

Axle load:

6500/11500

Tire specifications:

295/80R22.5   18PR,10.00R20 18PR,275/80R22.5 18PR

Engine Parameters

Engine Model:

Engine Manufacturer

Displacement(ml)

Power(kw)/horsepower(PS):

CY4SK761

Dongfeng Chaoyang Chaochai Power Co., Ltd.

4087

145/197

YCS04200-68

Guangxi Yuchai   Machinery Co., Ltd.

4156

147/199

D4.5NS6B220

Dongfeng Cummins   Engine Co., Ltd.

4500

162/220

B6.2NS6B210

Dongfeng Cummins   Engine Co., Ltd.

6200

154/209

B6.2NS6B230

Dongfeng Cummins   Engine Co., Ltd.

6200

169/229

D4.0NS6B195

Dongfeng Cummins   Engine Co., Ltd.

4000

143/194

D45TCIF1

Kunming Yunnei Power   Co., Ltd.

4461

162/220

B6.2NS6B260

Dongfeng Cummins   Engine Co., Ltd.

6200

191/259

D4.5NS6B240

Dongfeng Cummins   Engine Co., Ltd.

4500

176/239

Other:

1. Mainly used for   the collection and transportation of urban sanitation garbage. Special   device: arm pulling mechanism. 2. The corresponding relationship between the   engine models B6.2NS6B210, CY4SK761, D4.0NS6B195, D4.5NS6B220, YCS04200-68,   B6.2NS6B230 and the fuel consumption value (L/100km) is: 26.3, 26.8, 26.6,   26.6, 26.4, 26.1. 3. The left and right side protection and the auxiliary   beam are welded, and the protection material is Q235A Carbon steel, rear   lower protection and frame are welded, protection material: Q235A carbon   steel, rear protection section size (mm): 120×60, rear protection ground   clearance (mm): 460. 4. The corresponding relationship between vehicle   length/wheelbase/rear overhang is (mm): 7650/5300/1090, 7350/5000/1090,   7050/4700/1090, 7050/4500/1290, 6500/3950/1290. 5. ABS system manufacturer,   model: Jiaozuo Borek Control Technology Co., Ltd., J ABS. Install a driving   recorder with satellite positioning function. 6. Optional ETC vehicle-mounted   device, optional accessory installation position with chassis. Optional   appearance structure style.
