Drive Type

 4 X 2 (RHD)

WEIGHT

Payload

kg

3000

Complete Kerb Mass

kg

3500

Gross Vehicle Weight

kg

6500

DIMENSIONS

Overall Length

mm

5500

Overall Width

mm

2120

Overall Height

mm

2350

Wheel Base

mm

2800

Max. speed

km/h

90

Ground Clearance

mm

180

Grade-ability

%

30

Turning radius

m

5.3

ENGINE

Brand

Yunnei

Model

4100QB-2

Country of origin

China

Name of Manufacturer

Kunming Yunnei Power Co., Ltd

Engine Type

Four-cylinder in-line, four-stroke, water-cooled, naturally aspirated direct injection diesel engine

Power

kW

66 @ 3000 rpm

Torque

Nm

230 @ 2200 rpm

Displacement

cc

3300

Fuel Type

Diesel

Fuel tank capacity

 L

90

Emission  Standard

Euro - II

CHASSIS

Chassis Model

CL10602R

Chassis Brand

CHENGLI WEI

Name of Manufacturer

Chengli Special Automobile Co.,Ltd

Country of origin

China

TRANSMISSION

Control Type

Manually operated

Gear shift

5 (Five) Forward and 1 (One) reverse

CLUTCH SYSTEM

Type

Hydraulically operated, Single Dry plate

Diameter

mm

255

BRAKING SYSTEM

Braking Mode

Double circuit air brake system

Adjustment arm type

Manual/ Mechanical adjustment arm

Front brake

Drum

Rear brake

Drum

Parking brake

Transmission mounted, Cable operated, mechanical linkage

SUSPENSIONS

Front Suspension

8 pcs

Rear Suspension

9+5 pcs

Functioning

Semi-elliptical alloy steel leaf springs, hydraulic double acting telescopic shock absorbers

STEERING

Steering Type

Right hand drive

Re-circulating ball and gear

AXLES

Front Axle

Steering axle, Rated payload: 2.0T

Rear Axle

Driving axle, Rated Payload: 4.0T

Rear Axle Ratio

6.166

Tyre (standard)

6 +1 (Spare) tires; 7.00R16

ELECTRICAL SYSTEM

Type

Negative subway

Starter

22 V, 2.5 kW

Generation

12 V, 750 W

Battery

12 V, 90Ah * 2

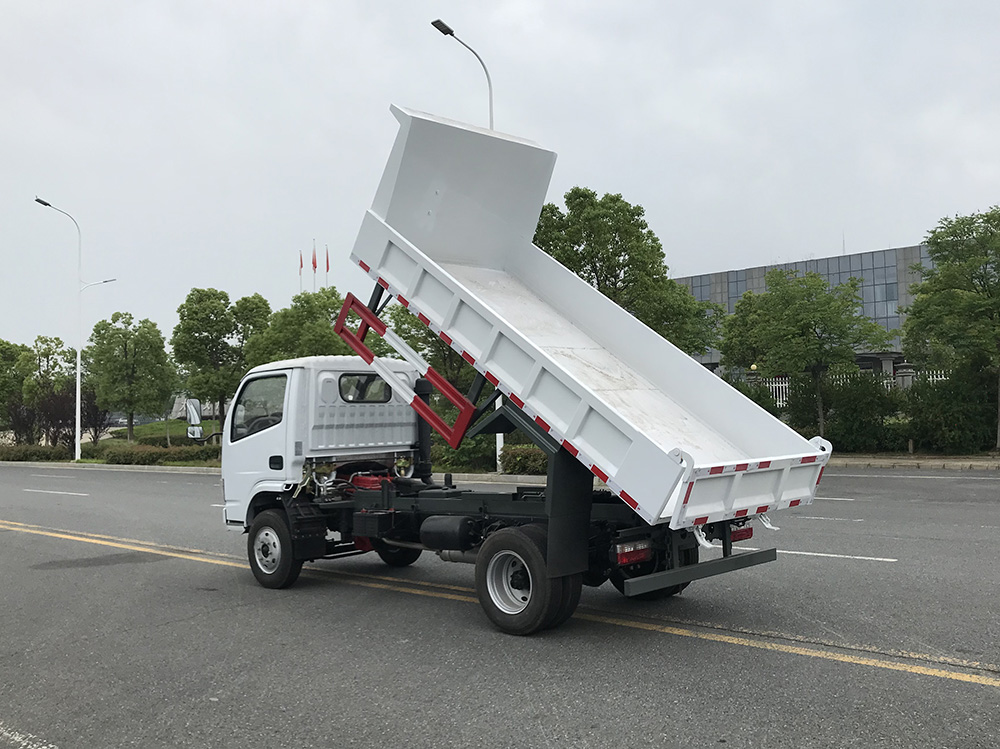

DUMP BODY

Dump Size (LxWxH)

mm

3500 x 1900 x 500

Materials

Carbon Steel

Thickness of deck Floor

mm

4

Thickness of Wall

mm

3

Tipping Angle

degree

50

Loading Type

Manual

Unloading Type

Hydraulic cylinder inclining the body, controlled from the cabin.

Hydraulic Cylinder

Double middle cylinder

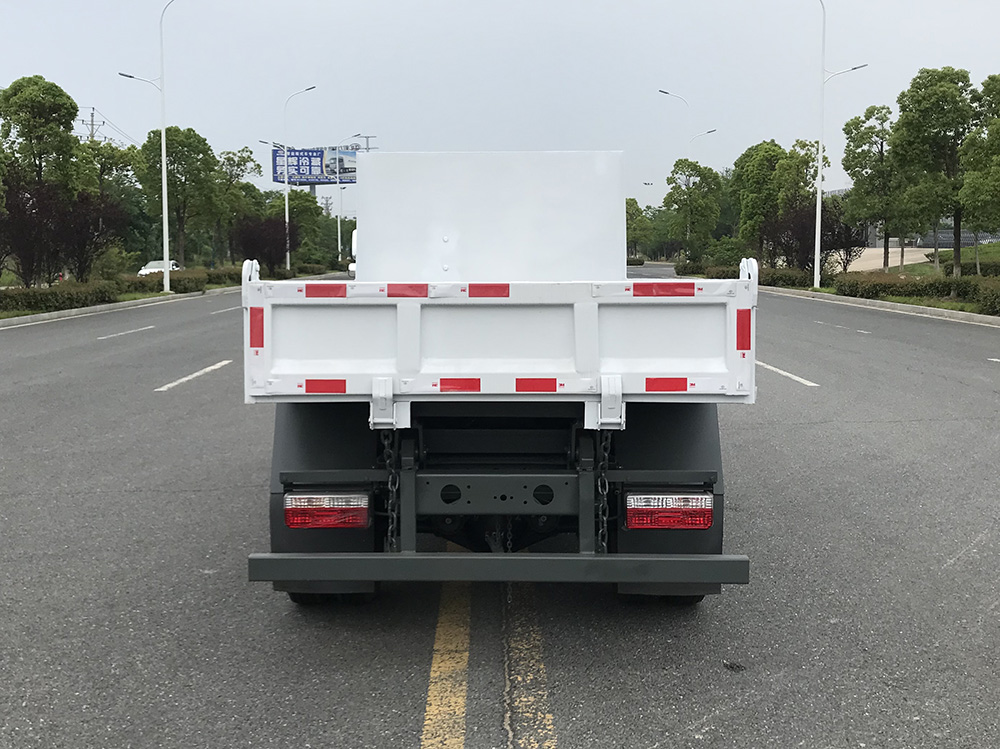

Backdoor/Tailgate

Automatically opens during unloading and automatically closes when not in use.

Raising and lowering time

seconds

25
