Product Name:

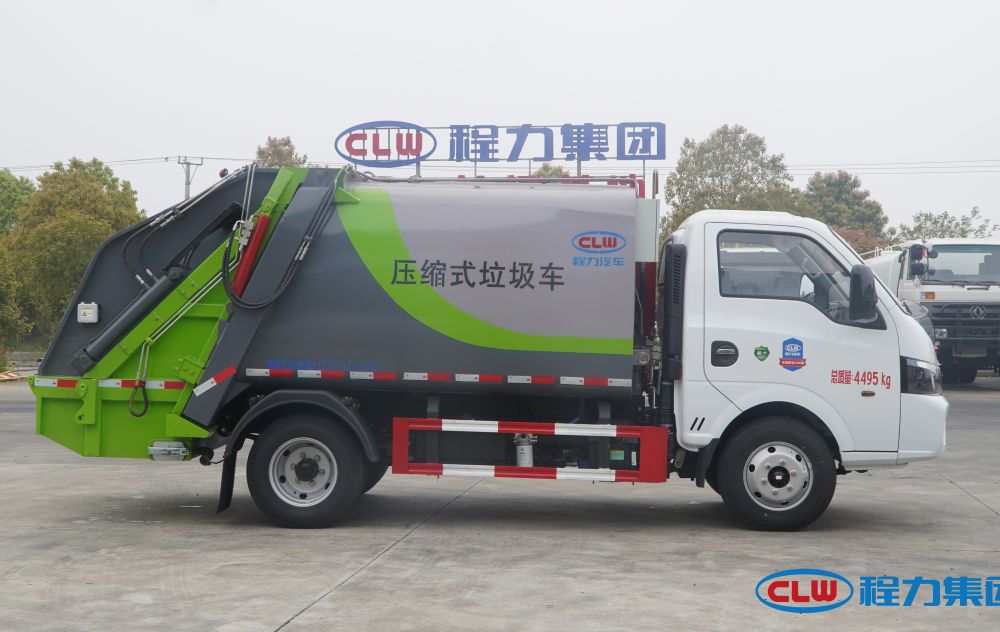

Chengli CL5041ZYS6AQC Compression Garbage Truck

Dimensions:

5995×2090,2150×2450(mm)

Emission standard:

National VI

Cargo box size:

1980×1915×1430(mm)

Gross Vechile Weight (GVW):

4495(Kg)

Approach/departure angle:

20/17(°)

Rated Payload:

500(Kg)

Front/rear overhang

1180/1815(mm)

Curb weight:

3865(Kg)

Maximum speed

110(km/h)

Chassis Parameters

Fuel type:

Diese

Chassis model:

EQ1045S26DD

Number of axles:

2

Front wheel tread:

1505(mm)

Wheelbase:

3000(mm)

Rear wheel tread:

1565(mm)

Number of passengers in the cab:

(people)

Number of springs:

3/4+3

Number of tires:

6(pcs)

Axle load:

1650/2845

Tire specifications:

185R15LT 8PR,6.00R15LT 10PR,6.50R16LT 10PR,6.50R16LT 12PR

Engine Parameters

Engine Model:

Engine Manufacturer

Displacement(ml)

Power(kw)/horsepower(PS):

Q23-132E60

Anhui Quanchai Power Co., Ltd.

2300

97/131

D20TCIF11

Kunming Yunnei Power Co., Ltd.

1999

93/126

D20TCIF62

Kunming Yunnei Power Co., Ltd.

1999

103/140

Other:

The main special device of the vehicle consists of a box and   a compression system, which is used for the collection and removal of   domestic waste; Only the 3000mm wheelbase chassis is selected for   modification; The side protection material is: Q235, the side protection   connection method is: bolt plus welding connection, the rear protection is   replaced by a special device, and the rear protection ground clearance (mm):   430; ABS manufacturer and model: Xiangyang Dongfeng Longcheng Machinery Co.,   Ltd./ABS/ASR-12V-4S/4M; Engine/fuel consumption value (L/100km):   Q23-132E60/11.2, D20TCIF11/11.31, D20TCIF62/11.31; The curb weight of this   model includes the accompanying tools, the cargo compartment weight: 860kg,   the cargo compartment material: T700, the cargo compartment material   thickness: 2.2mm; Optional direct power supply ETC on-board device; Optional   appearance style, optional rear sealing cover.
