Product Name:

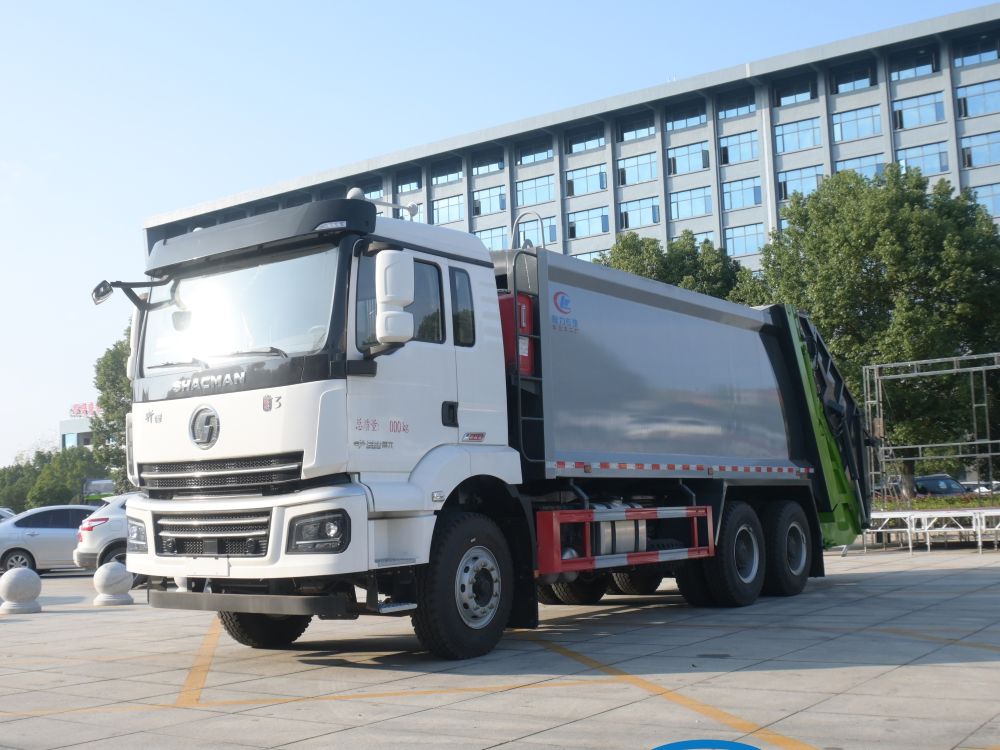

Chengli CL5251ZYS6SJ compression garbage truck

Dimensions:

9980,10030,10180,10230,10260,10310×2500,2550×3450(mm)

Emission standard:

National VI

Cargo box size:

××(mm)

Gross Vechile Weight (GVW):

24700(Kg)

Approach/departure angle:

23/10,23/11(°)

Rated Payload:

8570,8505,9070,9005(Kg)

Front/ rear overhang:

1525/2730,1525/2610(mm)

Curb weight:

16000,15500(Kg)

Maximum speed:

85(km/h)

Chassis Parameters

Fuel type:

Diese

Chassis model:

SX1250MP6444C

Number of axles:

3

Front wheel tread:

2023,2036,2058(mm)

Wheelbase:

4375+1350,4375+1400,4575+1350,4775+1350,4575+1400,4775+1400(mm)

Rear wheel tread:

1860/1860(mm)

Number of passengers in the cab:

(people)

Number of springs:

9/10,10/12,12/12,10/10,9/12,9/13,13/10,3/10,18/15,16/13,16/11

Number of tires:

10(pcs)

Axle load:

7000/18000(Two-axis group)

Tire specifications:

11.00R20,11.00R20 18PR

Engine Parameters

Engine Model:

Engine Manufacturer

Displacement(ml)

Power(kw)/horsepower(PS):

YCK08300-60

Guangxi Yuchai Machinery Co., Ltd.

7698

221/300

YCK08350-60

Guangxi Yuchai Machinery Co., Ltd.

7698

257/349

Other:

1. The main special device of the vehicle is composed of a   box body and a compression system, which is used for the collection and   removal of garbage. Only the chassis with a wheelbase of 4375+1350 (mm) and   4375+1400 (mm) is used. Optional square or curved box body, optional fully   sealed cover device, and optional rear working device. Optional ladder. When   the working device is selected, the corresponding relationship of the overall   length/front overhang/wheelbase/rear overhang/rear extension is (mm): ① Without feeding device:   9980/1525/4375+1350/2730/0, 10030/1525//4375+1400/2730/0; ② Fully sealed bucket device and swing   arm device: 10180/1525//4375+1350/2730/200, 10 230/1525/4375+1400/2730/200;③Turn-over device and bucket device:   10260/1525/4375+1350/2610/400, 10310/1525/4375+1400/2610/400.2. Side material   is Q235, connected by welding; rear protection is replaced by a special   device, the lower edge is 500mm above the ground. 3. Optional cab with   chassis; ABS model: ZQFB-V, ABS manufacturer: Xi'an Zhengchang Electronics   Co., Ltd. Install a driving recorder with satellite positioning function.   Correspondence between engine model and fuel consumption value (L/100km):   YCK08300-60/32.2, YCK08350-60/31.84, optional direct power supply ETC   vehicle-mounted device. Optional box appearance.
