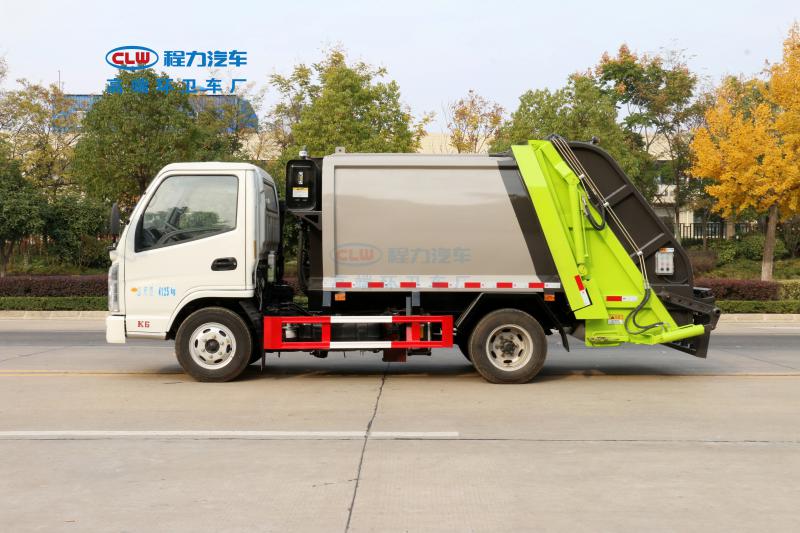

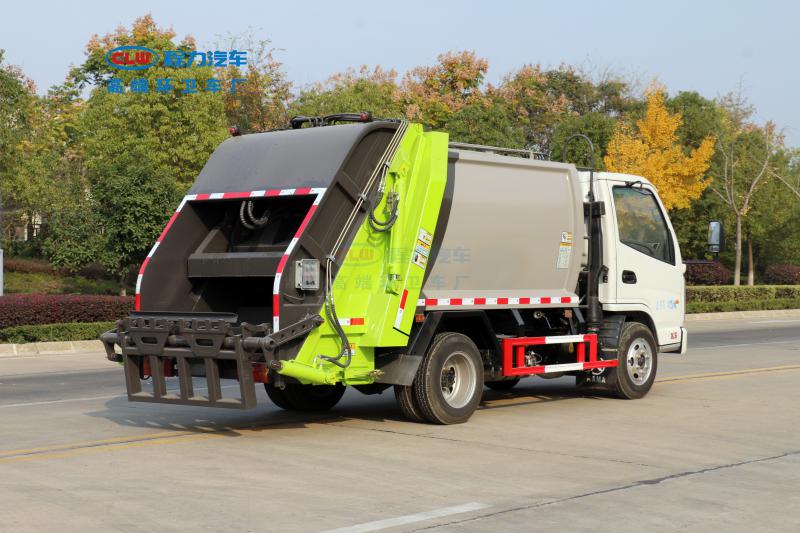

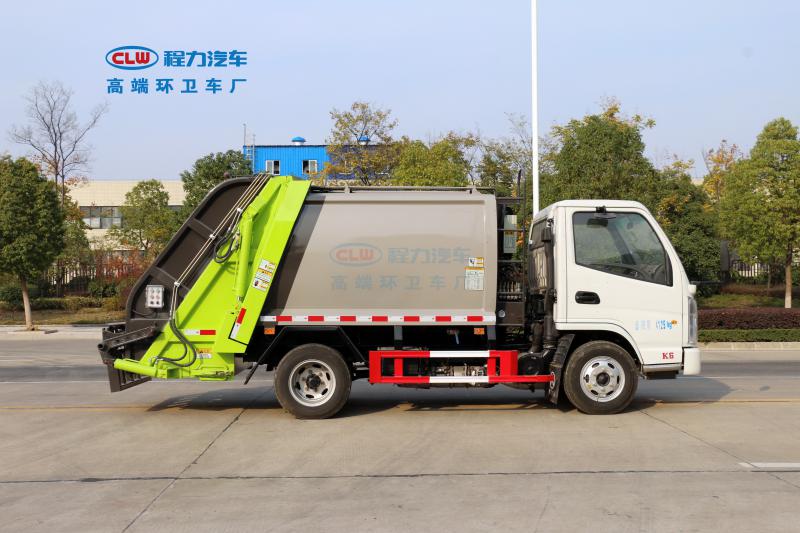

| Product Name | Brand Chengliwei Garbage Compactor Truck CL5040ZYS6GH |
| Total mass (kg) | 4495 | Tank volume (m3) |
|
| Rated mass (kg) | 500 | Dimensions (mm) | 5995, 5600X2000X2280 |
| Curb weight (kg) | 3865 | Cargo size (mm) | XX |
| Number of passengers(person) | 2 | Maximum load of saddle (kg) |
|
| Approach/Departure Angle (°) | 19/13 | Front /rear suspension(mm) | 1100/1700 |
| Axle load(kg) | 1620/2875 | Maximum speed (km/h) | 100 |
| 【CHASSIS TECHNICAL PARAMETERS】 |
|
|
|
| Chassis model | KMC1040B260DP6 | Chassis Name | Class II Cargo Truck Chassis |
| Chassis Brand | KAMA | Manufacturer | Shandong KAMA Automobile Manufacturing Co., Ltd. |
| Number of Axles | 2 | Number of tires | 6 |
| Wheelbase(mm) | 2.80026E+11 | Tire specifications | 6.00-15LT 10PR,6.00R15LT,185R15LT |
| Number of leaf springs | 9/8+4,3/5+3,3/6+4 | Front track(mm) | 1395, 1420 |
| Fuel type | Diesel Oil | Rear Track(mm) | 1340, 1390 |
| Emissions according to standards | GB17691-2018; Euro Ⅵ |
|
|
| Engine Model | Engine Manufacturer | Engine Displacement | Engine Power |
| D20TCIF1 | Kunming Yunnei Power Co., Ltd. | 1999 | 93KW |
