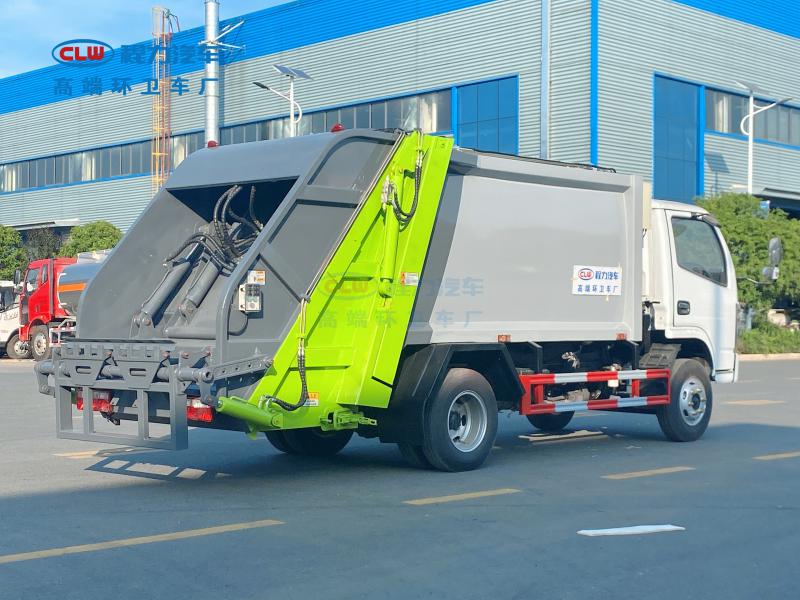

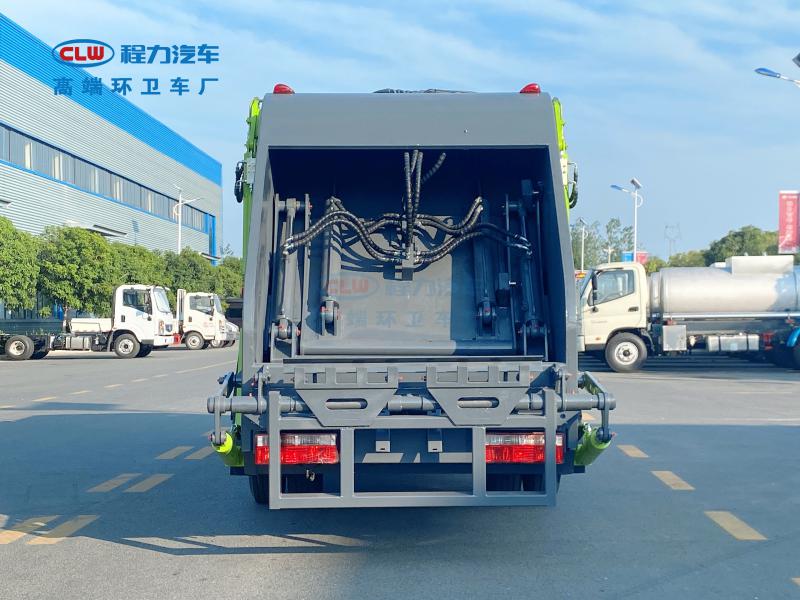

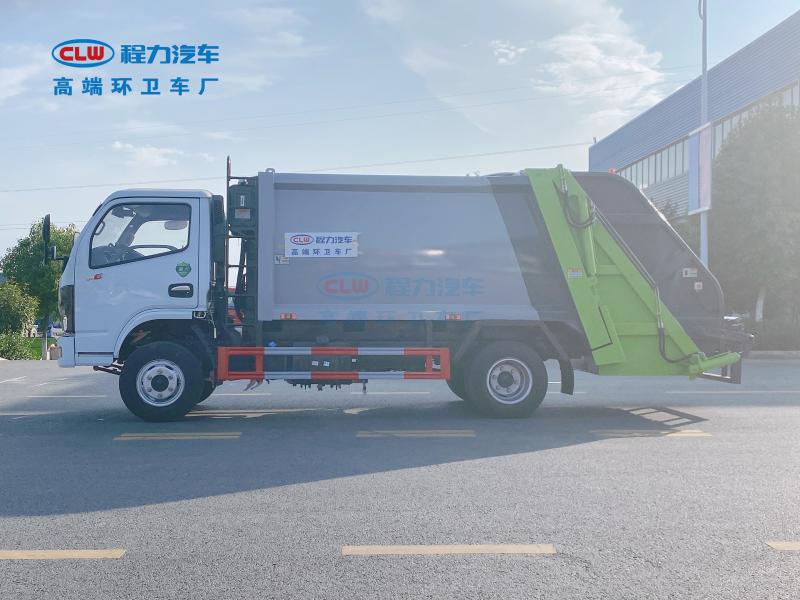

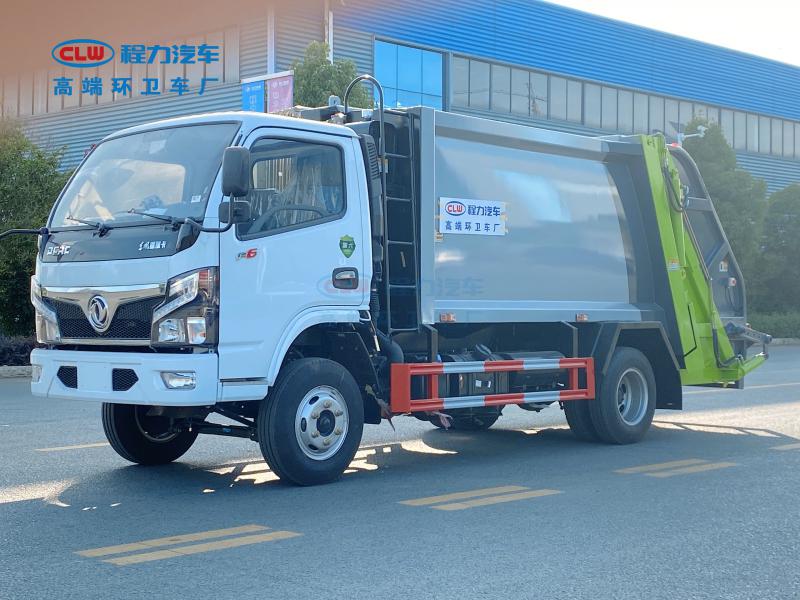

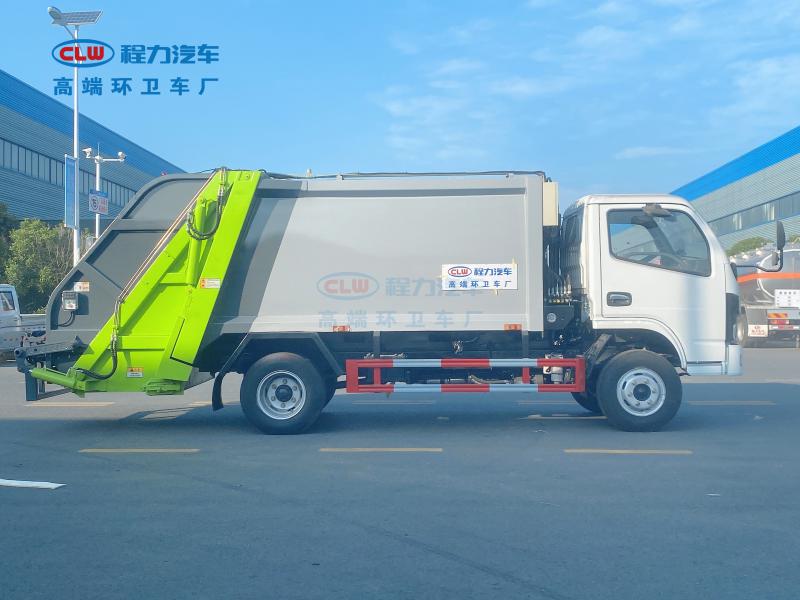

| Product Name | Brand Chengliwei Garbage Compactor Truck CLW5040ZYS6 |
| Total mass (kg) | 7360 | Tank volume (m3) |
|
| Rated mass (kg) | 1630 | Dimensions (mm) | 6970X2080X2570 |
| Curb weight (kg) | 5600 | Cargo size (mm) | XX |
| Number of passengers(person) | 2 | Maximum load of saddle (kg) |
|
| Approach/Departure Angle (°) | 27.7/12 | Front /rear suspension(mm) | 1055/2052 |
| Axle load(kg) | 2640/4720 | Maximum speed (km/h) | 110 |
| 【CHASSIS TECHNICAL PARAMETERS】 |
| Chassis model | EQ1075SJ3CDF | Chassis Name | Class II Cargo Truck Chassis |
| Chassis Brand | Dongfeng | Manufacturer | Dongfeng Motor Co.,Ltd. |
| Number of Axles | 2 | Number of tires | 6 |
| Wheelbase(mm) | 3308 | Tire specifications | 7.00R16,7.50R16LT 8PR, |
| Number of leaf springs | 6/6+5,3/3+3,2/3+2,5/7+3, | Front track(mm) | 1525,1519,1503,1613(mm) |
| Fuel type | Diesel Oil | Rear Track(mm) | 1498,1516,1586,1670,1650,1800(mm) |
| Emissions according to standards | GB17691-2018; Euro Ⅵ |
| Engine Model | Engine Manufacturer | Engine Displacement | Engine Power |
| D20TCIF1 | Kunming Yunnei Power Co., Ltd. | 1999 | 93 |
| Q23-115E60 | Anhui Quanchai Power Co., Ltd. | 2300 | 85 |
