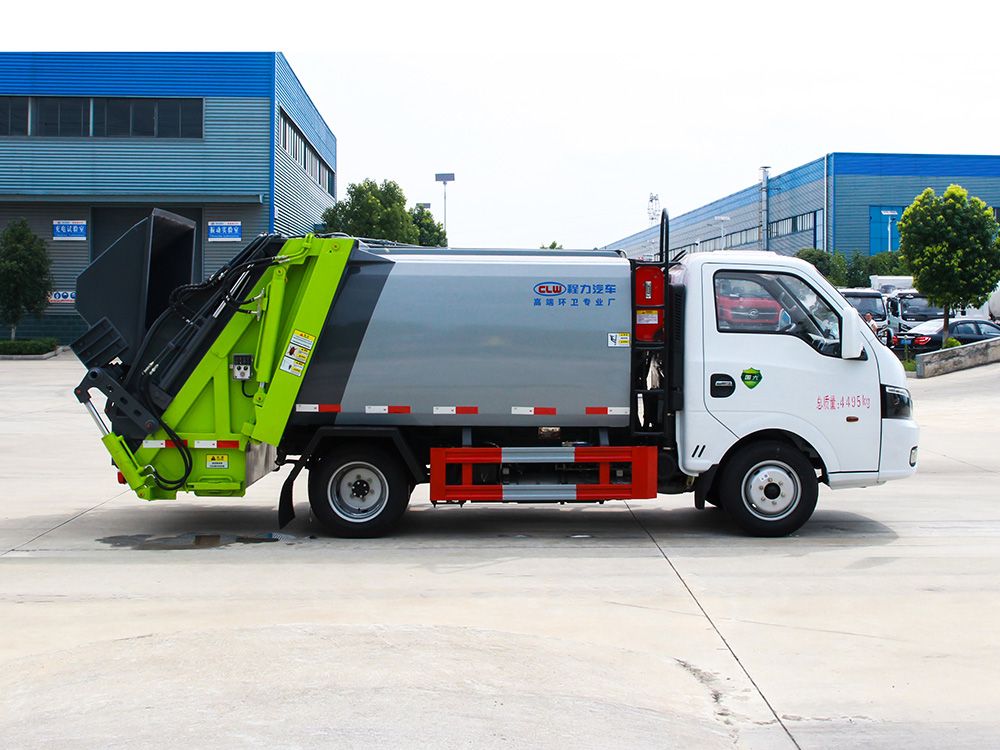

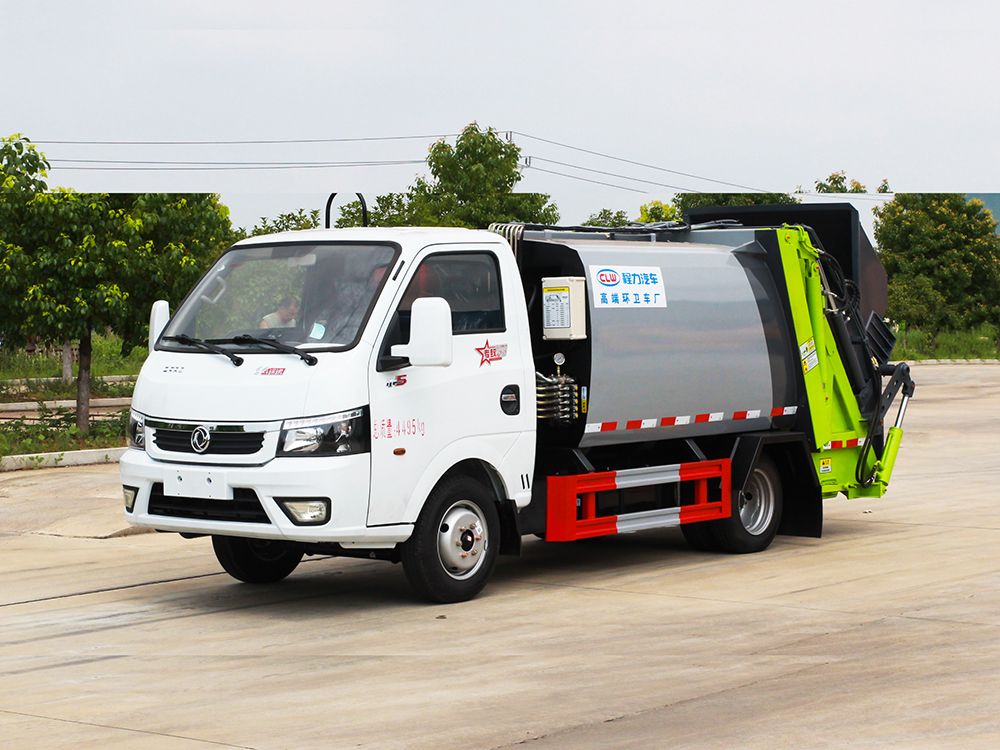

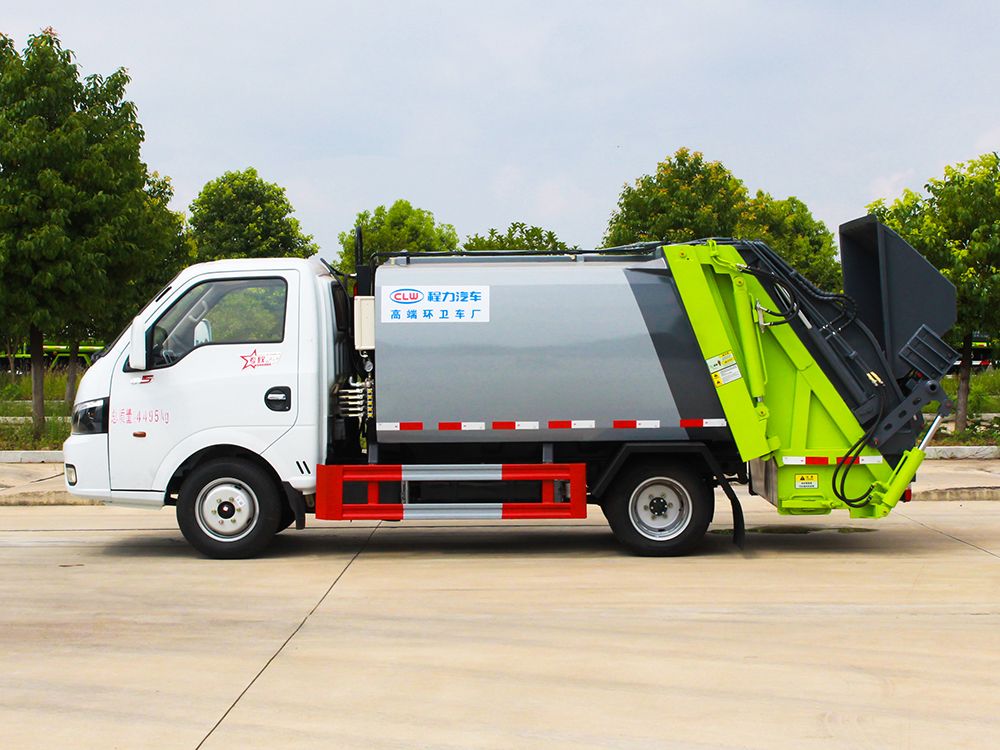

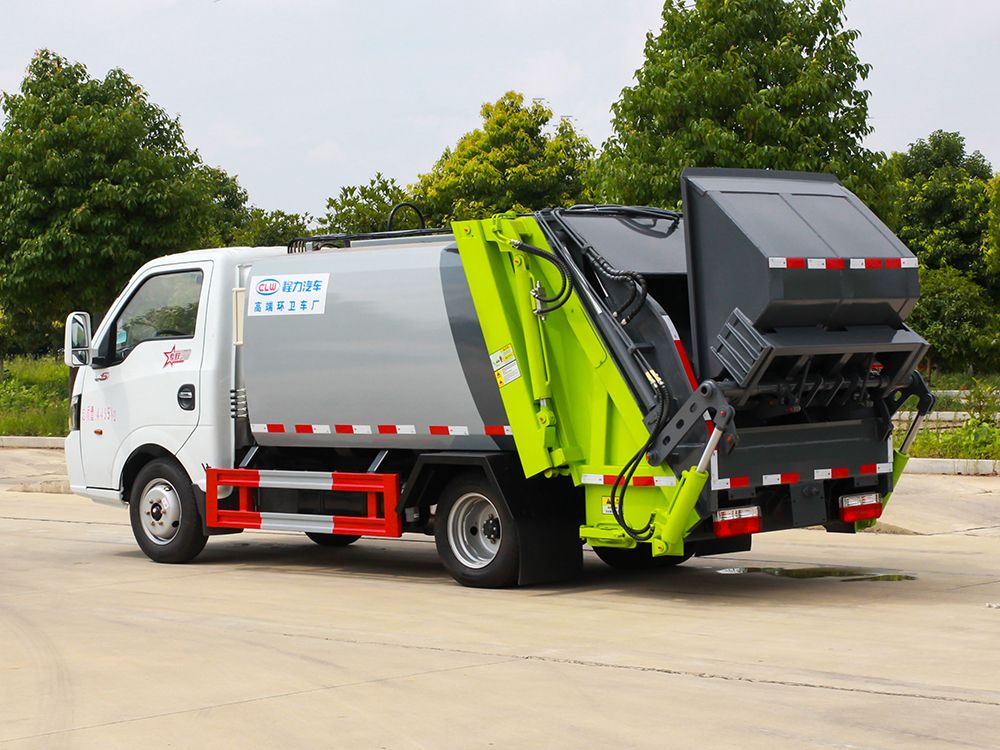

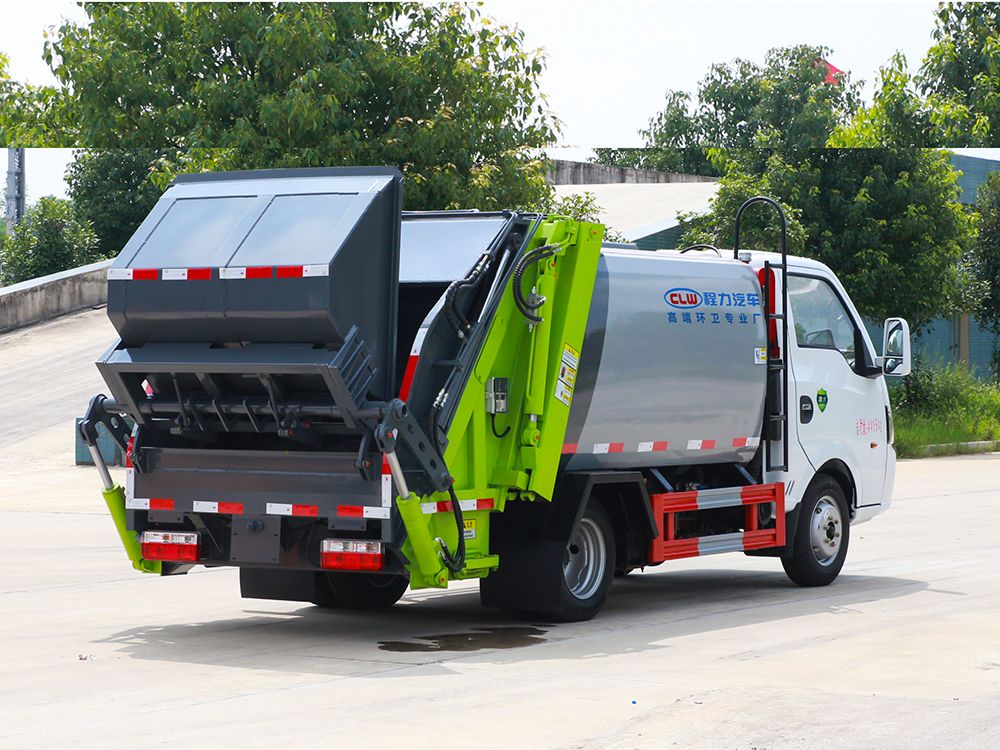

| Product Name | Brand Chengliwei Garbage Compactor Truck CL5041ZYS6GH |
| Total mass (kg) | 4495 | Tank volume (m3) |
|
| Rated mass (kg) | 525 | Dimensions (mm) | 5998X2000X2250 |
| Curb weight (kg) | 3840 | Cargo size (mm) | XX |
| Number of passengers(person) | 2 | Maximum load of saddle (kg) |
|
| Approach/Departure Angle (°) | 21/12 | Front /rear suspension(mm) | 1190/1558 |
| Axle load(kg) | 1650/2845 | Maximum speed (km/h) | 110 |
| 【CHASSIS TECHNICAL PARAMETERS】 |
|
|
|
| Chassis model | EQ1045SJ16DC | Chassis Name | Class II Cargo Truck Chassis |
| Chassis Brand | Dongfeng | Manufacturer | Dongfeng Motor Co.,Ltd. |
| Number of Axles | 2 | Number of tires | 6 |
| Wheelbase(mm) | 2800, 3000, 3200, 3400 | Tire specifications | 185R15LT 8PR,6.00R15 10PR, |
| Number of leaf springs | 3/5 | Front track(mm) | 1369, 1387 |
| Fuel type | Diesel Oil | Rear Track(mm) | 1242, 1342 |
| Emissions according to standards | GB17691-2018; Euro Ⅵ |
|
|
| Engine Model | Engine Manufacturer | Engine Displacement | Engine Power |
| Q23-95E60 | Anhui Quanchai Power Co., Ltd. | 2300 | 70KW |
