Product Name:

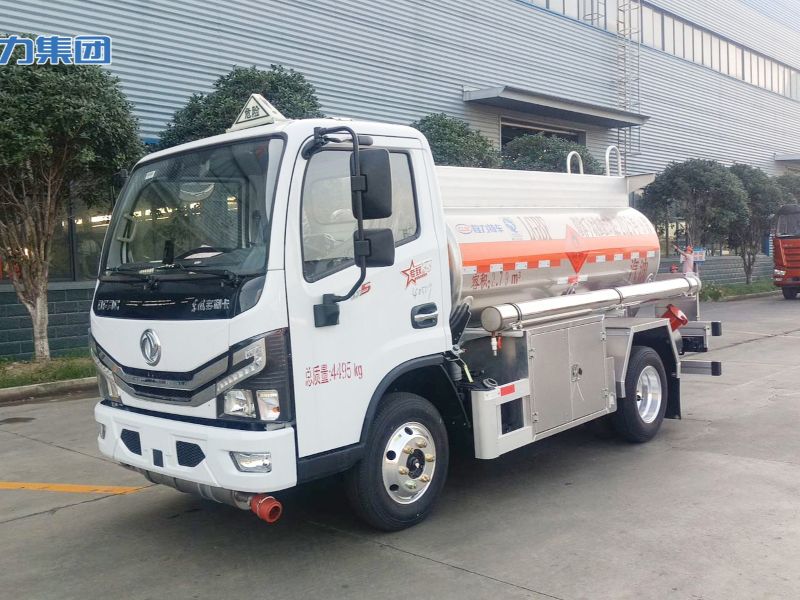

Chengli CL5040GJY6BWN fuel truck

Dimensions:

5290×2000×2500(mm)

Emission standard:

National VI

Cargo box size:

××(mm)

Gross Vechile Weight (GVW):

4495(Kg)

Approach/departure   angle:

21/13(°)

Rated Payload:

1865(Kg)

Front/ rear   overhang:

1045/1545(mm)

Curb weight:

2500(Kg)

Maximum speed:

80(km/h)

Chassis Parameters

Fuel type:

Diesel

Chassis model:

EQ1045SJ3CDCWXP

Number of axles:

2

Front wheel tread:

1521(mm)

Wheelbase:

2700(mm)

Rear wheel tread:

1512,1458(mm)

Number of passengers in the cab:

(people)

Number of springs:

5/7+3,6/7+4,3/3+3,5/4+3,6/4+3

Number of tires:

6(pcs)

Axle load:

1795/2700

Tire specifications:

6.50R16LT 10PR

Engine Parameters

Engine Model:

Engine Manufacturer

Displacement(ml)

Power(kw)/horsepower(PS):

Q23-115E60

Anhui Quanchai Power Co., Ltd.

2300

85/115

Q23-132E60

Anhui   Quanchai Power Co., Ltd.

2300

97/131

Other:

ABS model:   ABS/ASR-12V-4S/4M; ABS manufacturer: Xiangyang Dongfeng Longcheng Machinery   Co., Ltd. Installed with speed limiter; Speed limiter (km/h): 80; Maximum   density of transportable medium: 700 kg/m3. Total capacity of tank: 2.79   cubic meters, effective volume of tank: 2.66 cubic meters. Overall dimensions   of tank (length ×   major axis ×   minor axis) (mm): 3100 ×   1300 ×   950. Curb weight includes on-board tools, spare tire, and fire extinguisher.   Models and manufacturers of refueling machines that can be equipped:   BL1111Z/Zhuhai Beilin Refueling Equipment Co., Ltd. Zhongshan Branch,   HS1812B/Token Hengshan Technology (Guangzhou) Co., Ltd., SKES-1112/Henghe   Jiahua Technology Co., Ltd., SKDS-2001A/Shanghai Bolai Machinery Co., Ltd.,   SK20QF-111A, SK20QF-222A/Zhengzhou Sanjin Petroleum Equipment Manufacturing   Co., Ltd., CS20D1110F/Zhengxing Technology Co., Ltd., JSK-70B1121CZ,   JSK-70B1121C, JSK45B1121C/Wen'en Jialijia (Beijing) Petrochemical Equipment   Co., Ltd., HT- YV60E/Suizhou Huate Special Equipment Co., Ltd.,   XTST121BF1/Xingtai Zhengruntong Technology Development Co., Ltd.,   BL1211Z/Guangdong Beilin Energy Equipment Co., Ltd., FBXO(EX), ACZS-1112,   ACZS-1111/Yongjia County Aocheng Hardware Products Co., Ltd., HT-CZ0111,   HT-CZ1111/Hubei Huate Special Equipment Co., Ltd., ZH3111/Foshan Zhongze   Electromechanical Technology Co., Ltd., ZY18111Z, ZY18111Y, ZY18222Z,   ZY18222Y, ZY18424J, ZY18424Y/Anhui Zhongyuan Instrument Co., Ltd. Connection   method: The left and right side protection and the rear lower protection are   both connected by bolts. Protection material: aluminum alloy, rear protection   section size (mm): 120×60,   rear lower protection ground clearance (mm): 340. Only chassis radial tires   are used, the front wheels of the vehicle are equipped with disc brakes,   front exhaust pipes, and the vehicle is suitable for the transportation of   dangerous goods. Transport vehicle type: FL type. The steering wheel is   equipped with a tire puncture emergency protection device. The vehicle can be   equipped with an optional direct power supply ETC vehicle-mounted device,   which has
