Product Name:

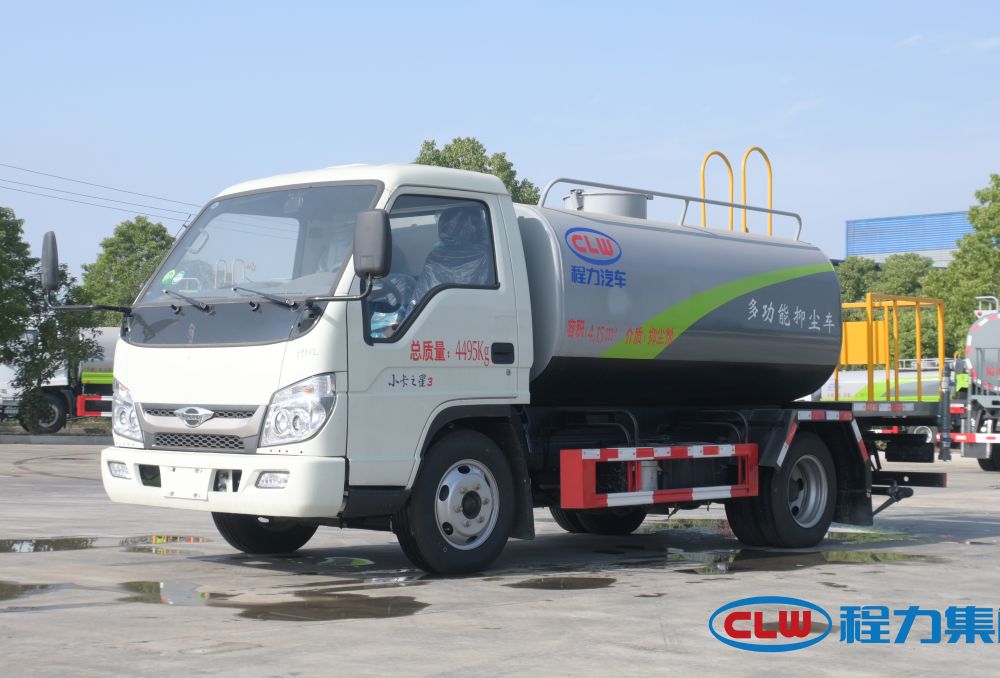

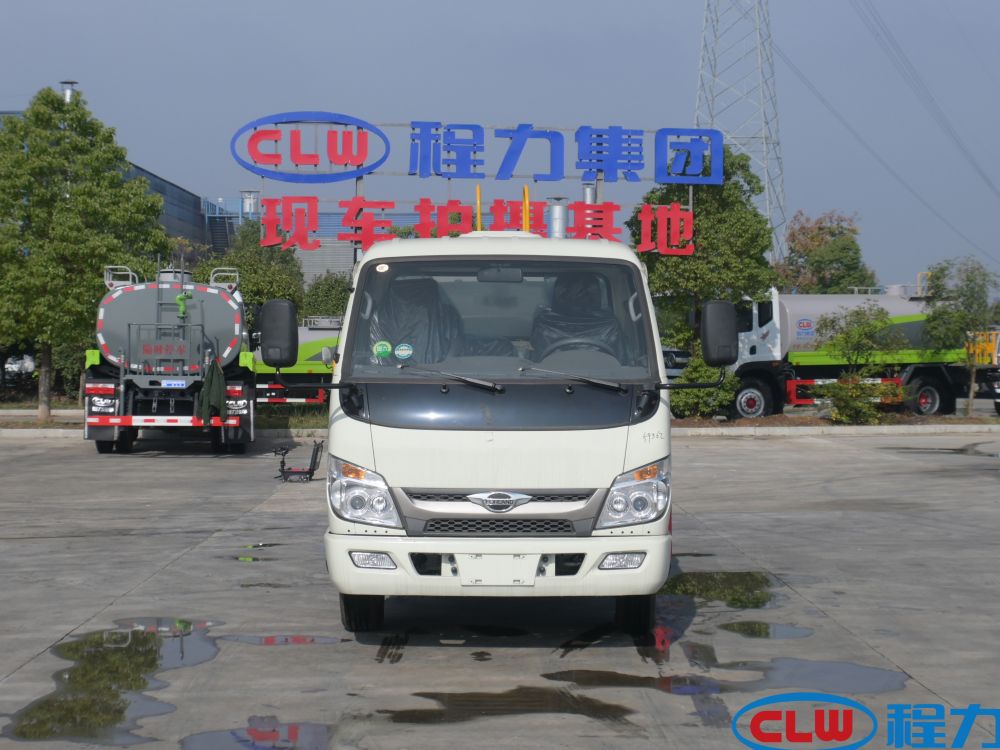

Chengli CL5040TDY6AQC   multifunctional dust suppression vehicle

Dimensions:

5800×2050×2700(mm)

Emission standard:

National VI

Cargo box size:

××(mm)

Gross Vechile Weight (GVW):

4495(Kg)

Approach/departure angle:

20/11(°)

Rated Payload:

1255(Kg)

Front/ rear overhang:

1130/1820(mm)

Curb weight:

3110(Kg)

Maximum speed:

105(km/h)

Chassis Parameters

Fuel type:

Diesel

Chassis model:

BJ1045V9JB5-54

Number of axles:

2

Front wheel tread:

1495,1415,1510(mm)

Wheelbase:

2850,3360,2800(mm)

Rear wheel tread:

1435,1455(mm)

Number of passengers in the cab:

(people)

Number of springs:

7/7+5,7/4+3,7/5+2,3/5+2,2/3+2,3/3+3

Number of tires:

6(pcs)

Axle load:

1617/2878

Tire specifications:

6.50R16LT 10PR,195/75R16 10PR

Engine Parameters

Engine Model:

Engine Manufacturer

Displacement(ml)

Power(kw)/horsepower(PS):

Q23-115C60

Dongfeng Chaoyang   Chaochai Power Co., Ltd.

2300

85/115

Q23-115E60

Anhui Quanchai   Power Co., Ltd

2300

85/115

Q23-132E60

Anhui Quanchai   Power Co., Ltd

2300

97/131

Q25A-150E60

Anhui Quanchai   Power Co., Ltd

2496

110/149

Q25A-150C60

Anhui Quanchai   Power Co., Ltd

2496

110/149

Other:

1. Only a chassis   with a wheelbase of 2850mm is used. 2. The main purpose of the vehicle is to   suppress dust, reduce haze, and remove dust. The main devices are tanks,   water pumps, and spray devices; The effective volume of the tank is 4.15   cubic meters, and the overall dimensions of the tank (length ×   width ×   height) (mm) are: 2800 ×   1650 ×   1150; 3. The side and rear protection materials are made of Q235 material and   bolted; the cross-sectional dimensions of the rear protection (height ×   width) (mm): 100 × 50, and the lower edge is 350mm above the ground; 4. Optional new   front grille and new logo are optional with the chassis. Optional new front   surround; optional side appearance of the tank, optional rear platform and   spray device style, optional arrow lights, optional central spray device,   optional chassis accessories air tank urea tank installation position; 5. The   ABS system control mode is 4S/4M, air brake: ABS model is CM4XL-4S/4M, and   the manufacturer is Guangzhou Ruili Komi Automotive Electronics Co., Ltd.   Liquid brake: ABS model is CM4YL, and the manufacturer is Guangzhou Ruili   Komi Automotive Electronics Co., Ltd.
