Product Name:

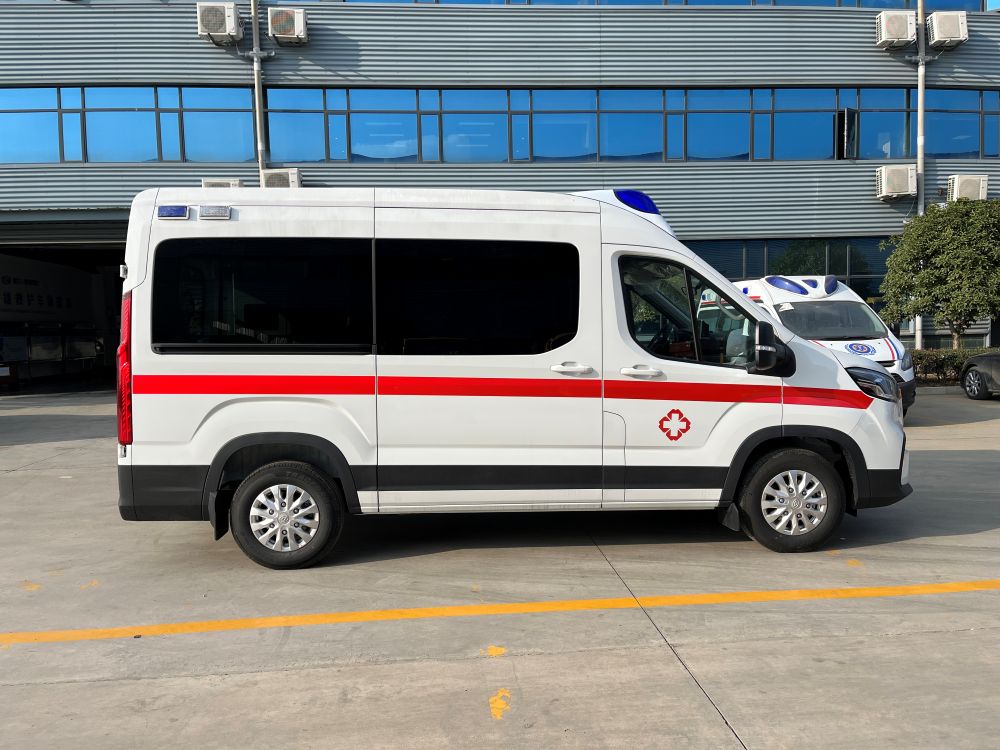

Chengli CL5047XJH6YS ambulance

Dimensions:

5546,5490,5498×2062×2685,2600(mm)

Emission standard:

National VI

Cargo box size:

××(mm)

Gross Vechile Weight (GVW):

3550(Kg)

Approach/departure angle:

20/18,20/17(°)

Rated Payload:

(Kg)

Front/ rear overhang:

1020/1160,1020/1104,1020/1112(mm)

Curb weight:

2690(Kg)

Maximum speed:

145,155,160(km/h)

Chassis Parameters

Fuel type:

Diesel

Chassis model:

SH6551H2DB

Number of axles:

2

Front wheel tread:

1732(mm)

Wheelbase:

3366(mm)

Rear wheel tread:

1743(mm)

Number of passengers in the cab:

7,6(people)

Number of springs:

-/3

Number of tires:

4(pcs)

Axle load:

1660/1890

Tire specifications:

235/65R16LT

Engine Parameters

Engine Model:

Engine Manufacturer

Displacement(ml)

Power(kw)/horsepower(PS):

SC20M150Q6

Shanghai   New Energy Automobile Technology Co., Ltd.

1996

110/149

SC20M177Q6

Shanghai New Energy Automobile   Technology Co., Ltd.

1996

130/176

Other:

1. Only 3366mm wheelbase is used; 2. The main special   equipment of the vehicle is oxygen tank, stretcher, medical cabinet and other   special equipment, which are mainly used for emergency rescue and transfer of   wounded and sick people; 3. The roof is equipped with optional ambulance sign   lamps, optional flashing lights, ventilation fans. Optional roof forehead   platform installation sign lamps. Optional blind windows. Optional front   grille, headlights, daytime running lights, wheels, wheel covers, sliding side   windows with the original vehicle. The curb weight is 2690KG when equipped   with heavy medical equipment cabinets and more medical equipment; 4. ABS   model: ABS 9, ABS manufacturer: Bosch Automotive Components (Suzhou) Co.,   Ltd., the vehicle is equipped with a direct-powered ETC vehicle-mounted   device. 5. Optional warning lights, the corresponding vehicle height is   2600mm, 6. Optional 6-passenger interior, select VIN; The vehicle is equipped   with an event data recording system (EDR); Optional warning lights appearance   style; Optional front grille and rear tail label with the original vehicle;   The maximum speed is 145km/h when matched with a manual transmission; The   maximum speed is 155km/h when matched with a 6-speed automatic transmission;   The maximum speed is 160km/h when matched with an 8-speed automatic   transmission.
