Product Name:

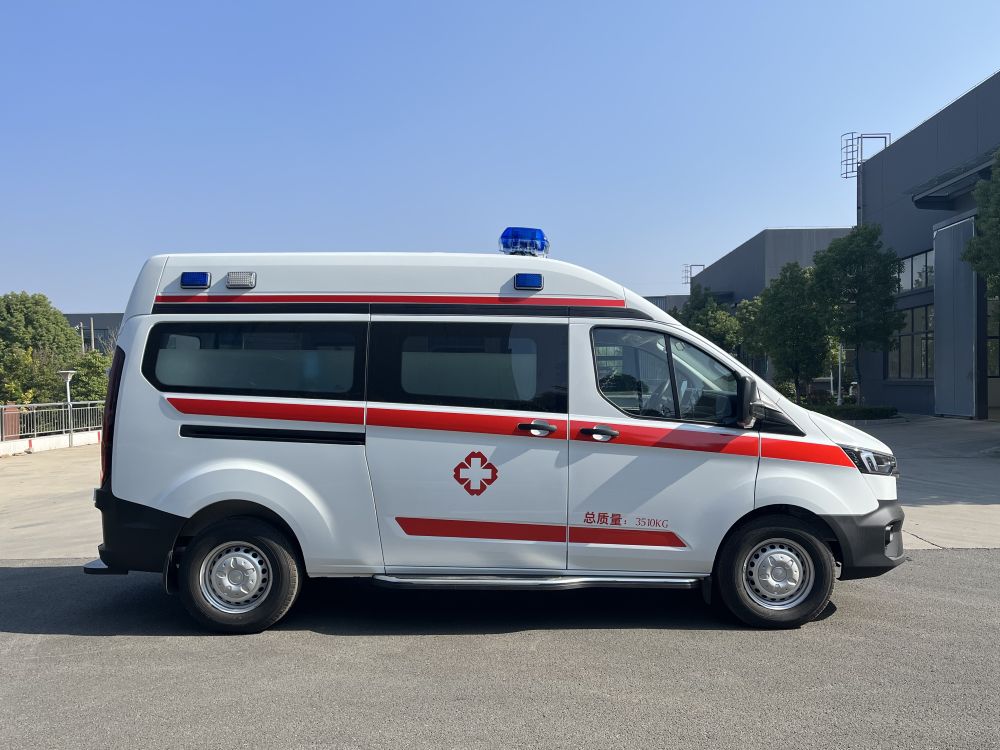

Chengliwei CLW5033XJHJX6 ambulance

Dimensions:

5341,5521×2032×2275,2407,2460,2480,2560(mm)

Emission standard:

National VI

Cargo box size:

××(mm)

Gross Vechile Weight (GVW):

3300(Kg)

Approach/departure angle:

21/25(°)

Rated Payload:

(Kg)

Front/ rear overhang:

1014/1027,1014/1207(mm)

Curb weight:

2470,2260(Kg)

Maximum speed:

156,100(km/h)

Chassis Parameters

Fuel type:

Chassis model:

JX6533P-M6

Number of axles:

2

Front wheel tread:

1736(mm)

Wheelbase:

3300(mm)

Rear wheel tread:

1720(mm)

Number of passengers in the cab:

5-7(people)

Number of springs:

-/1,-/2

Number of tires:

4(pcs)

Axle load:

1455/1845

Tire specifications:

215/65R16C,215/75R16LT

Engine Parameters

Engine Model:

Engine Manufacturer

Displacement(ml)

Power(kw)/horsepower(PS):

ECOBOOST4G20B6L

Jiangling Motors   Co., Ltd.

1997

149/202

Other:

The vehicle is   equipped with special devices such as medical equipment cabinets, oxygen   cylinders, stretchers, disinfection lamps, sign lights and sirens; the   optional low-top roof warning light is 2275mm high. The corresponding height   of the mid-top special-shaped warning light is 2407, 2480mm, the height of   the mid-top special-shaped warning light with ventilation fan is 2460mm, and   the optional mid-top roof warning light is 2560mm high. ABS system controller   model: EV5051, manufacturer: Bosch Automotive Components (Suzhou) Co., Ltd.,   engine maximum net power: 147kW. The optional rear pedal length is 5521mm.   Optional different appearance styles. The vehicle can be equipped with a   direct power supply ETC on-board device. The vehicle is equipped with an automobile   event data recording system (EDR). Engine: ECOBOOST4G20B6L corresponding fuel   consumption value (WLTC) 12.39L/100km.
