[Technical Parameters of Ambulance] | |||
Brand | Chengli Wei | Model | CLW5042XJHNJ6 |
GVW (kg) | 4000 | Curb weight (kg) | 2970,2830 |
Rated Payload (kg) | -- | Dimensions (mm) | 5670*2011*2726,2776 |
Rated passenger | 6-7(person) | ||
Approach angle/departure angle (°) | 16.5/15 | Front suspension/ Rear suspension (mm) | 1002/1368 |
Axle load (kg) | 1500/2500 | Maximum speed (km/h) | 140,130 |
【Chassis Technical Parameters】 | |||
Chassis model | NJ6576ECM | Brand | IVECO |
Manufacturer | Nanjing Iveco Automobile Co., Ltd. | ||
Number of axes | 2 | Number of tires | 6 |
Wheelbase (mm) | 3300 | ||
Tire specifications | 195/75R16LT | ||
Number of leaf spring | 1/2,1/3,1/- | Front track (mm) | 1742 |
Fuel type | Diesel Oil | Rear track (mm) | 1538 |
Emission standard | GB17691-2018 Euro VI, GB3847-2005 | ||
Engine model | Engine manufacturer | Displacement | Engine power |
F1AE8481D | Nanjing Iveco Automobile Co., Ltd. | 2287 | 95(kw)/129.2(ps) |
Medical cabin configuration:
Location space | Serial number | Project | Remark | |
Basic Configuration | ||||
1 | High-power air conditioner for medical cabin | |||
2 | High-power heater for medical cabin | |||
Circuits and Electrical Appliances | ||||
Alarm and warning system | 1 | Embedded warning lights | ||
2 | 100W alarm and handheld control | |||
3 | Blue tail flashes | |||
4 | Blue flashes on the left and right sides | |||
In-car Power System | 3 | 1000W Sine Wave Inverter System | ||
5 | Integrated circuit integrated control and protection system | |||
6 | AC circuit protection system | |||
7 | Medical cabin integrated switch control panel | |||
8 | National standard 220V power port | 2 pcs | ||
9 | National standard 12V power jack | 2 pcs | ||
10 | Top LED lighting | 4 pcs | ||
11 | Inlaid circular disinfection lamp | |||
12 | ※Can be forward and reverse ventilation fan | Kaloshi | ||
13 | Front and back intercom | |||
14 | Rear light system in the car | |||
Oxygen circuit and oxygen | ||||
Oxygen supply system | 1 | 2nos 10-liter medical oxygen cylinders and special shock-absorbing clamps | ||
2 | Hidden oxygen piping system | |||
3 | 2nos German standard oxygen ports installed on the column of the medical cabin | |||
4 | Car oxygen socket (available for ventilator and humidifier) | |||
5 | 1pcs humidifying bottle | German standard | ||

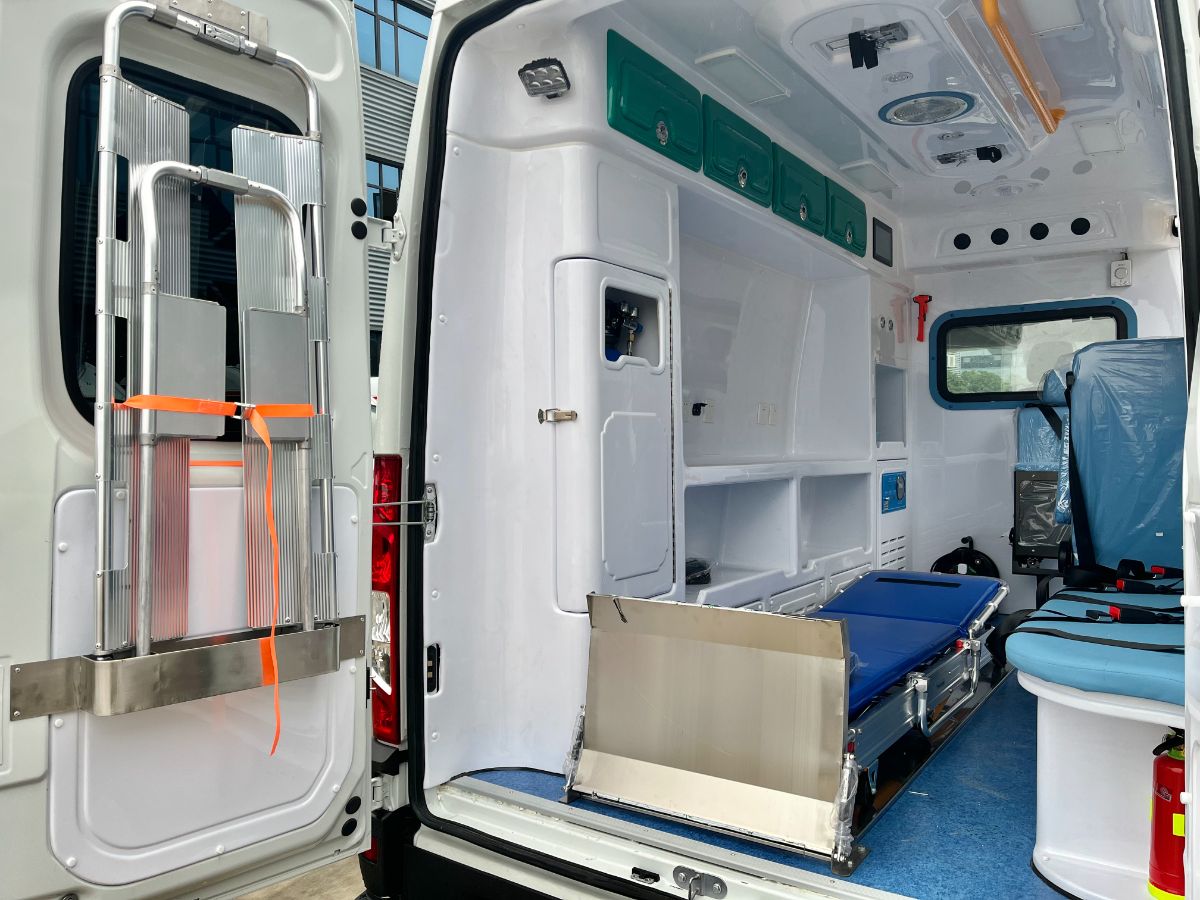

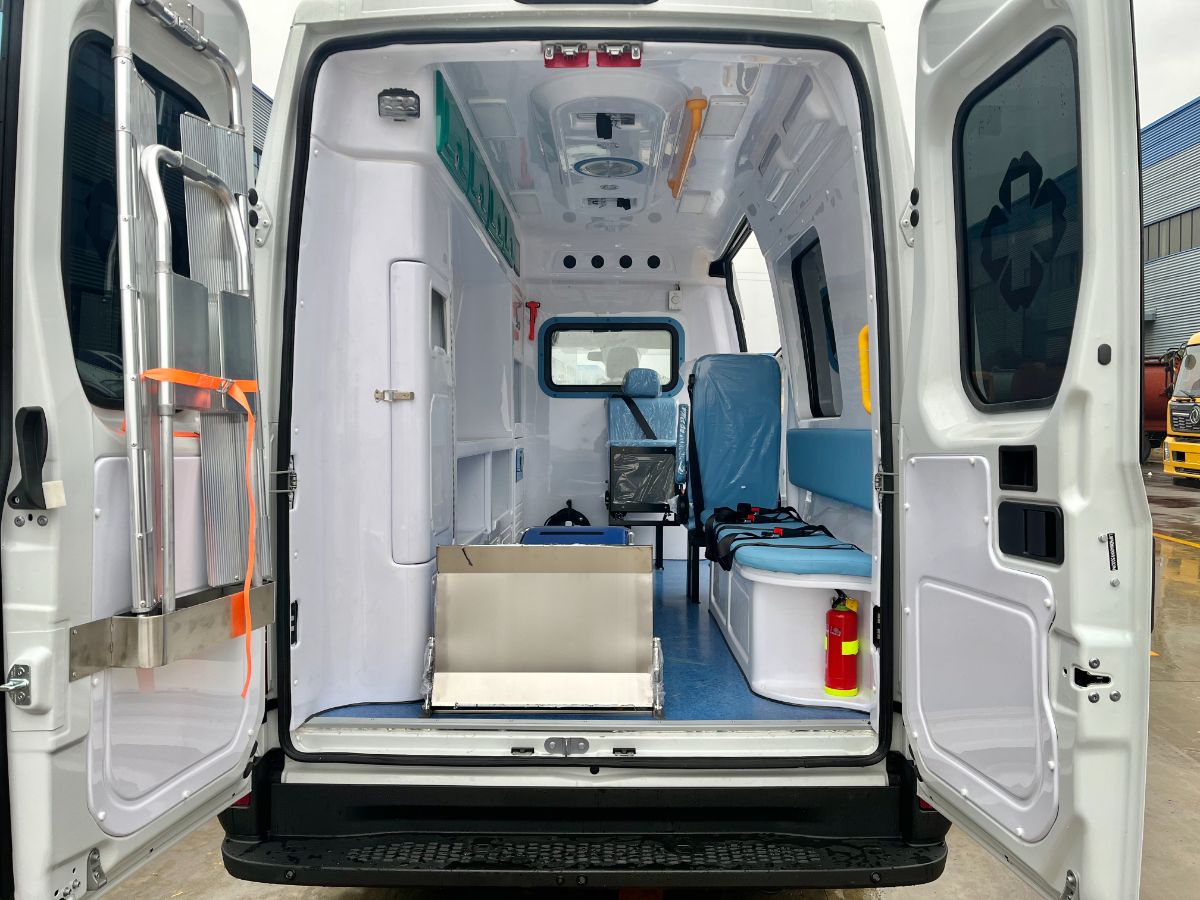

Medical cabin production | ||||
Inside the medical cabin | 1 | Polymer hard top interior is easy to clean and disinfect | ||
2 | Macromolecular material special-shaped middle partition wall | |||
3 | Transparent sliding observation window in the partition wall | |||
4 | Walker board medical long wall cabinet on the upper left | |||
5 | Walker board medical equipment and storage cabinet in the middle left | |||
6 | Walker board vertical oxygen cabinet at the left rear | |||
7 | Hidden safety embedded parts installed in the whole vehicle | |||
8 | A full set of blue anti-collision soft wall in the medical cabin | |||
9 | Environmentally friendly wear-resistant, non-slip blue medical floor and cushion | |||
Seat | ||||
Seat system | 1 | 1 reverse folding soft seat | ||
2 | 1 seat with independent backrest installed on the right side | |||
3 | Long horizontal soft-packed seat and safety belt for 2 people on the right | |||
First aid assistance | ||||
medical system | 1 | Stretcher | ||
2 | Stretcher pads and guides | |||
3 | Sliding infusion stand 1 | |||
4 | Fire extinguisher | |||

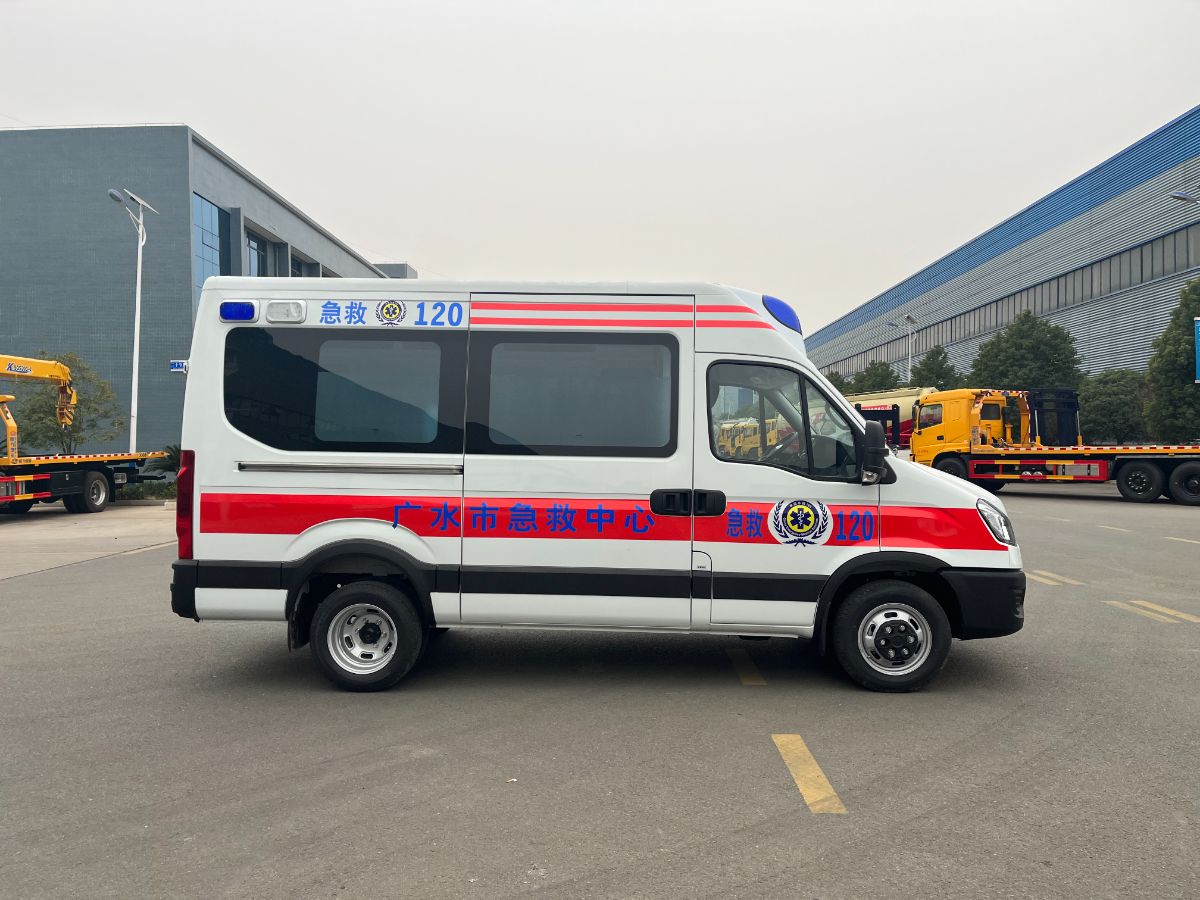

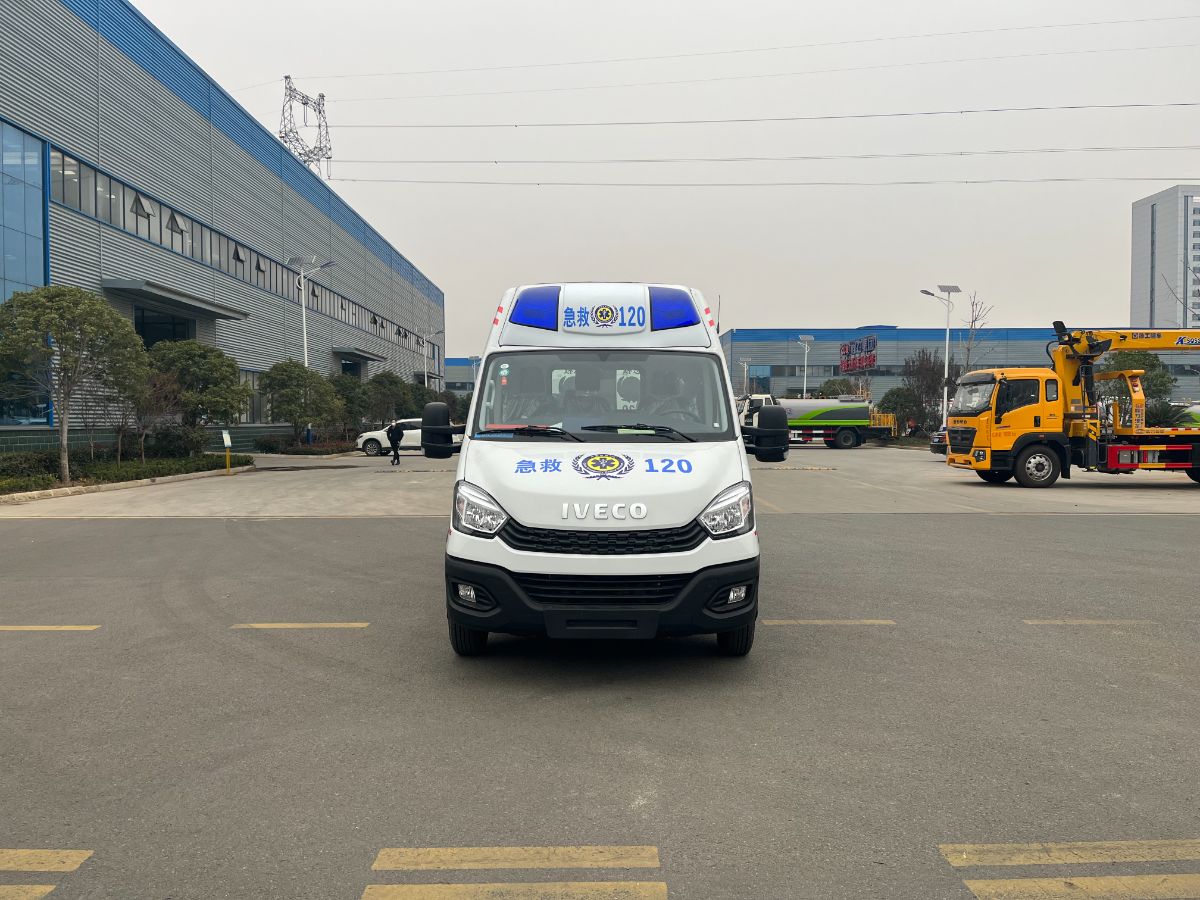

Exterior | ||||
Vehicle appearance | 1 | Black solar film on the left side of the medical cabin | ||
2 | Translucent matte film on the right and back side | |||
3 | Standard medical appearance customization | |||
