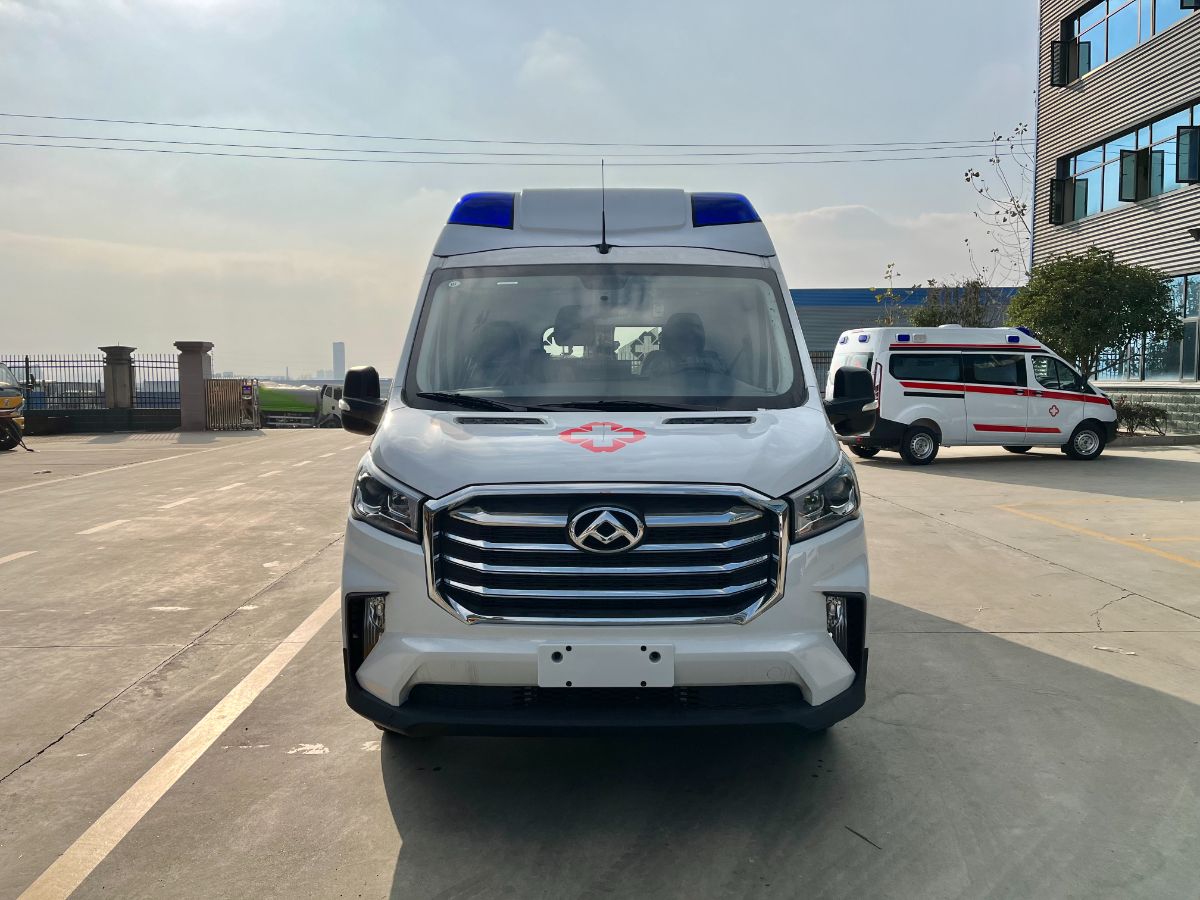

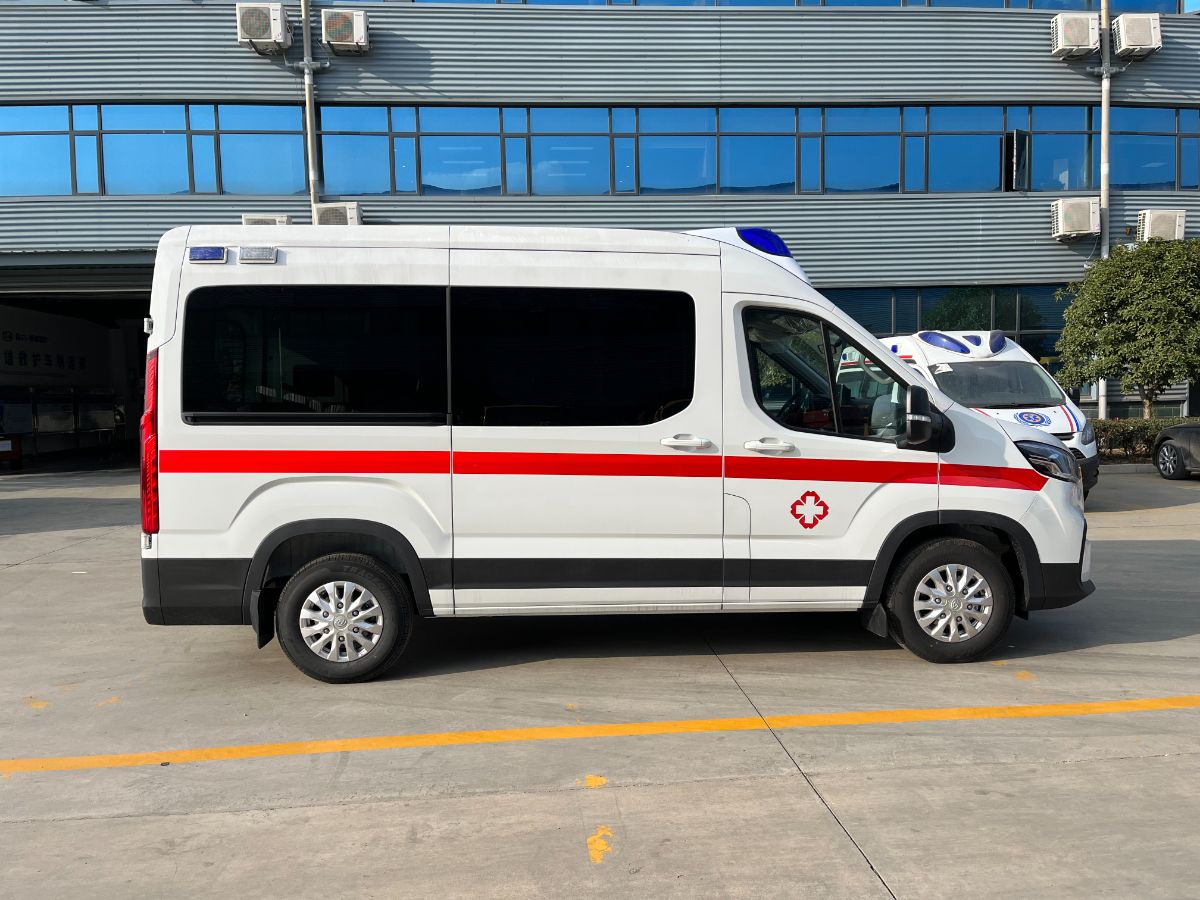

[Technical Parameters of the Ambulance] | |||||
Brand | Chengli Wei | Model | CL5047XJH6YS
| ||
GVW (kg) | 3550 | Curb weight (kg) | 2690 | ||
Rated Payload (kg) | / | Dimensions (mm) | 5546*2062*2685 | ||
Rated passenger (person) | 6-7 | Medicine Cabin size (mm) | 3400*1800*1800 | ||
Approach angle/departure angle (°) | 20/18 | Front suspension/rear suspension (mm) | 1020/1160 | ||
Axle load (kg) | 1660/1890 | Maximum speed (km/h) | 145 | ||
【Chassis Technical Parameters】 | |||||
Chassis model | SH6551H2DB | Chassis Brand | Maxus | ||
Number of axes | 2 | Number of tires | 4 | ||
Wheelbase (mm) | 3366 | ||||
Tire specifications | 235/65R16LT | ||||
Number of leaf spring | -/3 | Front track (mm) | 1732 | ||
Fuel type | Diesel | Rear track (mm) | 1743 | ||
Emission standard | GB3847-2005,GB17691-2018 EuroⅥ | ||||
engine model | Engine manufacturer | Displacement | Engine power | ||
SC20M150Q6 | Shanghai Diesel Engine Co., Ltd. | 1996 | 110 | ||

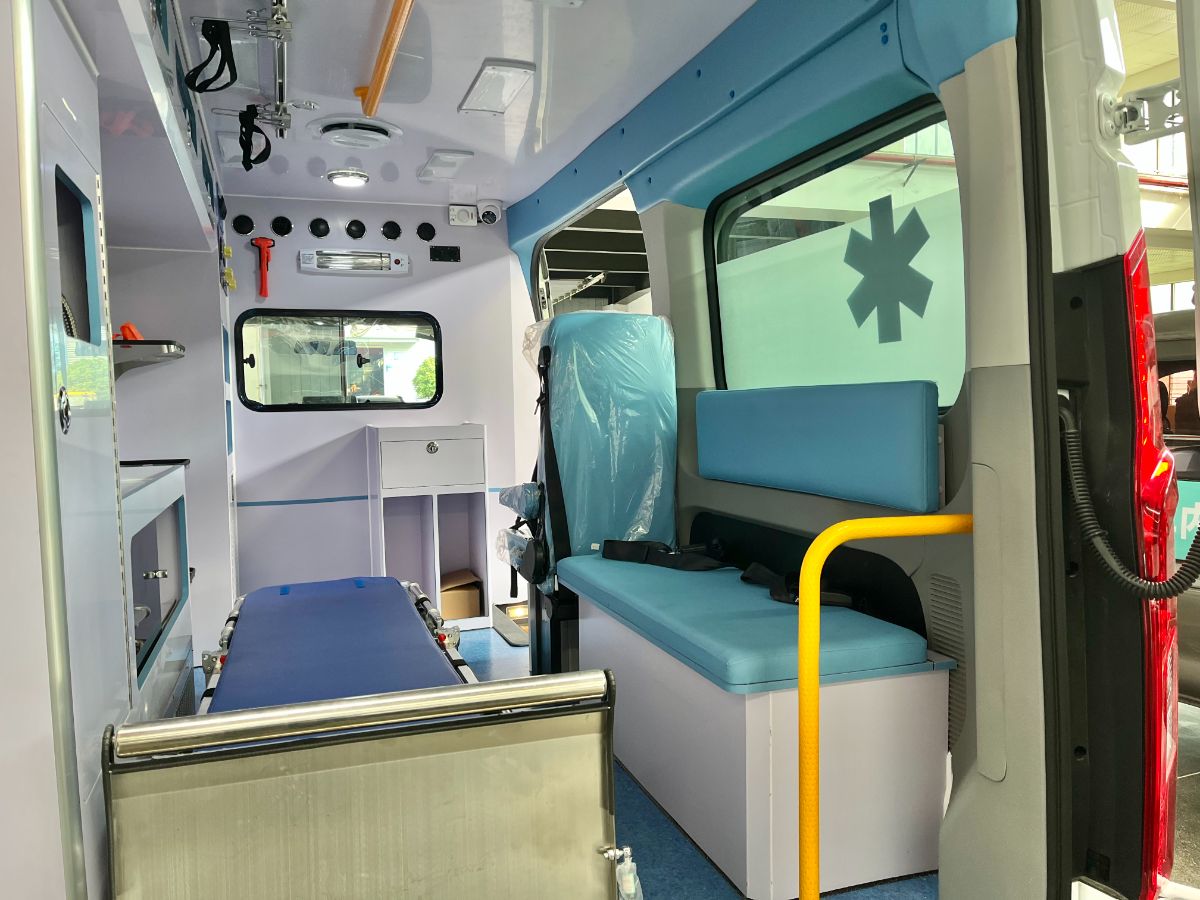

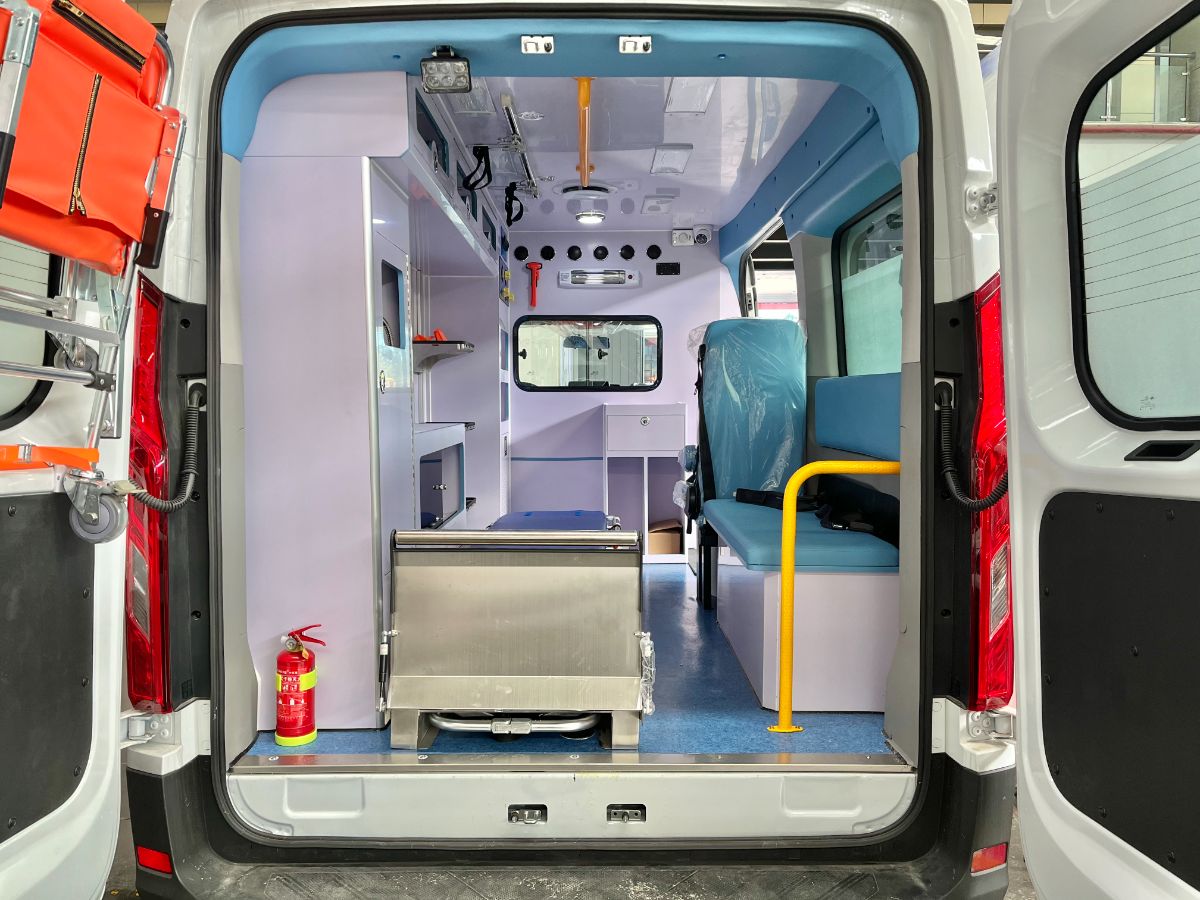

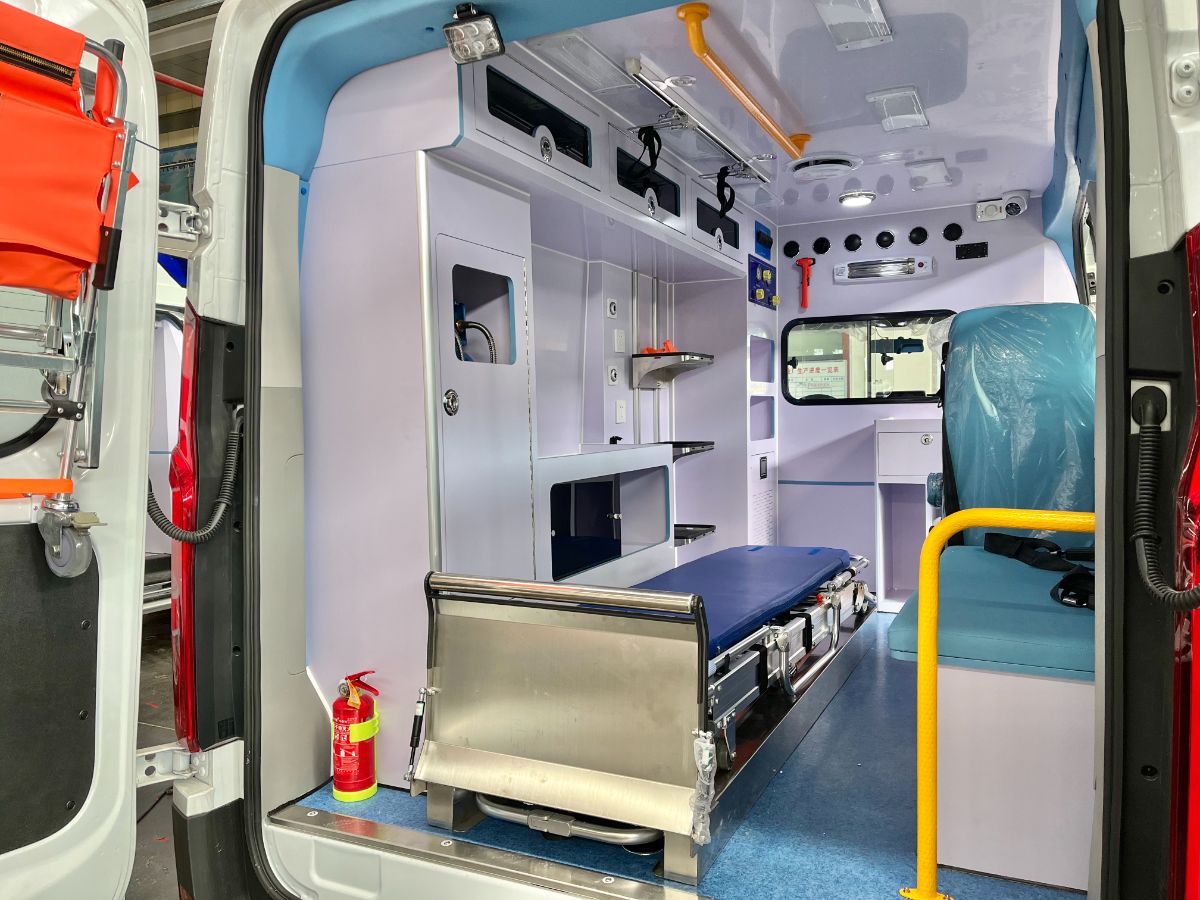

Medical Cabin Configuration
No. | Project | Specifications | Quan. |
Exterior Decoration | |||
1 | Ambulance logo | Ambulance color bar with star of life and reflective color stickers | 1set |
2 | Long row of lights | 6 flashing lights | 1set |
3 | Fresh air ventilation system | There is an automatic fresh air control device in the car | 1set |
4 | Siren | 100W siren | 1set |
5 | Rear lighting | LED lighting | 1set |
6 | Glass film | Ambulance frosted film (full window film on the left, 2/3 film on the right) | 1set |
Interior Decoration | |||
7 | Partition | With observation window | 1set |
8 | Medical floor | Acid and alkali resistant, non-slip, anti-static, easy to clean, and disinfectable | 1set |
9 | Safety handrail | Top armrest | 1set |
10 | Fire extinguisher | Fire extinguisher 1KGX1 | 1set |
Seat System | |||
14 | Driver’s Cab seat | Main driver's seat, 6-speed adjustment | 1set |
15 | Co-pilot double seat | 1set | |
16 | Medicine Cabin Seat | Medical chair: single seat, independent installation | 1set |
17 | Accompanying seat: 3 single seats, independent installation | 1set | |
Medical cabinet system | |||
18 | Left equipment cabinet | Use environmentally friendly, fire-retardant, acid and alkali resistant polymer glossy materials, and the thickness of the material is not less than 12mm. | 1set |
19 | Left wall cabinet | 1set | |
20 | Equipment cabinet | 1set | |
Left oxygen cabinet | 1set | ||
Air Conditioning System | |||
21 | Driver’s cab | Cold and warm air conditioning system | 1set |
22 | Medicine cabin | Cold and warm air conditioning system | 1set |
Electrical system | |||
24 | Control System | Rocker switch central control | 1set |
25 | Power Systems | No less than 80Ah maintenance-free battery, intelligent power isolation and connection | 1set |
26 | Sine wave inverter: the main inverter power frequency is not less than 1000W, | 1set | |
27 | Circuit insurance system | 1set | |
28 | Lighting system | LED strip light 12W*6 | 1set |
29 | Intercom system | Front and rear cabin intercom | 1set |
Medical Equipment System | |||
30 | Sterilization system | Ultraviolet germicidal lamp, timing sterilization | 1set |
31 | Infusion stand | Clamshell or folding infusion stand | 1set |
32 | Oxygen supply system | Steel oxygen cylinder 10LX2, humidifier, centralized control | 1set |
33 | Stretcher | Stretcher | 1set |
34 | Stretcher rail | 1set | |
35 | Portable stretcher | It is used in places where the boarding stretcher cannot be reached or is inconvenient to use. It is required to be placed on the boarding stretcher to reduce patient handling. At the same time, it is recommended to install the on-board stretcher fixing device on the rear door. | 1set |
Other Auxiliary | |||
46 | Garbage can | Fixtures | 1set |
47 | Control Panel | Add door fixation to the console beside the side door of the carriage | 1set |
48 | Pedal | Add side pedals to facilitate getting on and off the car as required by the purchaser | 1set |
49 | Compartment power control switch | According to the purchaser's request, add the carriage power control switch | 1set |
