Basic technical parameters of the vehicle | ||

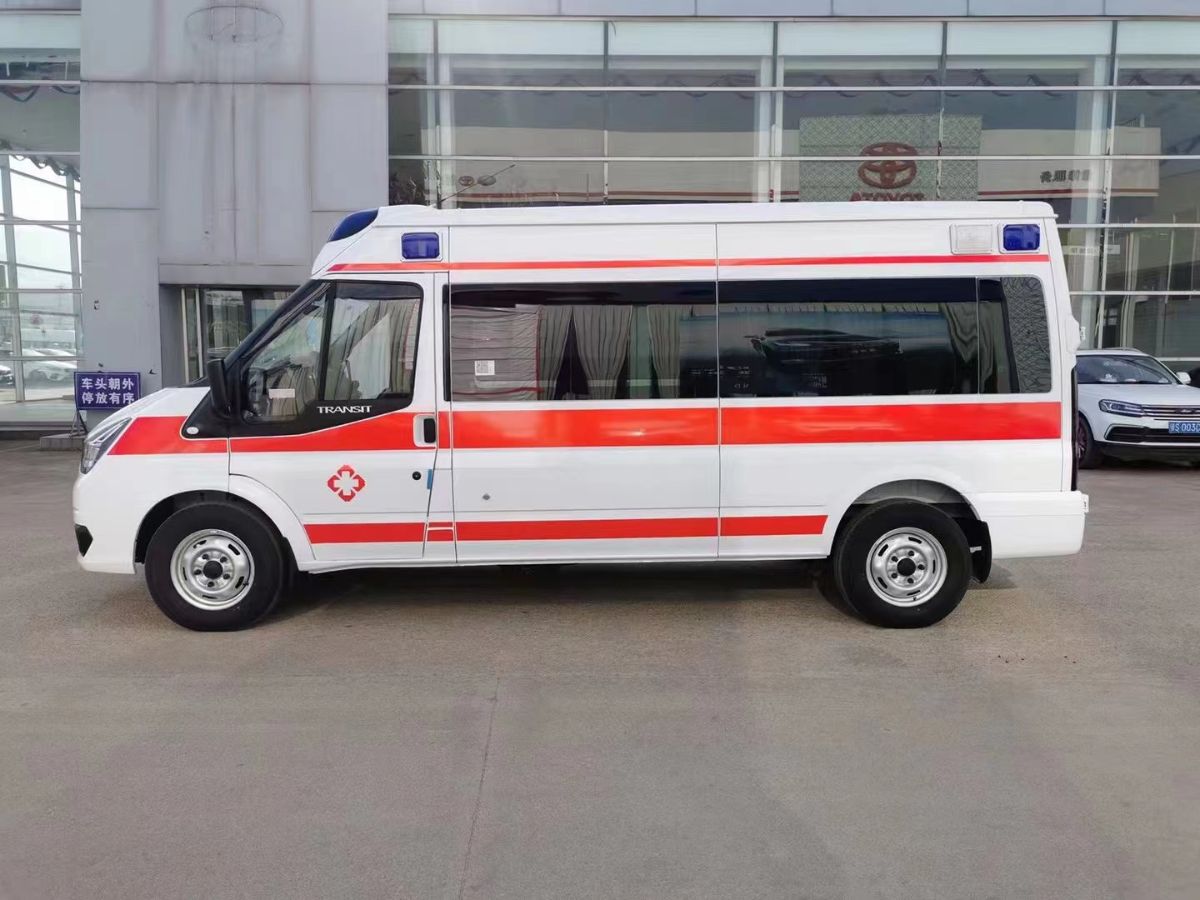

Model | CL5045XJH6YS /CLW5040XJHCD6 | |
Chassis Brand | Ford V348 JX6500TA-L6 | |
Dimension（mm） | 4963*1974*2690mm | |

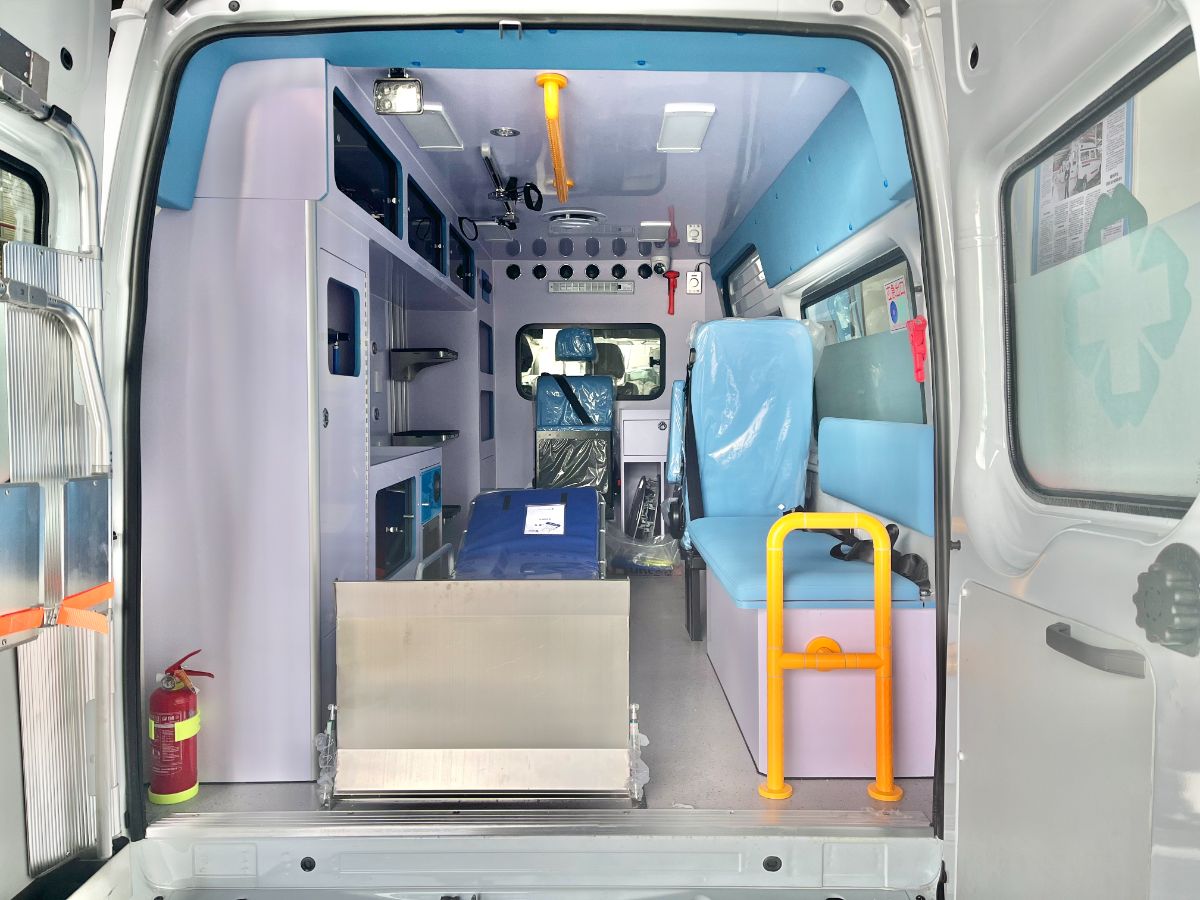

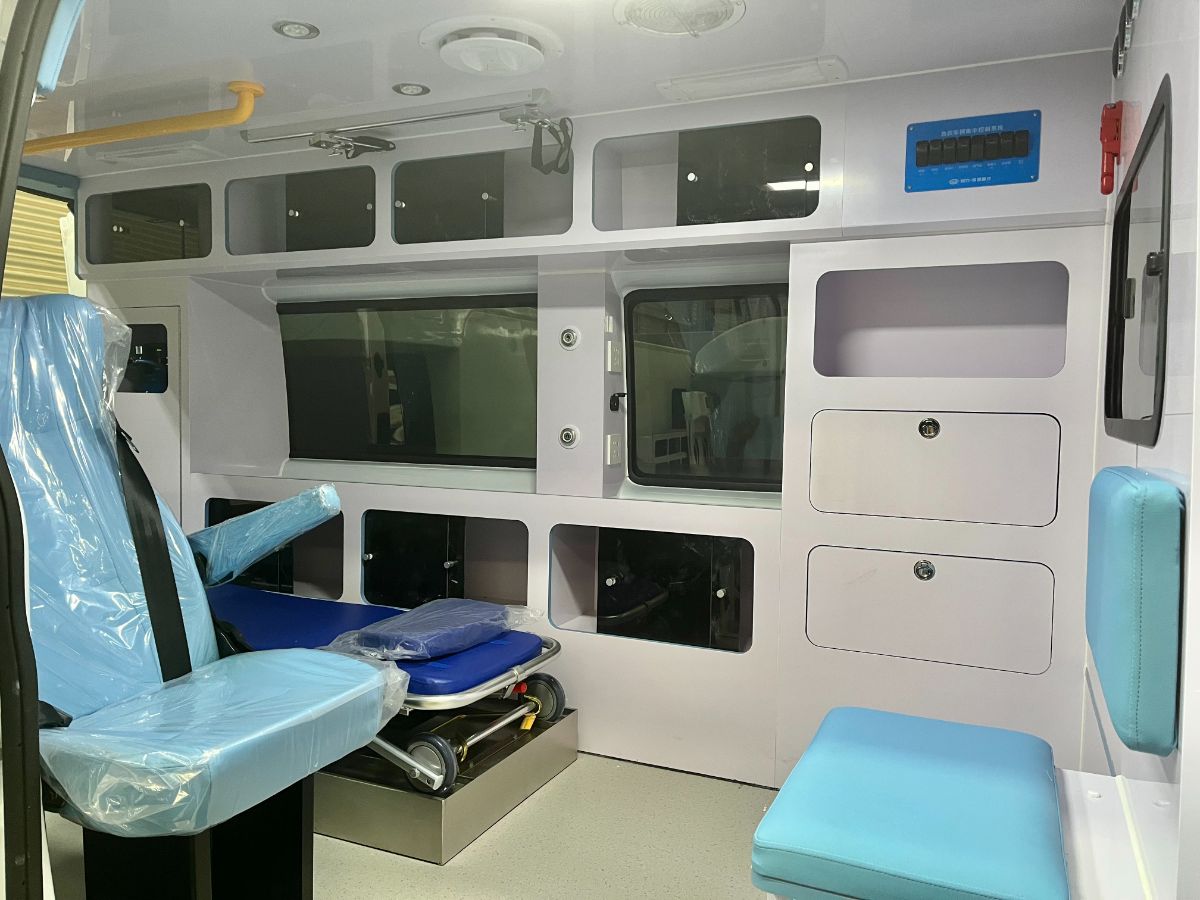

Medicine Cabin Size | 2325*1750*1580 mm | |
GVW（kg） | 3550 | |
Curb Weight（kg） | 2690 | |
Engine Model | DURATORQ4D226H | |
Engine Type | in-line, four-cylinder | |
Fuel Type | Diesel | |
Power（kw） | 103kw/ 140ps | |
Displacement (ml) | 2198 | |
Emission Standard | Euro VI | |
Fuel Tank（L） | 80 | |
Wheelbase (mm) | 2933 | |
Suspension System | Front suspension McPherson independent suspension Rear suspension leaf spring non-independent suspension | |
Braking System | Front ventilated disc type Rear solid disc type | |
Gearbox | 6 forward gears, 1 reverse gear | |
Maximum speed (km/h) | 145 | |
Tire specifications | 215/75R16LT , 4pcs | |
Rated passenger capacity (person) | 8 | |
Vehicle standard configuration | ||
1 | Anti-lock braking system (ABS) | |
2 | Brake Force Distribution System (EBD) | |
3 | Vehicle maintenance warning system | |
4 | Central control door lock | |
5 | Cab 3 seats | |
6 | Cab airbag | |
7 | Power windows in cab | |
8 | Rear double door | |
9 | USB and radio sound system | |
10 | Black bumper | |
11 | The first remote control key | |
Air conditioning and lighting system | ||
1 | Original cab system | |
