Basic parameters | |||
Basic vehicle configuration details | Product Model | CL5043XJH6YS | |
Chassis | JMC | ||
Chassis Model | JX6490T-L6 | ||
Engine | JX493ZLQ6 | ||
Fuel Type | Diesel | ||
Displacement | 2771 | ||
Emission Standard | Euro VI | ||
Curb Weight | 2160 | ||
GVW | 3510 | ||
Wheelbase | 2835 | ||
Overall dimensions | 4900,4700×1972×2440 (Length*Width*Height) | ||
Medical cabin size | 2200×1700×1720(Length*Width*Height) | ||
Rated power | 85/3500 | ||
Suspension system | 1026/883,1026/1083 | ||
Braking System | Rear Drive | ||
Transmission | Getrag 5MT transmission, 5 forward gears, 1 reverse gear | ||
Suspension system | Front suspension Macpherson independent suspension Rear suspension half-section leaf spring non-independent suspension | ||
Braking System | Front ventilated disc type Rear solid disc type | ||
Maximum speed | 120 | ||
Fuel tank volume | 70 | ||
Number of seats | 5-7person | ||
Vehicle standard configuration | |||
1 | Anti-lock braking system (ABS) | ||
2 | Brake Force Distribution System (EBD) | ||
3 | Vehicle maintenance warning system | ||
4 | Central control door lock | ||
5 | Cab 3 seats | ||
6 | Cab airbag | ||
7 | Power windows in cab | ||
8 | Rear double door | ||
9 | USB and radio sound system | ||
10 | Black bumper | ||
11 | The first remote control key | ||
Air conditioning and lighting system | |||
1 | Original cab system | ||
2 | Medical cabin heating system | ||
3 | Modification of independent direct exhaust air-conditioning system in medical cabin | ||
4 | Medical cabin exhaust ventilation system (two-way ventilation) | ||
Power Systems | |||
1 | 220V external power supply automatic charging system | 1 | |
2 | 10m long mobile cable, 220V/16A waterproof, external power interface with protective cover | 1 | |
3 | Vehicle (12V/220V) inverter power supply system (1000W inverter) | 1 | |
4 | The second power supply 80AH maintenance-free battery and safety voltage display | 1 | |
5 | Battery protection isolation device | 1 | |
6 | Emergency start device in the cab, which can be started by the second power supply when the main battery has no electricity | 1 | |
7 | Medical circuit integrated control protection box, | 1 | |
8 | Electric overload protection system for medical cabin | 1 | |
9 | Install a 12V socket in the medical cabin | 2 | |
10 | Install a 220V socket in the medical cabin | 6 | |
11 | 12V infusion spotlight | 2 | |
12 | Install LED lighting on the top of the medical cabin | 4 | |
13 | UV sterilization lamp | 1 | |
14 | Rescue light at the rear of the wall cabinet | 1 | |
Emergency Alert System | |||
1 | A set of 100W siren | 1 | |
2 | Install long strip lights on the roof | 1 | |
3 | A blue warning light (strobe flashing) is installed at the rear of the roof | 2 | |
4 | A blue square warning light is installed at the rear of the roof side | 2 | |
5 | White field lights are installed on both sides of the body | 2 | |

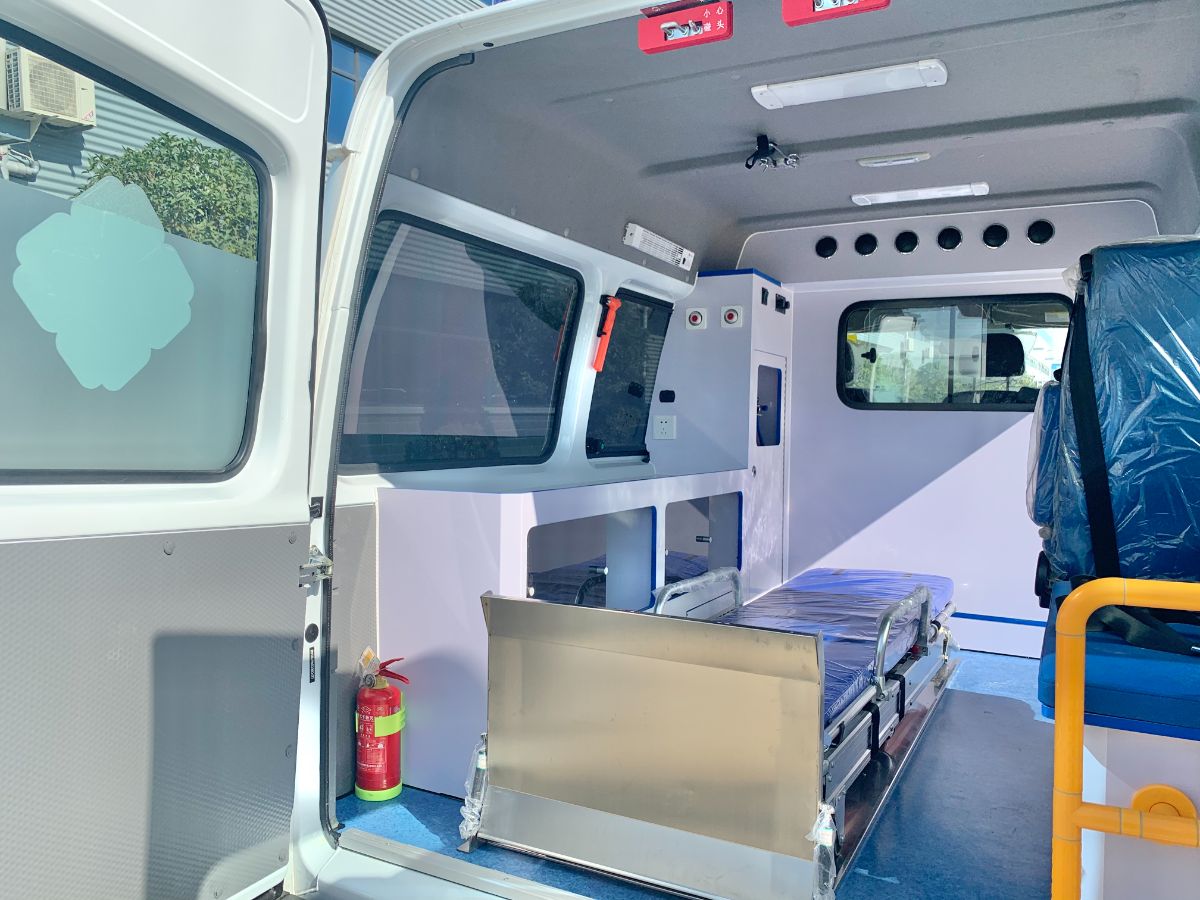

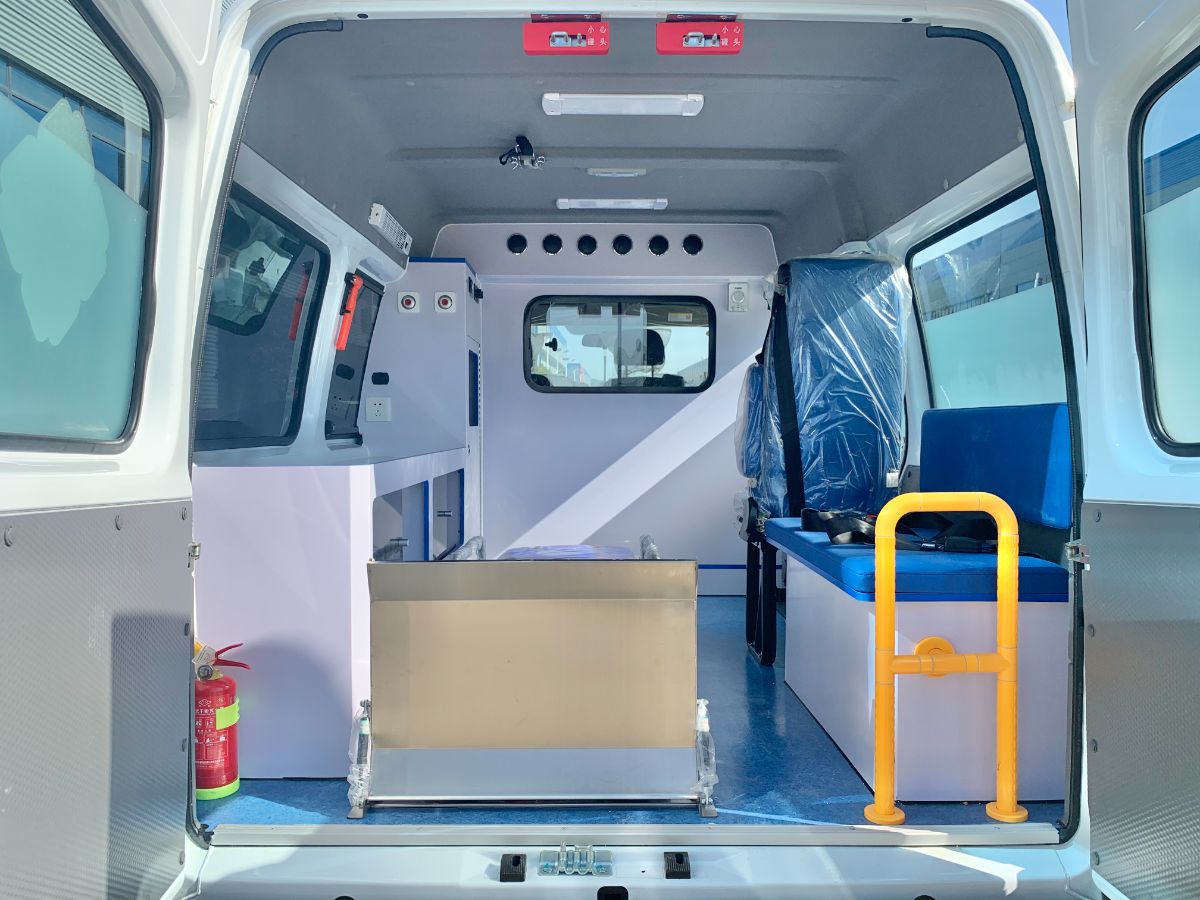

Medical Cabin Device | |||
1 | Special-shaped airtight partition walls are installed between the driver's cab and the medical cabin to reasonably guarantee the space of the driver's cabin and the medical cabin | 1 | |
2 | Install transparent sliding window glass with lock buckle on special-shaped partition wall | 1 | |
3 | Long strip composite Walker flame-retardant board medical integrated cabinet on the left side of the medical cabin | 1 | |
4 | Long wall cabinet with composite Walker flame-retardant board medical accessories is installed on the top of the left side of the medical cabin | 1 | |
5 | An oxygen cabinet is installed on the left side of the medical cabin to facilitate the removal of the oxygen screen | 1 | |
6 | Thermal insulation, sound insulation and heat insulation layer engineering of medical cabin | 1 | |
7 | The side of the medical cabin roof is made of white renewable environmental protection materials for safety and airtightness, which is easy to disinfect and clean, and does not hide dirt | 1 | |
8 | A full set of blue anti-collision soft bag for medical cabin | 1 | |
9 | Pre-embedded project of concealed fixed parts in medical cabin | 1 | |
10 | Environmentally friendly waterproof, non-slip, anti-static, anti-corrosion floor (with coating) | 1 | |
Seat System | |||
1 | Installation of reverse folding medical seats on partition walls in medical cabins | 1 | |
2 | Long row of cabinet seats for 3 people installed on the right side of the medical cabin | 1 | |
Oxygen System | |||
1 | 10 liter aluminum oxygen cylinder (with pressure reducing valve) for medical cabin | 2 | |
2 | Concealed installation of oxygen pipeline in medical cabin | 1 | |
3 | Medical cabin as oxygen end column to install national standard oxygen interface | 2 | |
4 | Oxygen humidifier for medical cabin | 1 | |
5 | Install on-board oxygen sockets in medical cabins (available for ventilator and humidifier) | 1 | |
Emergency Assistance System | |||
1 | Front and back intercom system for medical cabin | 1 | |
2 | Medical cabin adjustable top infusion slide rail with infusion stand (2 infusion bottles can be fixed) | 1 | |
3 | The equipment rack on the left side of the medical cabin is equipped with a reinforced metal back plate | 1 | |
4 | Medical cabin integrated control panel | 1 | |
5 | Yellow safety antibacterial handrails on the top of the medical cabin | 1 | |
6 | Stretcher pad for automatic loading | 1 | |
7 | Domestic emergency resetting stretcher bed (with fixator and safety belt) | 1 | |
Emergency Assistance System | |||
1 | 1kg fire extinguisher | 1 | |
2 | garbage can | 1 | |
3 | Adhere to the exterior of the car body strong reflective ribbon and first aid standard logo emblem | 1 | |
4 | The back door is equipped with transparent glass, 2/3 of the window is pasted with milky white opaque explosion-proof film | ||
