Basic technical parameters of the vehicle | ||
Model | CL5042XJHYS6 | |
Chassis Brand | Ford V362 JX6533TB-M6 | |
Dimension（mm） | 5341*2032*2450/2580 mm | |

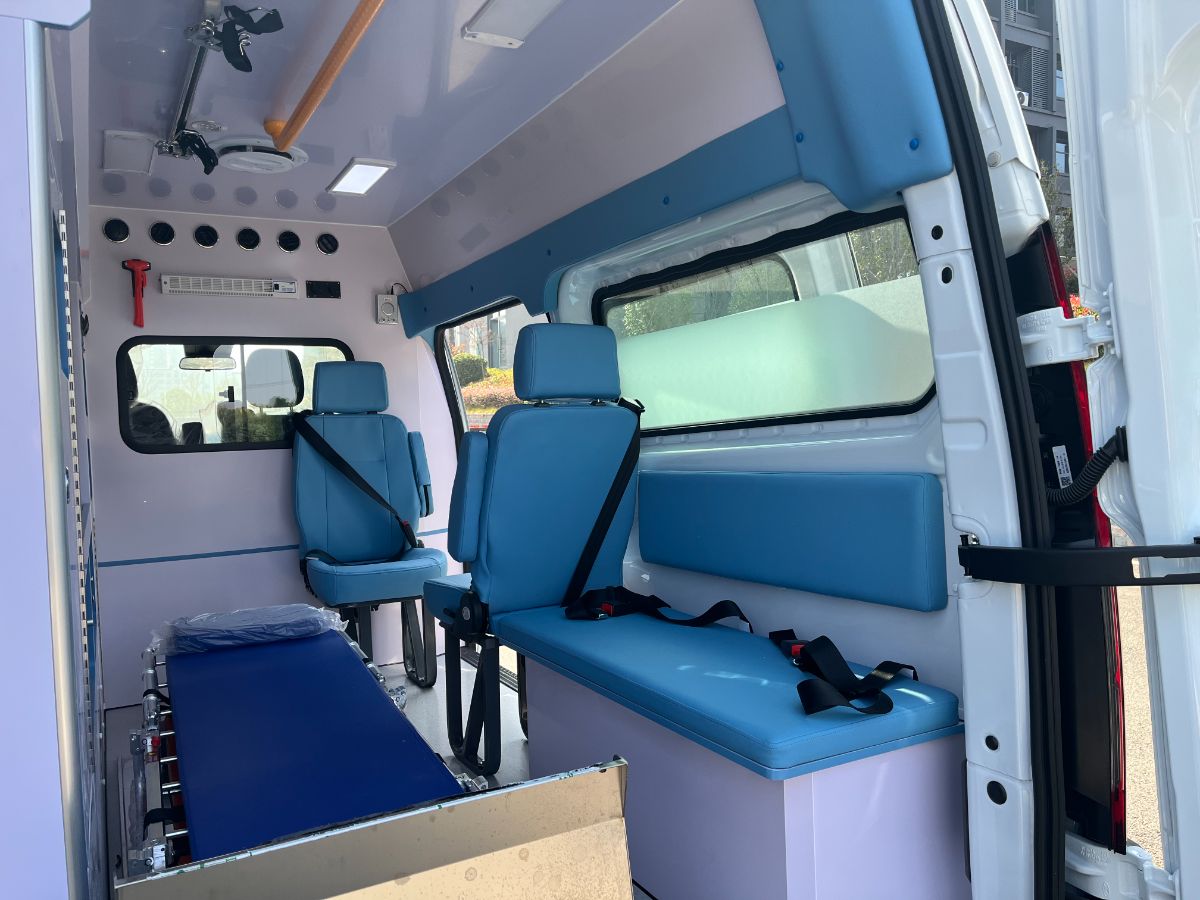

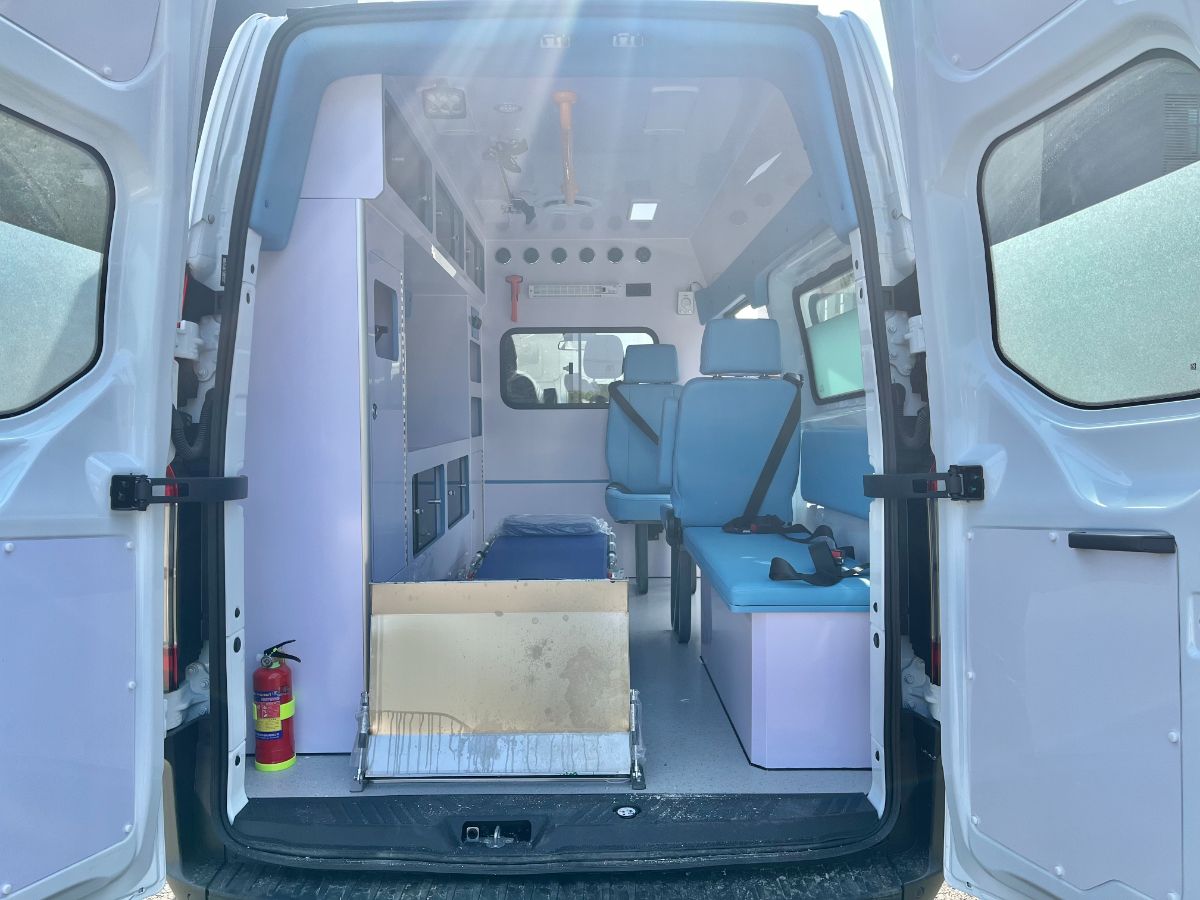

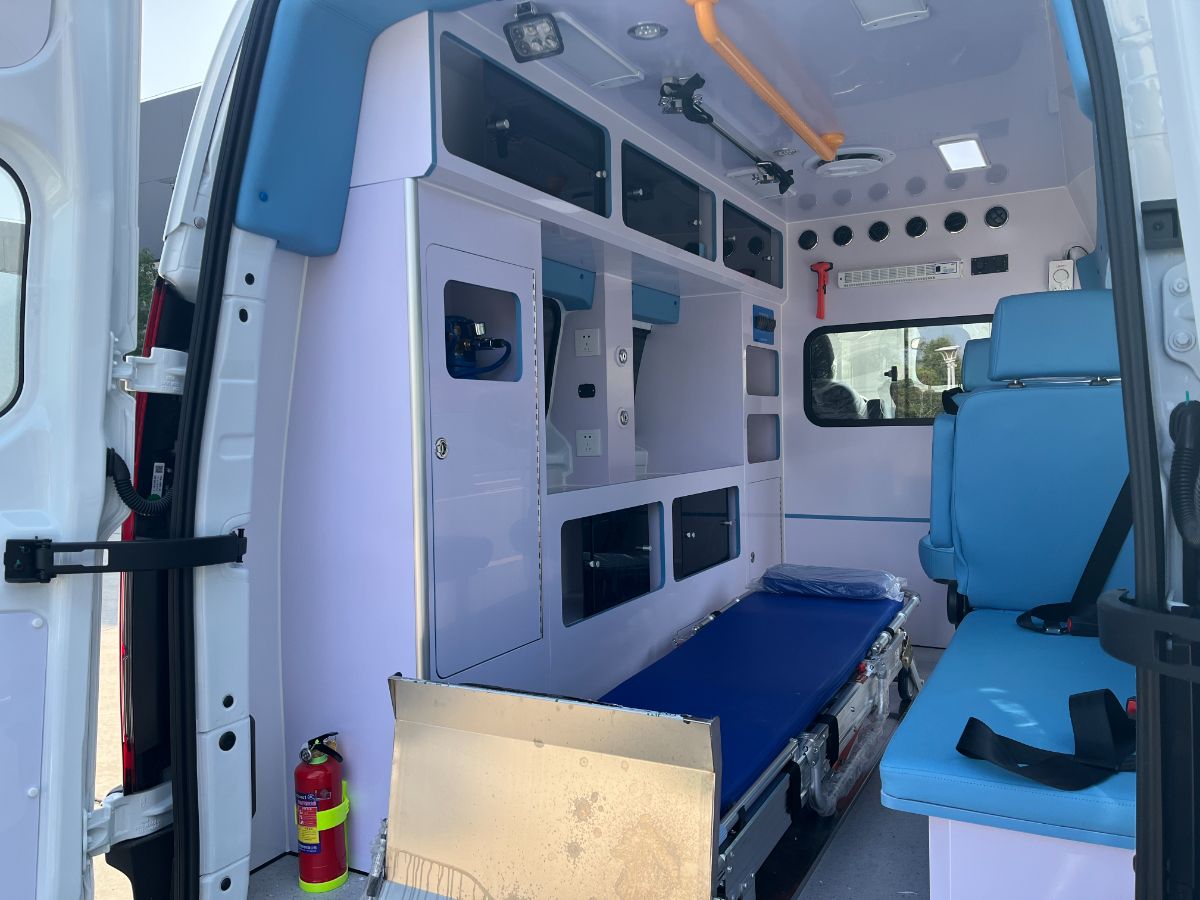

Medicine Cabin Size | 2600*1730*1750mm | |
GVW（kg） | 3510 | |
Curb Weight（kg） | 2550 | |
Engine Model | DURATORQ4D206H | |
Engine Type | 2.0T in-line, four-cylinder, supercharged and inter-cooled, direct injection | |
Fuel Type | Diesel | |
Displacement (ml) | 1998 | |
Emission Standard | Euro VI | |
Maximum power (Ps/rpm) (convert KW, multiply by 0.735) | 90/122.4 | |
Max. Torque Nm/rpm | 300/3000 | |
Fuel Tank（L） | 80 | |
Wheelbase (mm) | 3300 | |
Suspension System | Front suspension McPherson independent suspension Rear suspension leaf spring non-independent suspension | |
Braking System | Front ventilated disc type Rear solid disc type | |
Gearbox | 5 forward gears, 1 reverse gear | |
Maximum speed (km/h) | 156 | |
Rated passenger capacity (person) | 7-8 | |
Vehicle standard configuration | ||
1 | Anti-lock braking system (ABS) | |
2 | Brake Force Distribution System (EBD) | |
3 | Vehicle maintenance warning system | |
4 | Central control door lock | |
5 | Cab 3 seats | |
6 | Cab airbag | |
7 | Power windows in cab | |
8 | Rear double door | |
9 | USB and radio sound system | |
10 | Black bumper | |
11 | The first remote control key | |
Air conditioning and lighting system | ||
1 | Original cab system | |
