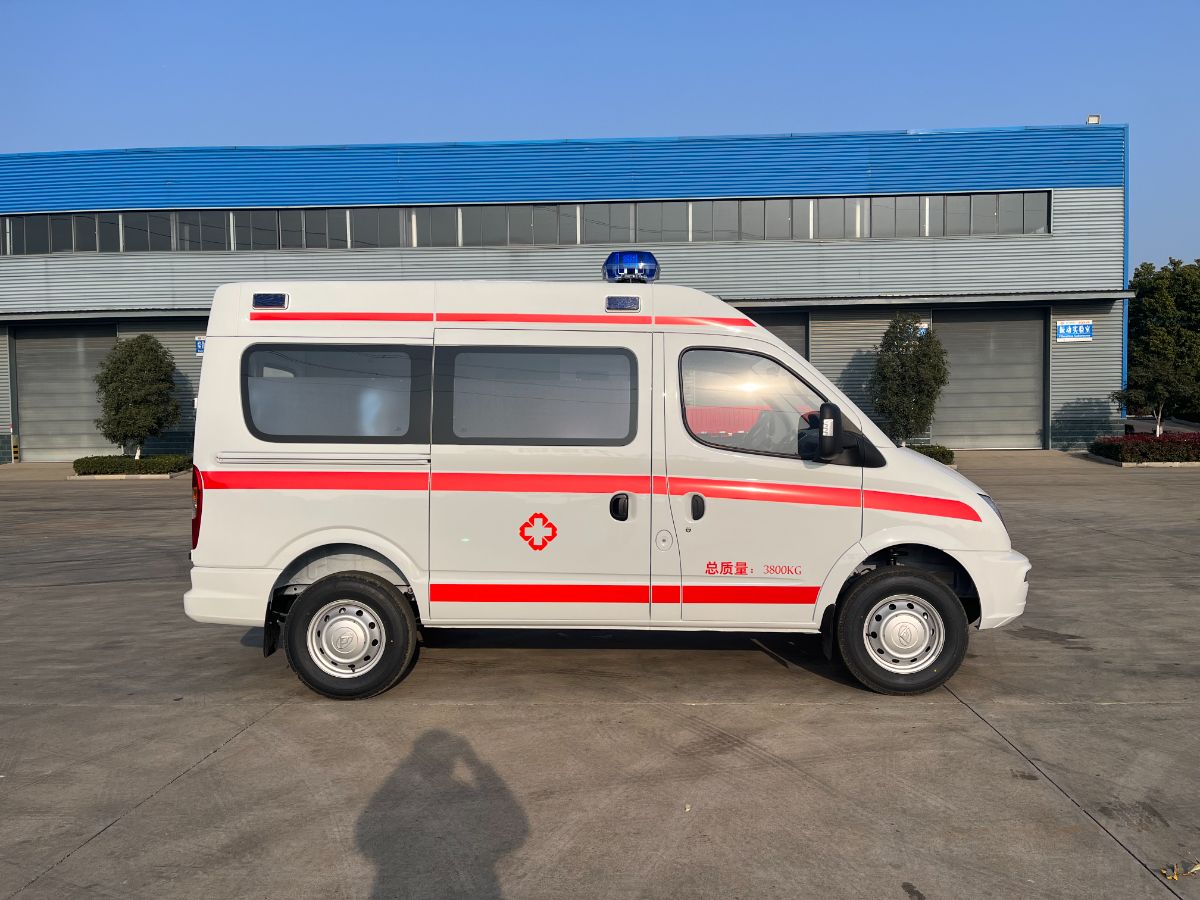

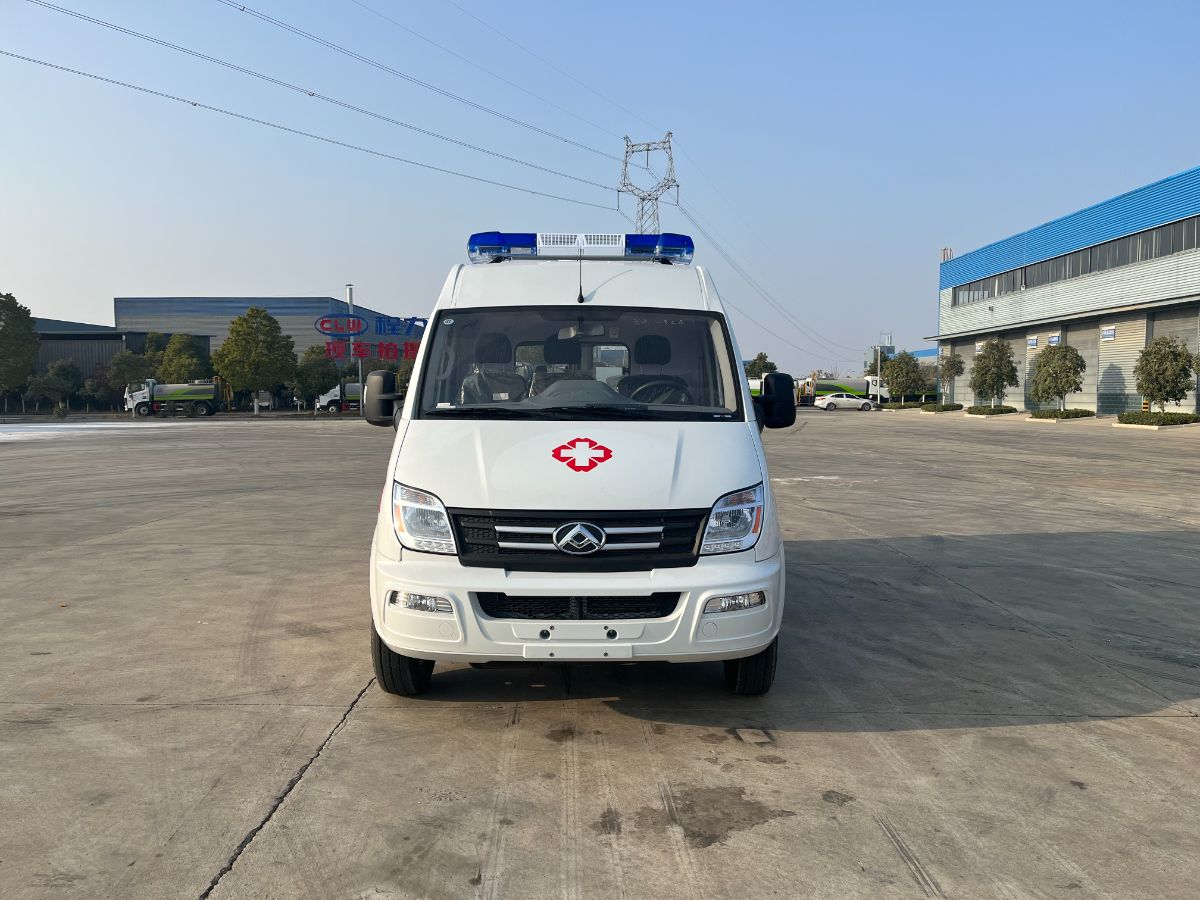

[Technical Parameters of the Ambulance] | |||||
Brand | Chengli Wei | Model | CL5040XJHS6 | ||
GVW (kg) | 3800 | Curb weight (kg) | 2460 | ||
Rated Payload (kg) | / | Dimensions (mm) | 4950*1998*2370,2480 | ||
Rated passenger (person) | 4-7 | Medicine Cabin size (mm) | 3200*1800*1800 | ||
Approach angle/departure angle (°) | 26/17,26/14 | Front suspension/rear suspension (mm) | 865/985,865/1195,865/1070 | ||
Axle load (kg) | 1760/2040 | Maximum speed (km/h) | 160,100 | ||
【Chassis Technical Parameters】 | |||||
Chassis model | SH6521A2DB | Chassis Brand | Maxus | ||
Number of axes | 2 | Number of tires | 4 | ||
Wheelbase (mm) | 3100 | ||||
Tire specifications | 215/75R16LT | ||||
Number of leaf spring | -/2 | Front track (mm) | 1734 | ||
Fuel type | Diesel | Rear track (mm) | 1728 | ||
Emission standard | GB3847-2005,GB17691-2018 EuroⅥ | ||||
engine model | Engine manufacturer | Displacement | Engine power | ||
SC20M139Q6 | Shanghai Diesel Engine Co., Ltd. | 1996 | 102 | ||
No. | Project | Specifications | Quan. |
Exterior Decoration | |||
1 | Ambulance logo | Ambulance color bar with star of life and reflective color stickers | 1set |
2 | Long row of lights | 6 flashing lights | 1set |
3 | Fresh air ventilation system | There is an automatic fresh air control device in the car | 1set |
4 | Siren | 100W siren | 1set |
5 | Rear lighting | LED lighting | 1set |
6 | Glass film | Ambulance frosted film (full window film on the left, 2/3 film on the right) | 1set |

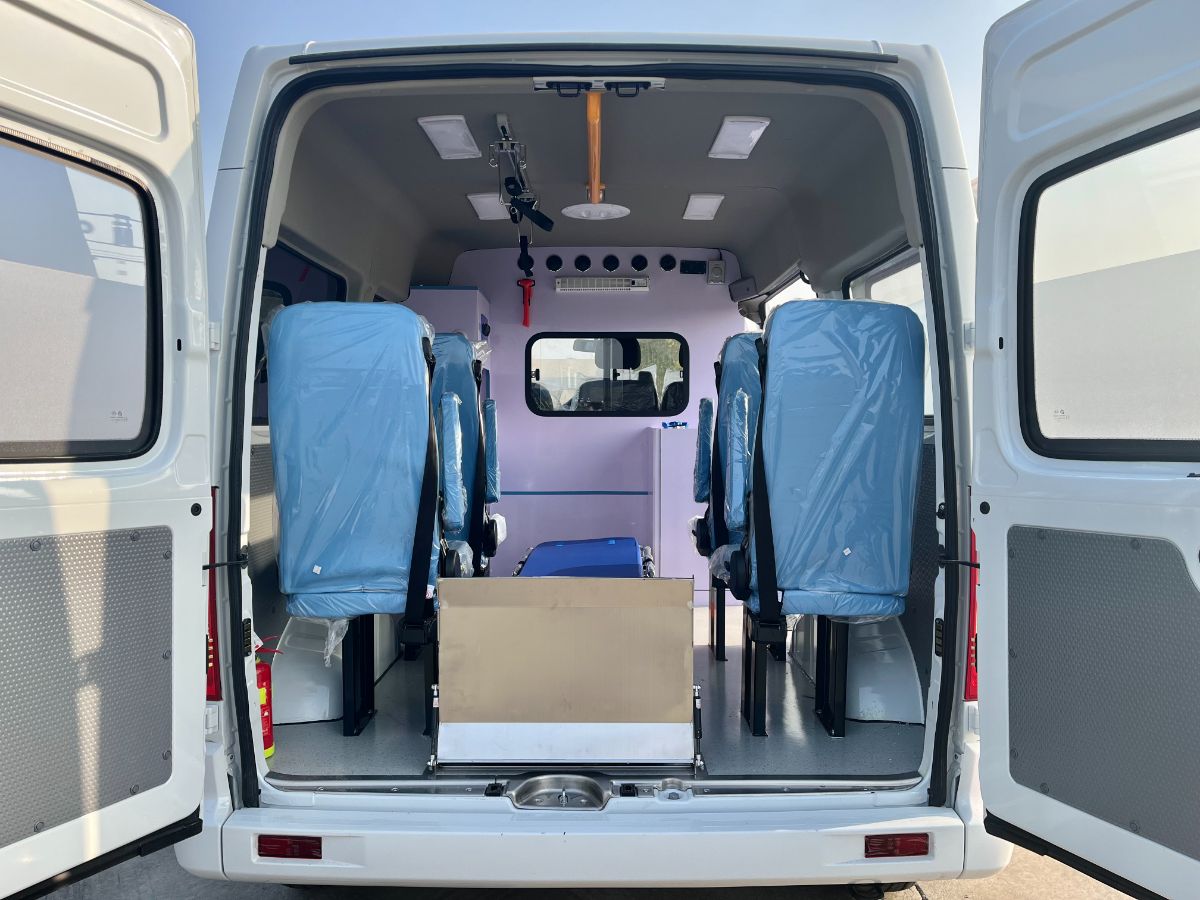

Interior Decoration | |||
7 | Partition | With observation window | 1set |
8 | Medical floor | Acid and alkali resistant, non-slip, anti-static, easy to clean, and disinfectable | 1set |
9 | Safety handrail | Top armrest | 1set |
10 | Fire extinguisher | Fire extinguisher 2KGX1 | 1set |
Seat System | |||
14 | Driver’s Cab seat | Main driver's seat, 6-speed adjustment | 1set |
15 | Co-pilot double seat | 1set | |
16 | Medicine Cabin Seat | Medical chair: single seat, independent installation | 1set |
17 | Accompanying seat: two-person bench | 1set | |

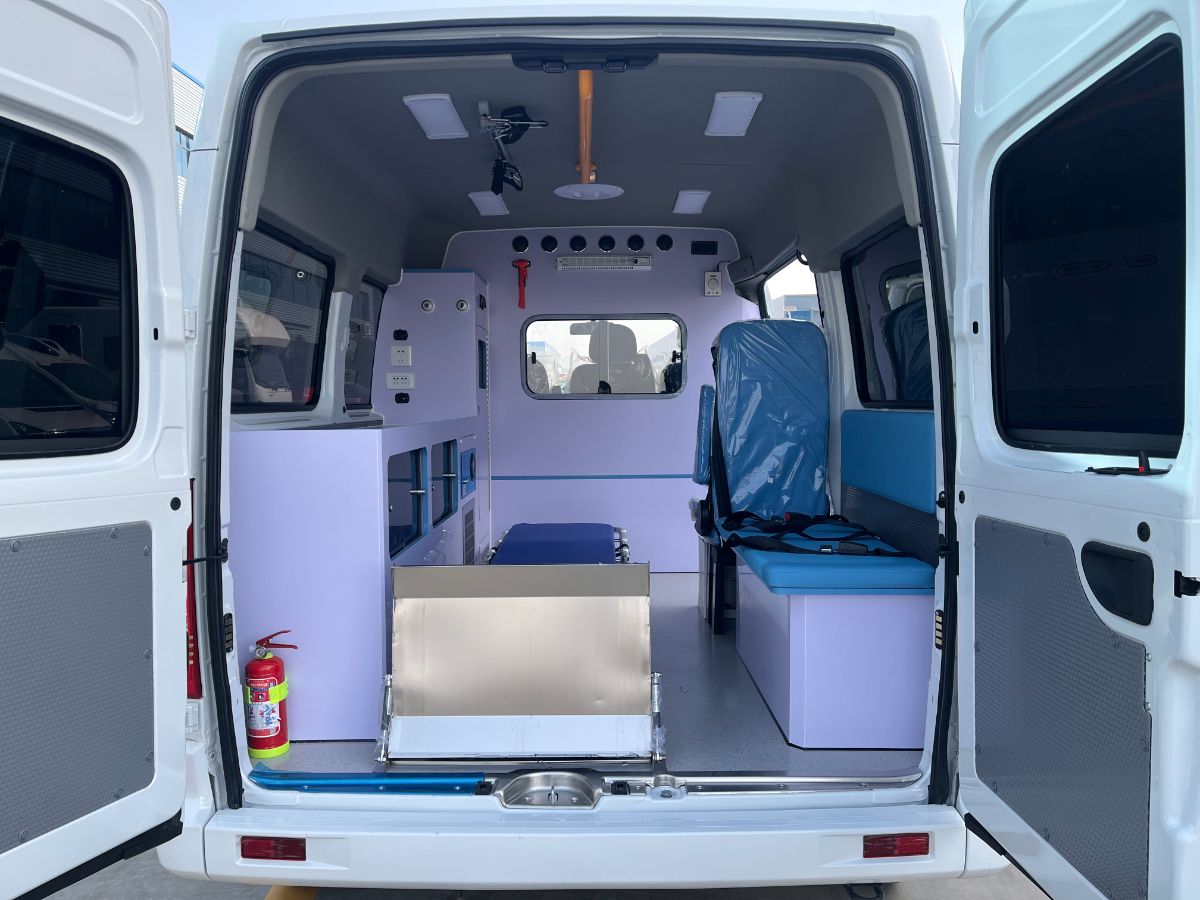

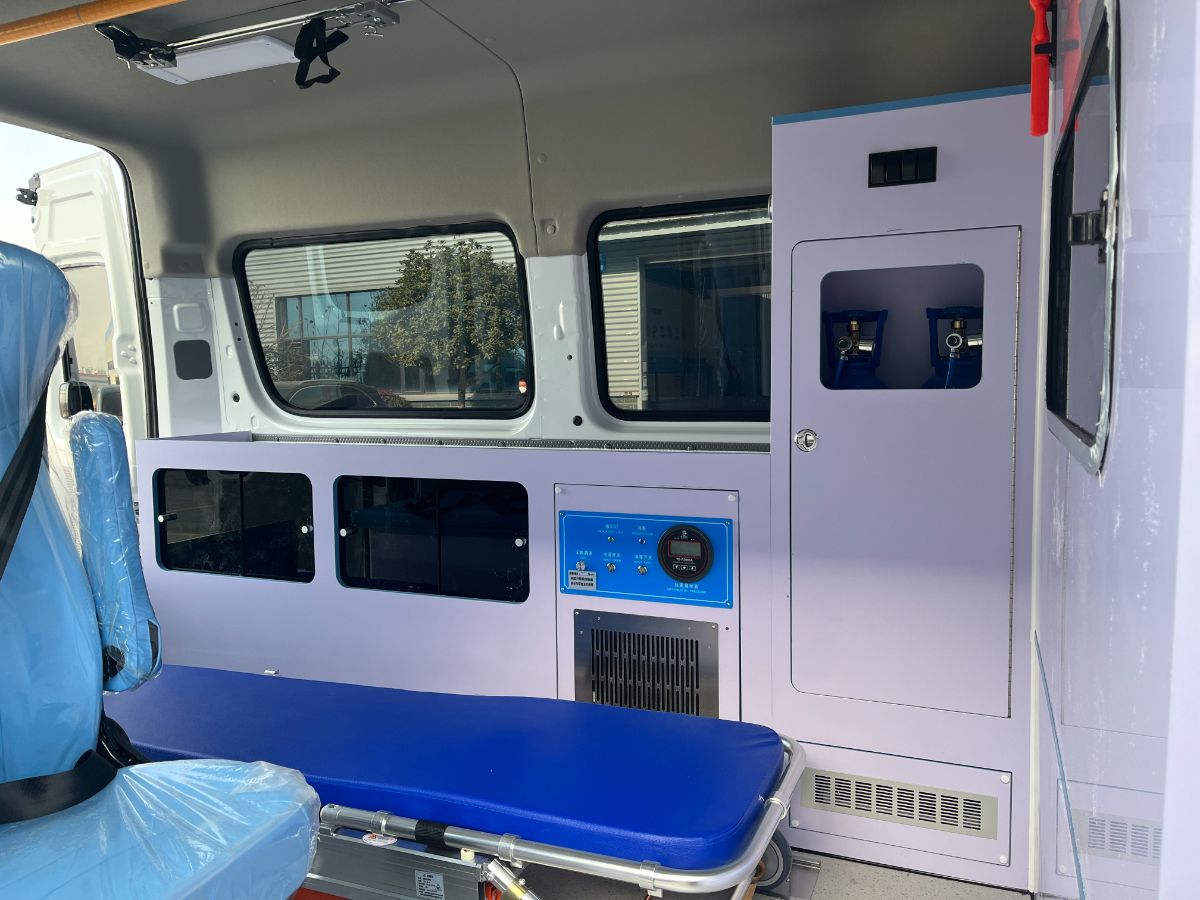

Medical cabinet system | |||
18 | Left equipment cabinet | Environmentally friendly, fireproof, flame retardant, acid and alkali resistant polymer glossy material | 1set |
19 | Equipment cabinet | 1set | |
20 | Left oxygen cabinet | 1set | |
Air Conditioning System | |||
21 | Driver’s cab | Cold and warm air conditioning system | 1set |
22 | Medicine cabin | Cold and warm air conditioning system | 1set |
Electrical system | |||
24 | Control System | Hull key switch central control | 1set |
25 | Power Systems | Maintenance-free battery, intelligent power isolation and connection | 1set |
26 | Sine wave inverter: 1000W, | 1set | |
27 | Circuit insurance system | 1set | |
28 | Lighting system | LED strip light 12WX4 | 1set |
29 | Intercom system | Front and rear cabin intercom | 1set |
Medical equipment system | |||
30 | Sterilization system | Ultraviolet germicidal lamp, timing sterilization | 1set |
31 | Infusion stand | Clamshell or folding infusion stand | 1set |
32 | Oxygen supply system | Steel oxygen cylinder 10LX2, humidifier, centralized control | 1set |
33 | stretcher | Stretcher platform with automatic loading | 1set |
34 | Stretcher platform with automatic loading (high-end) | 1set | |
35 | Portable stretcher | It is used in places where the boarding stretcher cannot be reached or is inconvenient to use. It is required to be placed on the boarding stretcher to reduce patient handling. At the same time, it is recommended to install the on-board stretcher fixing device on the rear door. | 1set |
Other Auxiliary | |||
46 | Top fixed armrest | 1 | |
47 | Fire extinguisher | 1 | |
48 | Garbage can | 1 | |
49 | Safety hammer | 1 | |
