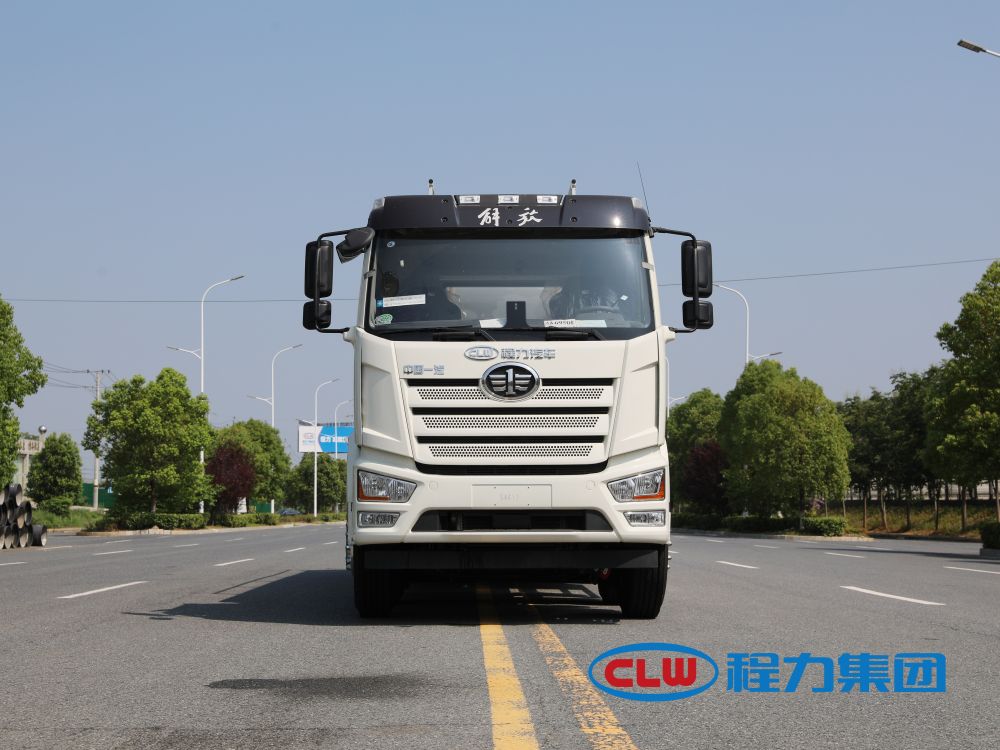

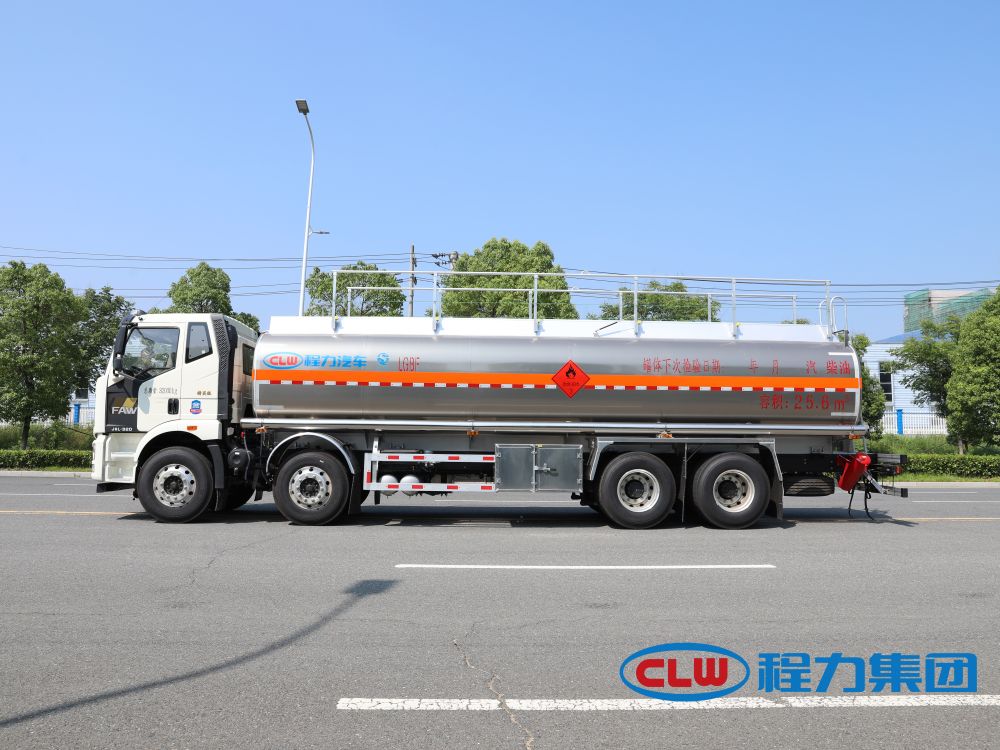

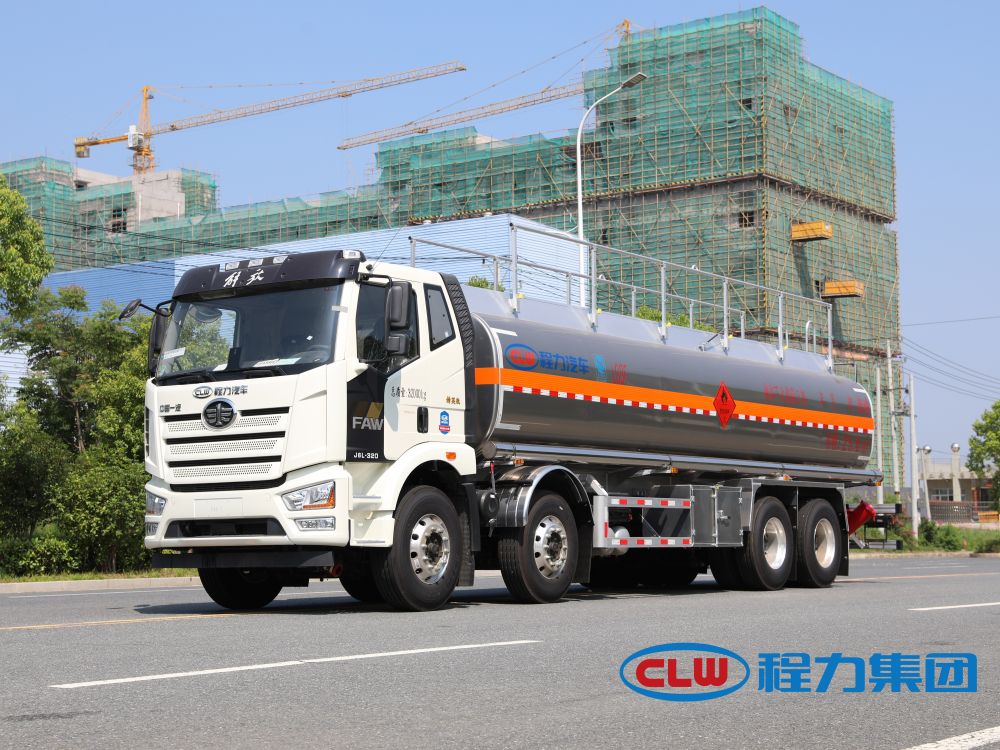

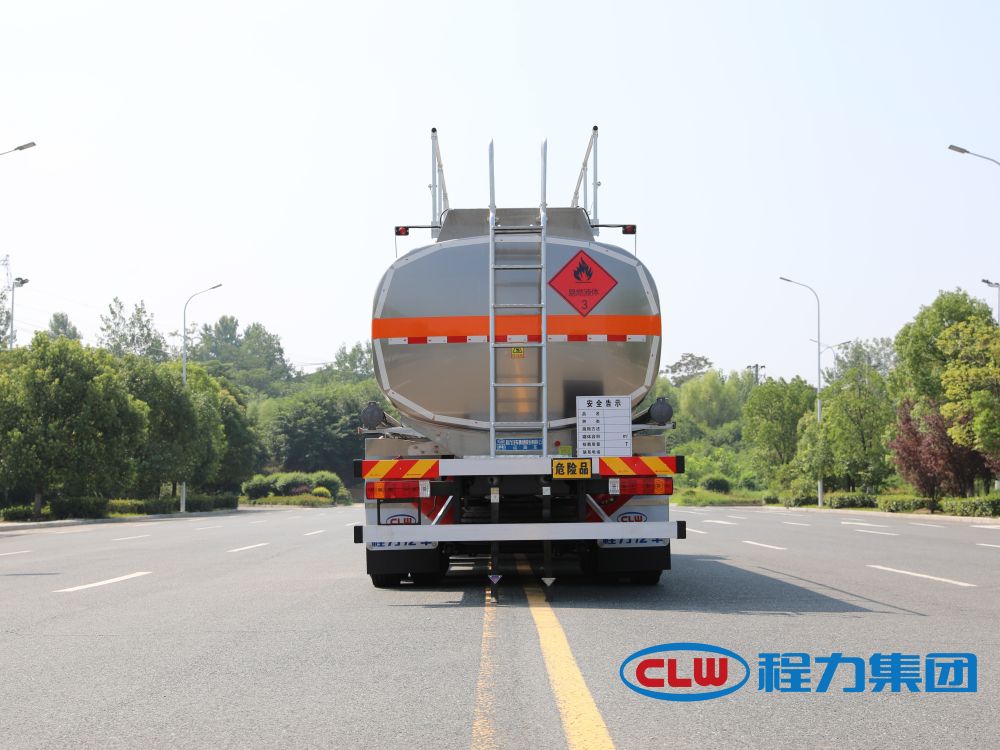

| Main technical parameters of Chengli CL5323GYYLC6 aluminum alloy oil tanker |
| Product Name: | Chengli CL5323GYYLC6 aluminum alloy oil tanker | Dimensions: | 11730×2550×3550(mm) |
| Emission standard: | National VI | Cargo box size: | ××(mm) |
| Gross Vechile Weight (GVW): | 32000(Kg) | Approach/departure angle: | 14/10(°) |
| Rated Payload: | 21100,21165(Kg) | Front/ rear overhang: | 1400/2580(mm) |
| Curb weight: | 10705(Kg) | Maximum speed: | 79(km/h) |
| Chassis Parameters |
| Fuel type: | Diesel | Chassis model: | CA5320GYYP62K1L6T4E6 |
| Number of axles: | 4 | Front wheel tread: | 1950/1950,1974/1974(mm) |
| Wheelbase: | 1900+4500+1350,1900+4200+1350,1900+3800+1350(mm) | Rear wheel tread: | 1878/1878,1900/1900(mm) |
| Number of passengers in the cab: | (people) | Number of springs: | 3/3/-,4/4/-,7/7-,8/8-,9/9-,10/10/-,11/11/-,12/12/- |
| Number of tires: | 12(pcs) | Axle load: | 6500/6500/19000(Two-axis group) |
| Tire specifications: | 12R22.5 18PR,295/80R22.5 18PR |
| Engine Parameters |
| Engine Model: | Engine Manufacturer | Displacement(ml) | Power(kw)/horsepower(PS): |
| CA6DK1-32E61 | China First Automobile Group Co., Ltd. | 7146 | 239/325 |
| CA6DK1-28E61 | China First Automobile Group Co., Ltd. | 7146 | 209/284 |
| CA6DK2E35E65 | China First Automobile Group Co., Ltd. | 7751 | 257/349 |
| CA6DK2B32E65 | China First Automobile Group Co., Ltd. | 7751 | 238/323 |
| Other: |
| EBS model/manufacturer: EBS3/Wabco Vehicle Control Systems (China) Co., Ltd.; Speed limiter installed; Speed limiter (km/h): 79; A driving recorder with satellite positioning function installed; Engine/fuel consumption value (L/100km) corresponding relationship is;, CA6DK1-32E61/38.16, CA6DK1-28E61/38.16. Protection material: aluminum alloy, connection method: left and right side protection and rear protection are bolted, rear protection section size (mm): 120×60, rear protection ground clearance (mm): 480; Maximum density of transport medium: 850 kg/m3 Total tank capacity: 25.6 m3, tank effective capacity Volume: 24.82 cubic meters. Tank dimensions (length × major axis × minor axis (mm): 9000 × 2250 × 1550; Dangerous goods transport vehicle type: FL type; Other instructions: This vehicle is suitable for dangerous goods transportation. Only chassis with radial tires is used. The front wheels of the vehicle are equipped with disc brakes, front exhaust pipes, and tire blowout emergency protection devices are installed on the steering wheels. The rear axle of the vehicle adopts air suspension. The corresponding relationship of vehicle length/wheelbase/front overhang/rear overhang is (mm): 11730/1900+4500+1350/1400/2580. This model is optionally equipped with an ETC on-board device with direct power supply. The cab is optional with the chassis. Optional fire extinguisher style, fenders and door handles. Optional tool box position. |
| Announcement on road transport vehicle compliance |
|
|
| Batch: Batch 67 |
| Product Model | Qualified vehicle number | Product Name | Company Name |
| CL5323GYYLC6 |
| Aluminum alloy oil tanker | Chengli Automobile Group Co., Ltd. |
