Product Name:

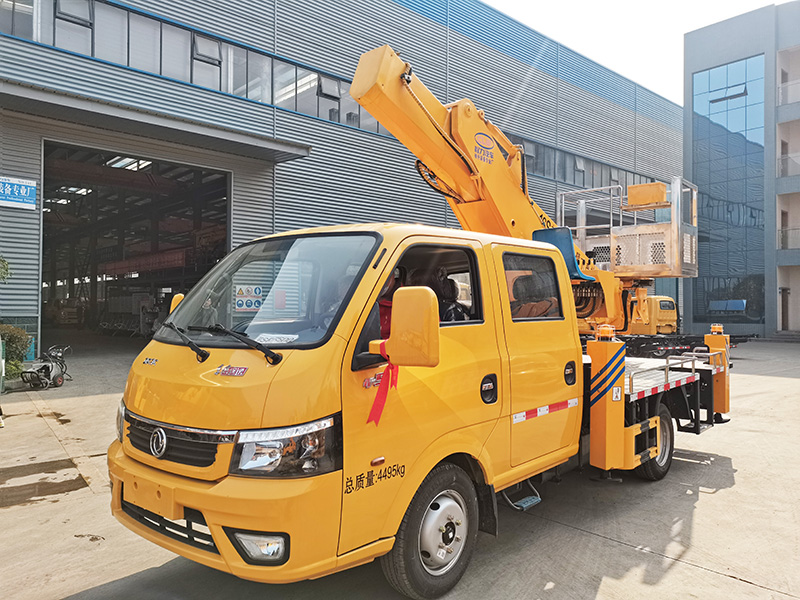

Chengli CL5045JGK6DS aerial work vehicle

Dimensions:

5998×2050×3150(mm)

Emission standard:

National VI

Cargo box size:

××(mm)

Gross Vechile Weight (GVW):

4495(Kg)

Approach/departure angle:

21/12(°)

Rated Payload:

(Kg)

Front/ rear overhang:

1181/1817(mm)

Curb weight:

4170(Kg)

Maximum speed:

110(km/h)

Chassis Parameters

Fuel type:

Diese

Chassis model:

EQ1040D16DC

Number of axles:

2

Front wheel tread:

1369,1387(mm)

Wheelbase:

2800,3000,3200(mm)

Rear wheel tread:

1242,1342,1458(mm)

Number of passengers in the cab:

(people)

Number of springs:

3/5,2/2+1

Number of tires:

6(pcs)

Axle load:

1650/2845

Tire specifications:

185R15LT 8PR,6.00R15 10PR,6.00R15LT 10PR

Engine Parameters

Engine Model:

Engine Manufacturer

Displacement(ml)

Power(kw)/horsepower(PS):

Q23-95E60

Anhui Quanchai Power Co., Ltd.

2300

70/95

Q23-132E60

Anhui Quanchai Power Co., Ltd.

2300

97/131

Q23A-95E60

Anhui Quanchai Power Co., Ltd.

2300

70/95

Other:

1.      The   vehicle is mainly used for high-altitude operations such as emergency repair   of electricity, communications, and street lights. The special devices are   lifting platforms and working arms; the side protection and rear lower   protection device material: Q235, connection method: welding connection; the   cross-sectional dimensions of the rear lower protection device (width × height) (mm): 50 × 100, ground clearance: 380mm; ABS   manufacturer and model: Zhejiang Asia Pacific Electromechanical Co.,   Ltd./APG3550500A, optional ABS manufacturer and model: Xiangyang Dongfeng   Longcheng Machinery Co., Ltd./ABS/ASR-12V-4S/4M; optional direct-powered ETC   on-board device, optional working arm style, working bucket style, turntable   special device control room style, optional rear appearance style, optional   upper appearance style and upper operation style, winch and sensor style.
